Hello!
I acquired my XLT SR last week. Could not be happier so far! I live in MA and purchased the truck out of state. They mentioned there was a minor "battery management recall" that a dealer in my home area could do. When I look up available recalls by my VIN nothing comes up. Is this a thing I should address? I'm seeing one other thread that someone had it done and it helped. But I also am hesitant to bring it to a dealer (especially my first time bringing it to a dealer) for maintenance if I don't have to. Any thoughts? Is it just a software recall? Thanks!
Sponsored



Adventureboy

Well-known member
First Name
Jonathan
Joined
Jan 30, 2023
Threads
1
Messages
666
Reaction score
632
Location
Ontario
Vehicles
2023 F150 Lightning Lariat
CSP 23b70 replaces the small BMS monitor on the negative 12v battery cable right behind the panel in the frunk. In many trucks, this module was under-reporting the 12v SOC causing updates to fail. In my case, I got many warnings the battery was low and the CSP cleaned it up.
It's a very easy job and only takes a few minutes. It takes longer to go through the 12v battery test than changing the BMS module. I would recommend getting it done.


RickLightning

Well-known member
Joined
Jan 17, 2022
Threads
80
Messages
5,024
Reaction score
6,647
Location
SE MI
Vehicles
'22 Lightning ER Lariat,'22 Mach-E Premium 4X
Not a recall...


TaxmanHog

Moderator
Moderator
First Name
Noel
Joined
Jan 19, 2022
Threads
172
Messages
12,403
Reaction score
13,077
Location
SE. Mass.
Vehicles
2022 Lightning Lariat-ER Max Tow & 2024 Harley-Davidson Road Glide CVO-ST
Occupation
Retired

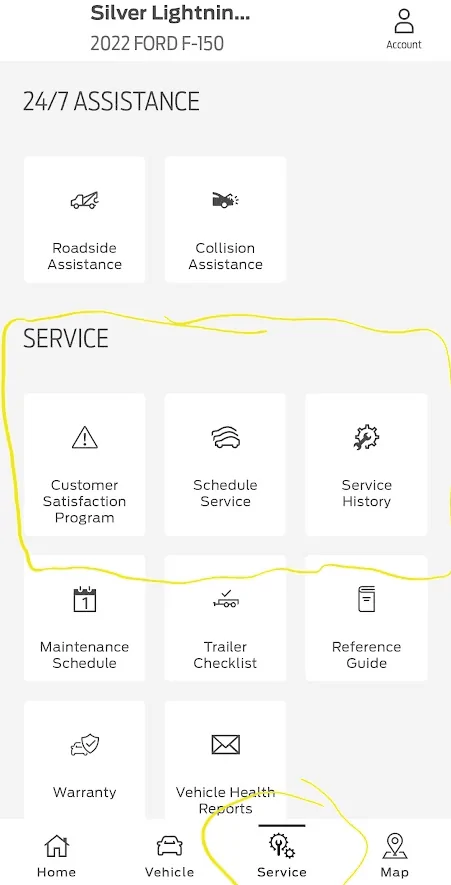

What does your Ford Pass tell you about these concerns?

Look under the Service tab, if there are open Recall's or CSP's the tile(s) will be active under the {Service} section, tap them to review the listed concerns, have them addressed on your next service visit


Ford F-150 Lightning Battery Management Recall 1715170830232-vd


PreservedSwine

Well-known member
Joined
Aug 5, 2023
Threads
25
Messages
312
Reaction score
371
Location
Fort Myers
Vehicles
2023 Lightning
Like the others, I suspect they are referring to the customer service program, and that is likely referring to the low-voltage battery sensor. Unless the person speaking knew your VIN And looked it up, he was really just guessing.
Take a look at your FordPass app, or log into your ford.com account, and see what pops up as taxman suggested


Sponsored

carys98

Well-known member
First Name
Cary
Joined
Jan 15, 2022
Threads
22
Messages
608
Reaction score
886
Location
Raleigh, NC
Vehicles
2023 Lightning Lariat SR

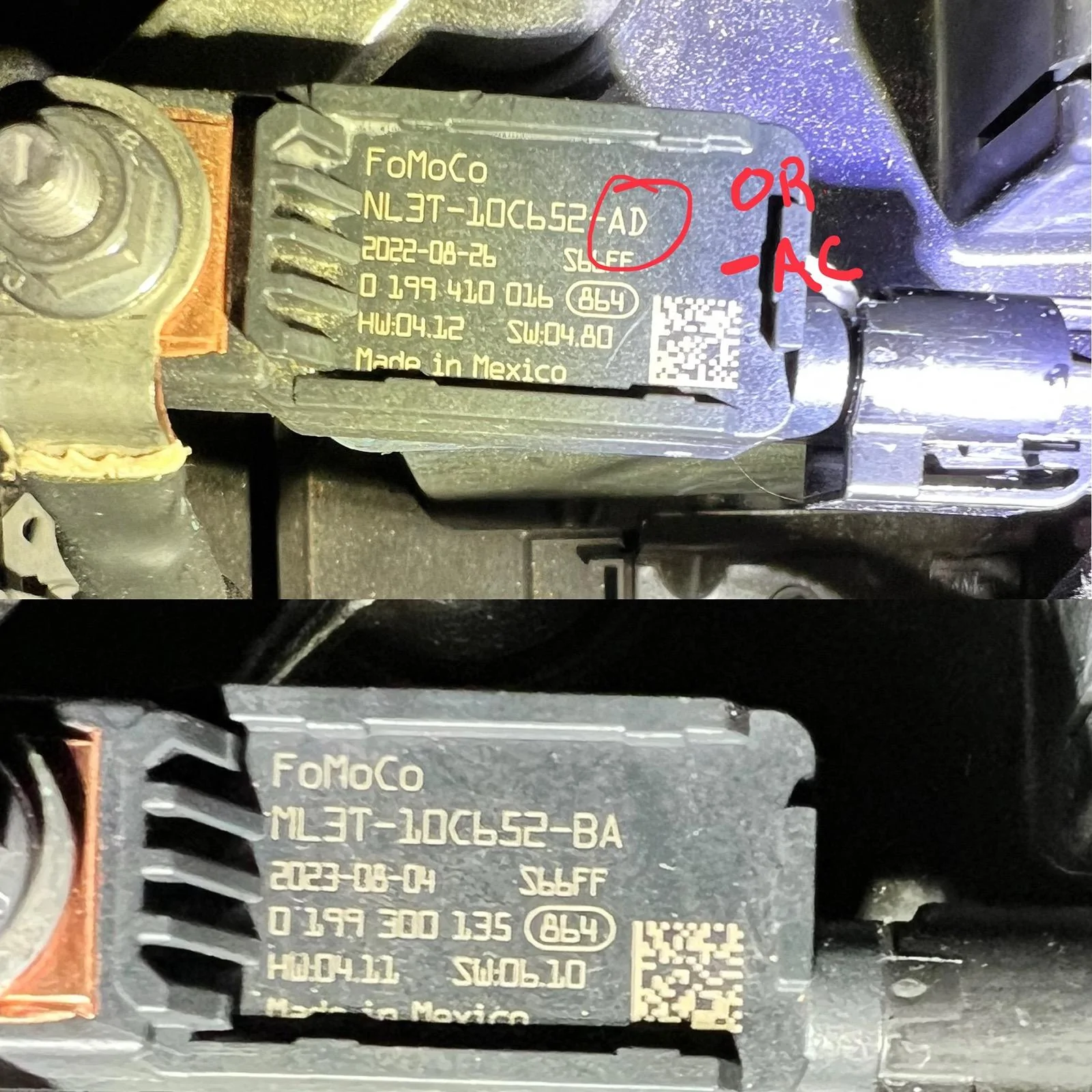

You can also check to see if you have the affected part. Open the battery door at the back of the frunk and look at the part mounted on the negative battery terminal. If the part number matches the top photo it needs to be replaced. The bottom photo is the new unit.

Ford F-150 Lightning Battery Management Recall A113497C-F851-4310-A02C-1C3FB96E532A

OP
OP
samskeys

samskeys

Active member
First Name
Sam
Joined
Apr 21, 2024
Threads
13
Messages
36
Reaction score
34
Location
Medford, MA and Parsonsfield, ME
Vehicles
Ford Lightning XLT 2023 SR Equipment Group 311A
As always, you are all very helpful. It is indeed CSP 23B57 "high voltage battery module replacement and/or battery energy control module becm software update"
And it does look like the part I have currently matches the top photo in the above post. But I'm glad to hear its a simple fix so I shouldn't be nervous having someone do it.
Anything else I should know?


Mmiketa

Well-known member
Joined
Nov 25, 2023
Threads
2
Messages
139
Reaction score
185
Location
USA
Vehicles
Lightning Lariat ER
As always, you are all very helpful. It is indeed CSP 23B57 "high voltage battery module replacement and/or battery energy control module becm software update"
And it does look like the part I have currently matches the top photo in the above post. But I'm glad to hear its a simple fix so I shouldn't be nervous having someone do it.
Anything else I should know?
My local dealer reached out to me about it and schedule a mobile tech to do the work. He finished it in the parking lot while I was at work, took him like 15 minutes. If your local dealer has a mobile option that's the way to go.


carys98

Well-known member
First Name
Cary
Joined
Jan 15, 2022
Threads
22
Messages
608
Reaction score
886
Location
Raleigh, NC
Vehicles
2023 Lightning Lariat SR
As always, you are all very helpful. It is indeed CSP 23B57 "high voltage battery module replacement and/or battery energy control module becm software update"
And it does look like the part I have currently matches the top photo in the above post. But I'm glad to hear its a simple fix so I shouldn't be nervous having someone do it.
Anything else I should know?
The B57 one is usually just a software update that only takes a few minutes. They should be able to do both B57 and B70 in less than half a day. Make sure the dealer has the part for B70 in stock and then schedule them both together.


Zprime29

Well-known member
First Name
Brandon
Joined
Jul 26, 2022
Threads
37
Messages
1,985
Reaction score
2,074
Location
Tucson, AZ
Vehicles
Honda Pilot, 2022 Lightning ER
As always, you are all very helpful. It is indeed CSP 23B57 "high voltage battery module replacement and/or battery energy control module becm software update"
And it does look like the part I have currently matches the top photo in the above post. But I'm glad to hear its a simple fix so I shouldn't be nervous having someone do it.
Anything else I should know?
Note that you have two batteries. The 12v battery is also known at the low voltage battery (LVB) and is the one with the quick fix part swap for the monitor. The other is the main high voltage battery (HVB) and that's the one that moves the truck. The CSP you cited is primarily a software update for the HVB and needs to be done by the dealer. They will then run a battery health test to make sure the modules in the HVB are all happy. The update prevents you from being stranded if a HVB module goes bad in the future by allowing you partial power. In the past, it prevented you from diving at all.
