Bed Cap Wiring - Wiring Brake Light/Signals

Would you tackle this project yourself?

  • Yes

  • Are you crazy?, Nope


Results are only viewable after voting.

cdnphotog

Member
First Name
Greg
Joined
Oct 31, 2024
Threads
2
Messages
12
Reaction score
4
Vehicles
F-150 Lightning Flash
Other than don’t cut any of the orange wires…

I’m about to install the wiring for the rear brake light/signals on my new TUFCAP that is on my new truck - yikes!

I used to just tap into the trailer wiring harness. Now I understand it confuses the truck into thinking there’s a trailer attached.

My new plan is to tap into the wiring harnesses of the tail lights.

I will also run a fused 12 gauge wire from the 12 V accessory battery straight to the accessory box in the cap. That distribution box switches inside and outside LED lights there’s are also USB and 12v accessory taps.

Any comments on potential pitfalls?

How about a route to run the wire from the accessory battery back to the truck bed?

😳

Ford F-150 Lightning Bed Cap Wiring - Wiring Brake Light/Signals IMG_2619

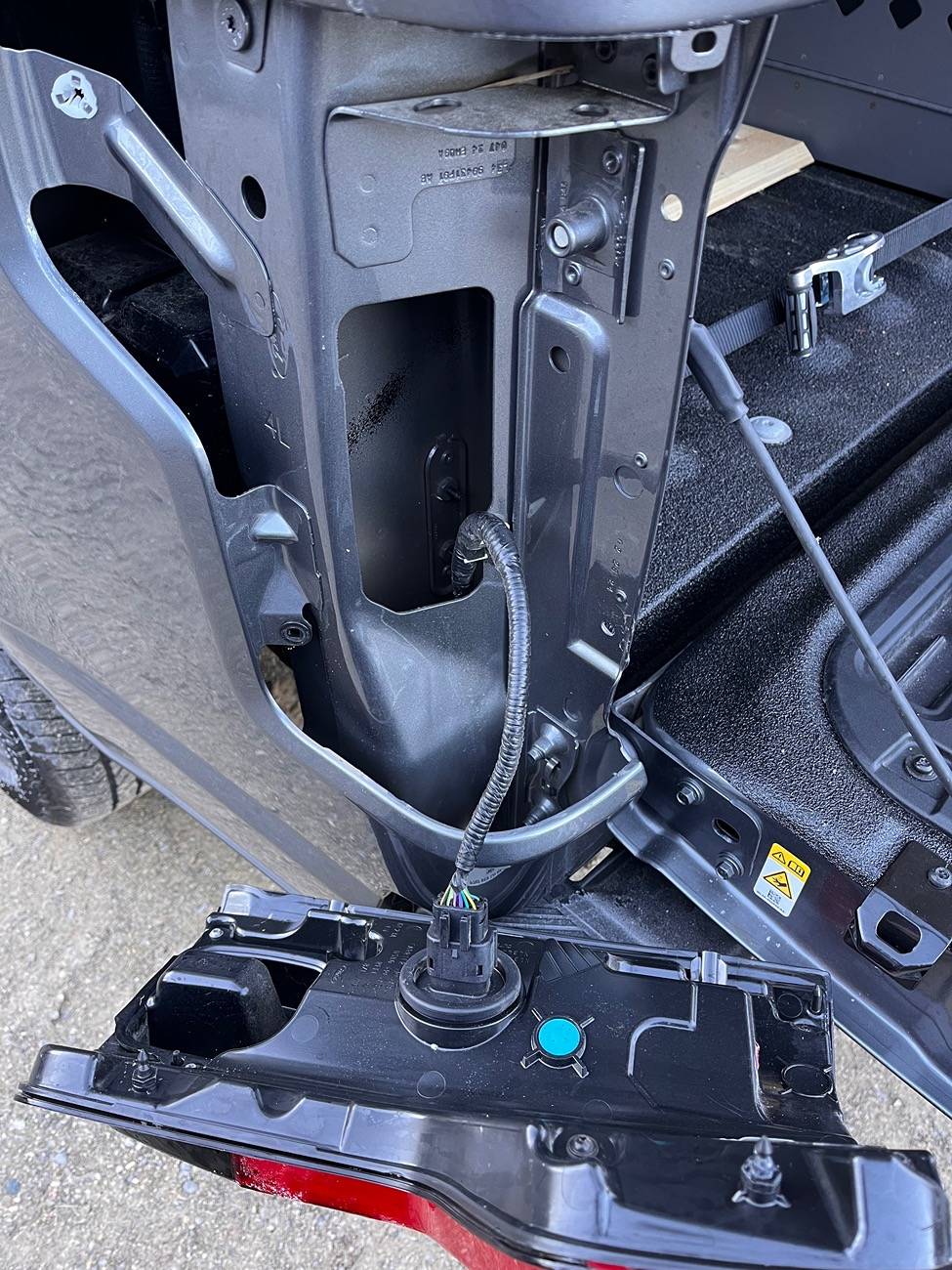

Ford F-150 Lightning Bed Cap Wiring - Wiring Brake Light/Signals IMG_2621


Ford F-150 Lightning Bed Cap Wiring - Wiring Brake Light/Signals IMG_2615


TRCarr

Member
First Name
Tom / TR
Joined
Aug 15, 2024
Threads
1
Messages
7
Reaction score
18
Location
Salmon Idaho now
Vehicles
‘23 Lightning Lariat black
Occupation
Retired
I
Other than don’t cut any of the orange wires…

I’m about to install the wiring for the rear brake light/signals on my new TUFCAP that is on my new truck - yikes!

I used to just tap into the trailer wiring harness. Now I understand it confuses the truck into thinking there’s a trailer attached.

My new plan is to tap into the wiring harnesses of the tail lights.

I will also run a fused 12 gauge wire from the 12 V accessory battery straight to the accessory box in the cap. That distribution box switches inside and outside LED lights there’s are also USB and 12v accessory taps.

Any comments on potential pitfalls?

How about a route to run the wire from the accessory battery back to the truck bed?

😳





installed my SmartCap 3rd rail light. Fuse 15 under dash R of passenger foot well. Works perfectly.

OP
OP

cdnphotog

Member
First Name
Greg
Joined
Oct 31, 2024
Threads
2
Messages
12
Reaction score
4
Vehicles
F-150 Lightning Flash
Thanks!

This "fancy" cap also has a reverse light and signals on it.... Brake light is a must but I would like to access the others too.

I think there's also the "CHMSL" wire but I'm not sure if I need the CHMSL filter harness to use it.... any one know the harnesses function?

Fuse 15 if all that fails!
