Recently charged from 50%to 100% and threw car scanner on it while I did so. Here are the results.


SOC, SOC displayed, and capacity..........................................Module voltage

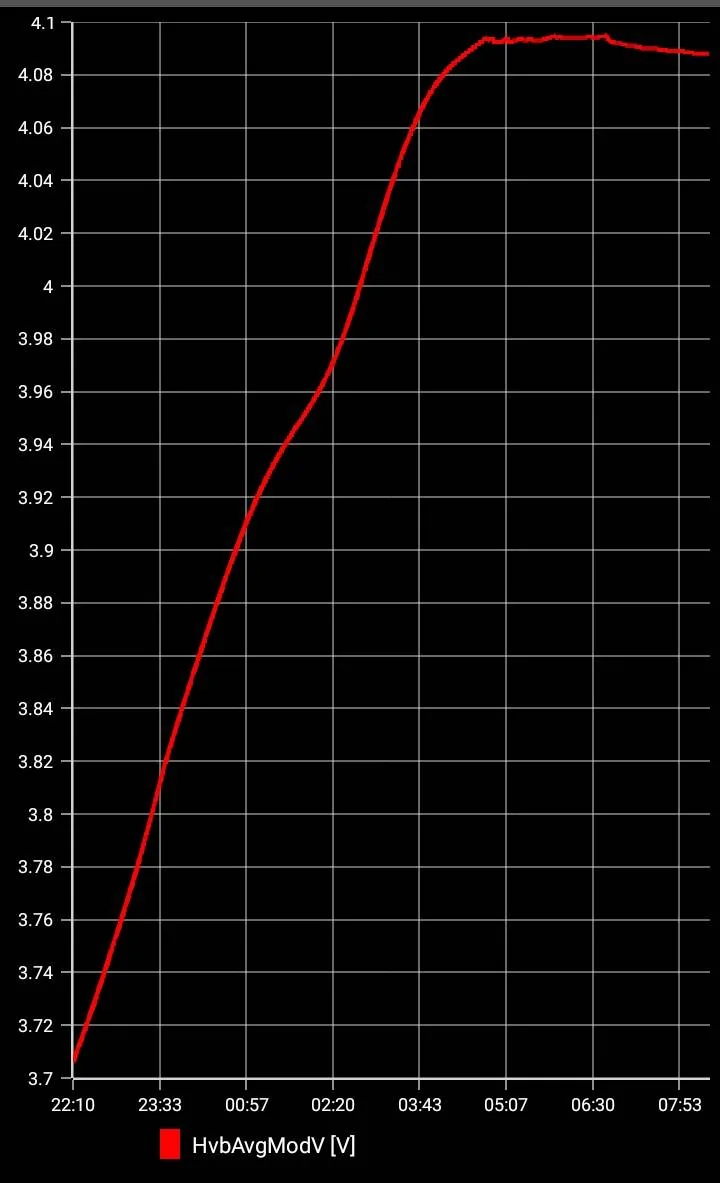

Ford F-150 Lightning Charging to 100% -- voltages, SOC, and capacity Screenshot_20241110-215948

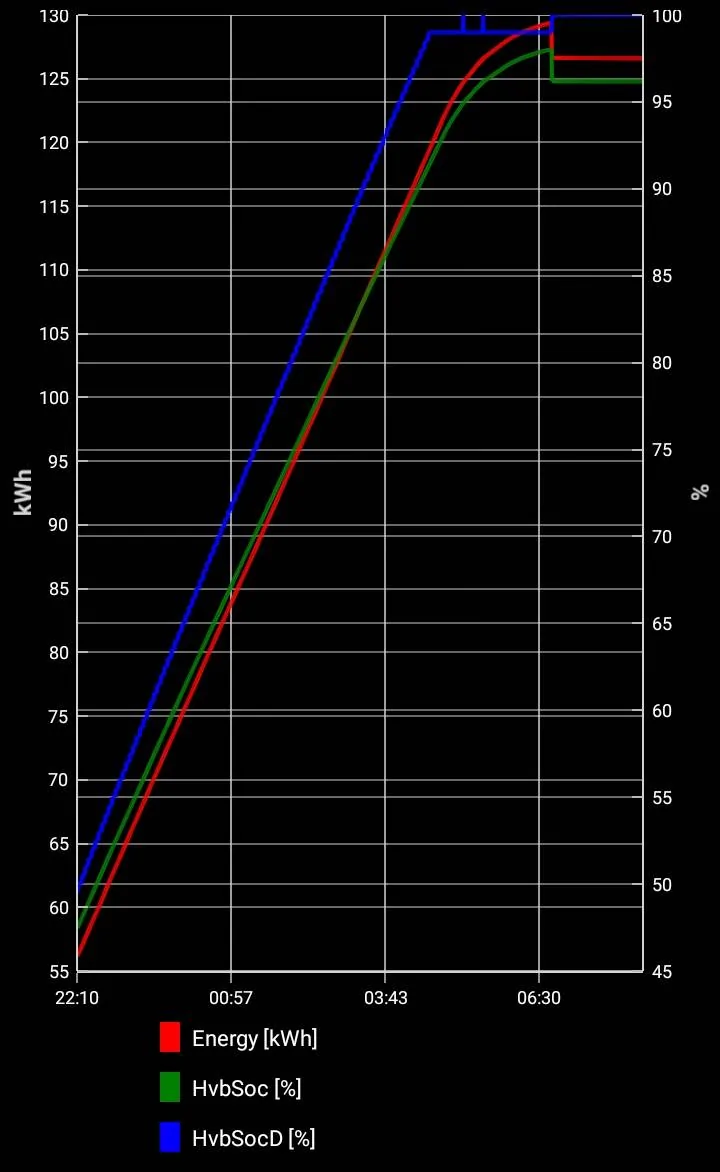

Ford F-150 Lightning Charging to 100% -- voltages, SOC, and capacity Screenshot_20241110-220014


Average module voltage at 100% soc displayed was 4.09v. Considering a 3.0v to 4.2v range for NMC that translates to 90% peak for the chemistry.

Previous charges indicate a module voltage of 4.04v at 90% displayed soc.

So there is some top buffer, but not a huge amount.


Maquis

Well-known member
First Name
Dave
Joined
May 20, 2021
Threads
9
Messages
3,483
Reaction score
4,403
Location
Illinois
Vehicles
2021 Mach-E E4-X; 2023 Lightning Lariat ER
I don’t understand how the kWh can drop while charging? Red curve.

OP
OP
Firn

Firn

Well-known member
Joined
Aug 26, 2024
Threads
9
Messages
274
Reaction score
251
Location
USA
Vehicles
23 Pro ER
I don’t understand how the kWh can drop while charging? Red curve.
I'm not sure either. It happens at the same time that the truck reached "100%" so I'm assuming it is related to the charger turning off. I'll pull the voltages here when I can.

OP
OP
Firn

Firn

Well-known member
Joined
Aug 26, 2024
Threads
9
Messages
274
Reaction score
251
Location
USA
Vehicles
23 Pro ER
There was around a 1v drop in pack voltage at the time the charger stopped, this is also the exact time the capacity dropped.

Looking quickly at the data and it appears 1v change in pack voltage while charging does corelate to that amount of energy.

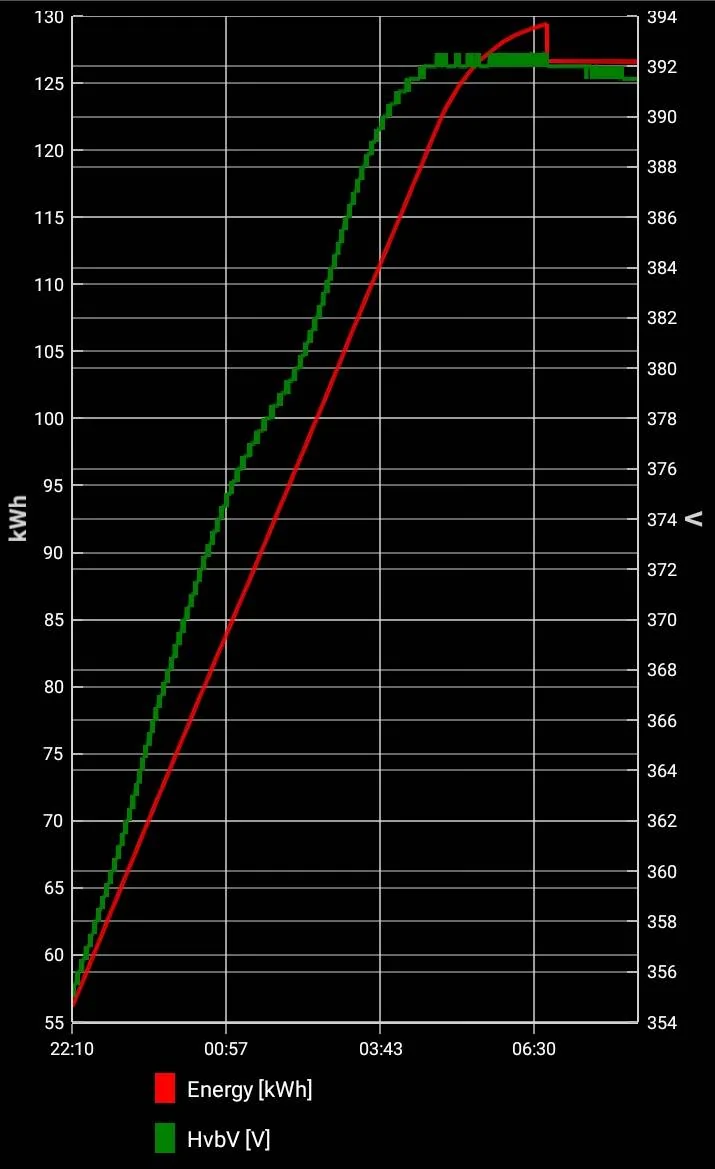

Ford F-150 Lightning Charging to 100% -- voltages, SOC, and capacity Screenshot_20241111-123442


Sponsored

Jim Lewis

Well-known member
First Name
Jim
Joined
Jan 10, 2023
Threads
41
Messages
822
Reaction score
689
Location
San Antonio, TX
Vehicles
Honda Accord 2017; 2023 Lariat ER
Occupation
Retired
IIRC, the total real capacity of an ER battery is 143 kWh, with some buffer at the top and bottom of the real range. Your avatar shows a snowy environment. There are not too many trees on the North Slope, but maybe the temperature of your charging experiments is an important parameter to keep track of, especially in comparing similar experiments done at different times of year, different truck mileages, etc.

OP
OP
Firn

Firn

Well-known member
Joined
Aug 26, 2024
Threads
9
Messages
274
Reaction score
251
Location
USA
Vehicles
23 Pro ER
IIRC, the total real capacity of an ER battery is 143 kWh, with some buffer at the top and bottom of the real range. Your avatar shows a snowy environment. There are not too many trees on the North Slope, but maybe the temperature of your charging experiments is an important parameter to keep track of, especially in comparing similar experiments done at different times of year, different truck mileages, etc.

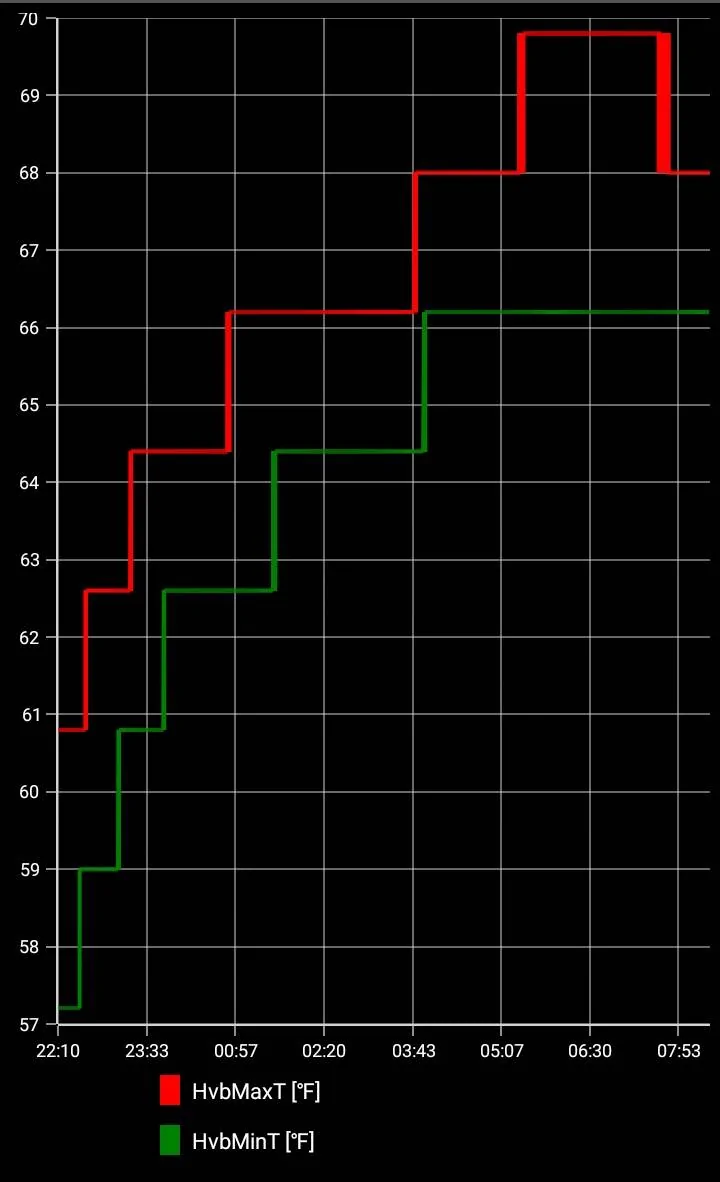

Ford F-150 Lightning Charging to 100% -- voltages, SOC, and capacity Screenshot_20241112-070734


The "top buffer" was ultimately my reason for doing this. That top buffer is nothing more than limiting the maximum voltage.

Pack voltage was 392v with a cell voltage of 4.09v at 100% displayed SOC. Assuming a 3.0v minimum voltage, and running the cells out to 4.2v per cell, would give you and overall capacity of ~139kwh, or very close to the label capacity.


Maquis

Well-known member
First Name
Dave
Joined
May 20, 2021
Threads
9
Messages
3,483
Reaction score
4,403
Location
Illinois
Vehicles
2021 Mach-E E4-X; 2023 Lightning Lariat ER
There was around a 1v drop in pack voltage at the time the charger stopped, this is also the exact time the capacity dropped.

Looking quickly at the data and it appears 1v change in pack voltage while charging does corelate to that amount of energy.
The drop in voltage is likely causing the energy graph to drop, but only because the algorithm to determine SoC uses pack voltage. In reality, the stored energy did not go down.


chl

Well-known member
First Name
CHRIS
Joined
Dec 16, 2022
Threads
6
Messages
904
Reaction score
486
Location
alexandria virginia
Vehicles
2001 FORD RANGER, 2023 F-150 LIGHTNING
Why does battery voltage drop after charging?

This is often the normal behavior of the cell. A cell's voltage will rise when it is being charged and will begin to drop somewhat after the charge current has been removed. This is a result of many factors, but primarily due to internal resistance of the cell and the charge characteristics of the chemistry.

https://www.orionbms.com/troubleshooting/cell-voltages-drop-charge-completes/

So the drop does appear to be when the charger turned off.


Hammick

Well-known member
Joined
Jun 21, 2023
Threads
8
Messages
337
Reaction score
402
Location
Kansas City, Missouri
Vehicles
2022 F150 Lightning Lariat ER
Why does battery voltage drop after charging?

This is often the normal behavior of the cell. A cell's voltage will rise when it is being charged and will begin to drop somewhat after the charge current has been removed. This is a result of many factors, but primarily due to internal resistance of the cell and the charge characteristics of the chemistry.

https://www.orionbms.com/troubleshooting/cell-voltages-drop-charge-completes/

So the drop does appear to be when the charger turned off.
Yep. I have the Orion Jr.2 BMS controlling our off grid battery bank and the voltages drop exactly as stated in that article. Our cells are 272ah Lishen LifeP04s.


Sponsored

chl

Well-known member
First Name
CHRIS
Joined
Dec 16, 2022
Threads
6
Messages
904
Reaction score
486
Location
alexandria virginia
Vehicles
2001 FORD RANGER, 2023 F-150 LIGHTNING
Yep. I have the Orion Jr.2 BMS controlling our off grid battery bank and the voltages drop exactly as stated in that article. Our cells are 272ah Lishen LifeP04s.
I learned a lot about batteries when studying for my EE in the 1980's.

But I have to say I also learned a lot of more practical stuff since then, from my own experience with owning an EV (2012 Nissan Leaf) since December 2011, and from the many experienced people on these forums.

A great resource.

OP
OP
Firn

Firn

Well-known member
Joined
Aug 26, 2024
Threads
9
Messages
274
Reaction score
251
Location
USA
Vehicles
23 Pro ER
A few more images showing the relation between module voltage and soc displayed, and "energy to empty"

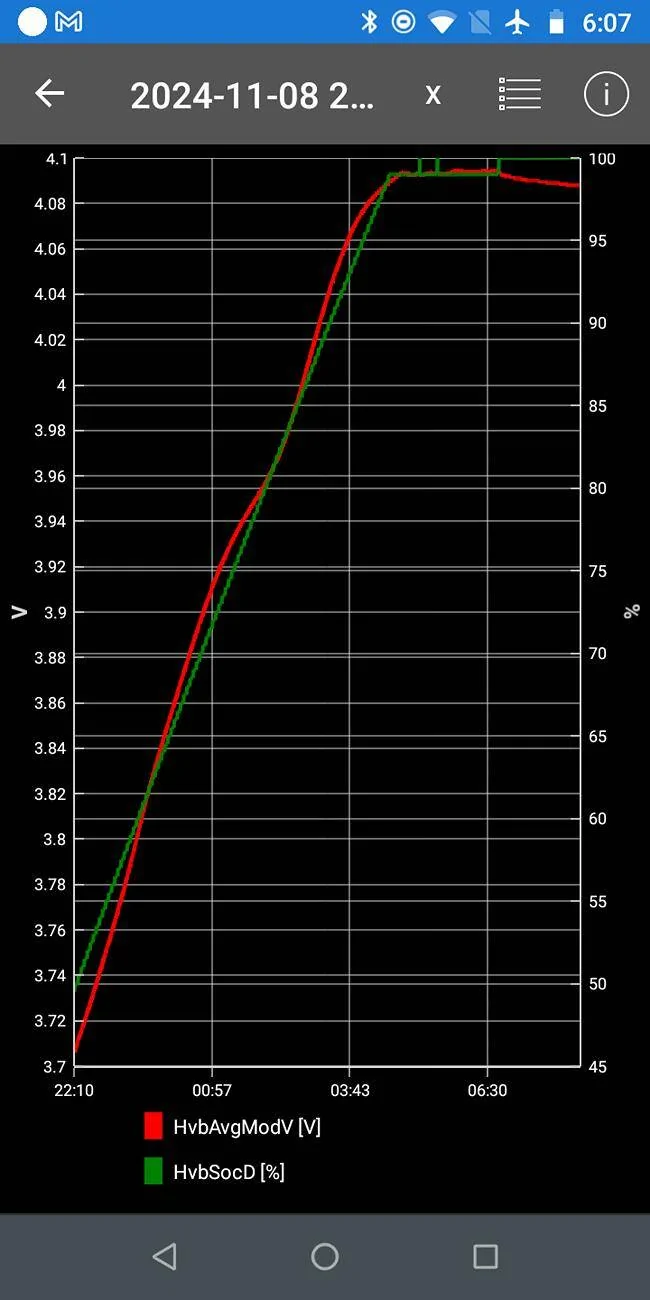

Ford F-150 Lightning Charging to 100% -- voltages, SOC, and capacity Screenshot_20241118-180754

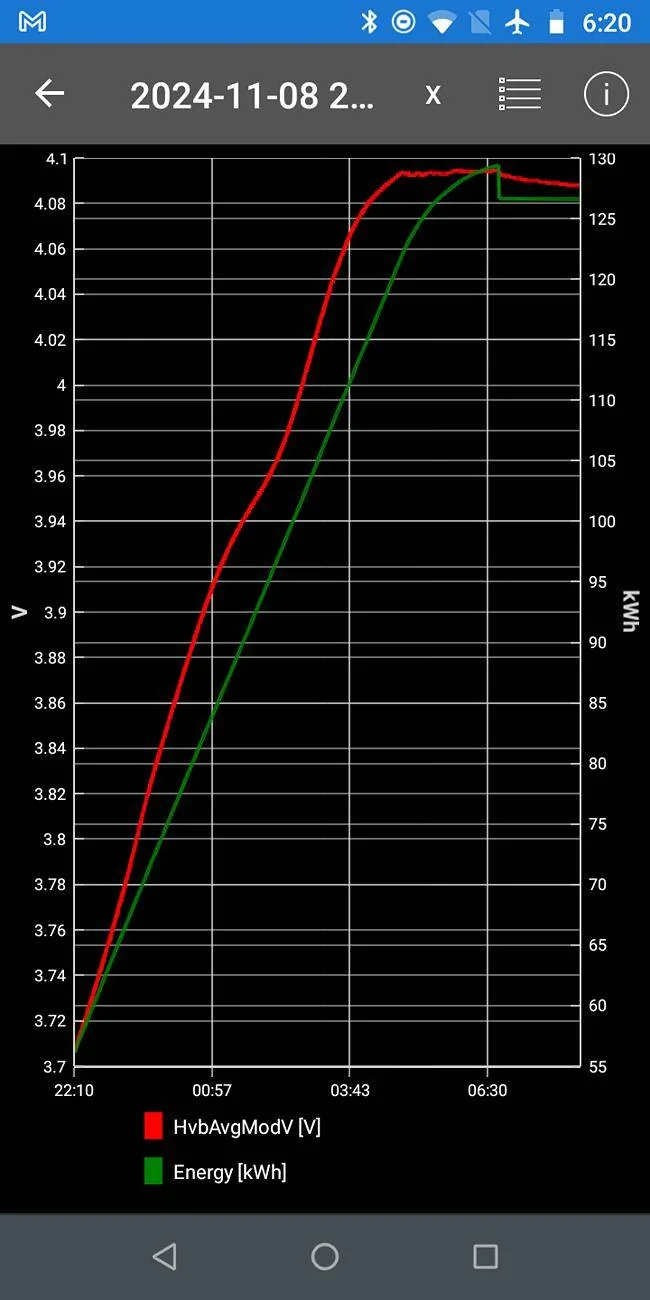

Ford F-150 Lightning Charging to 100% -- voltages, SOC, and capacity Screenshot_20241118-182130

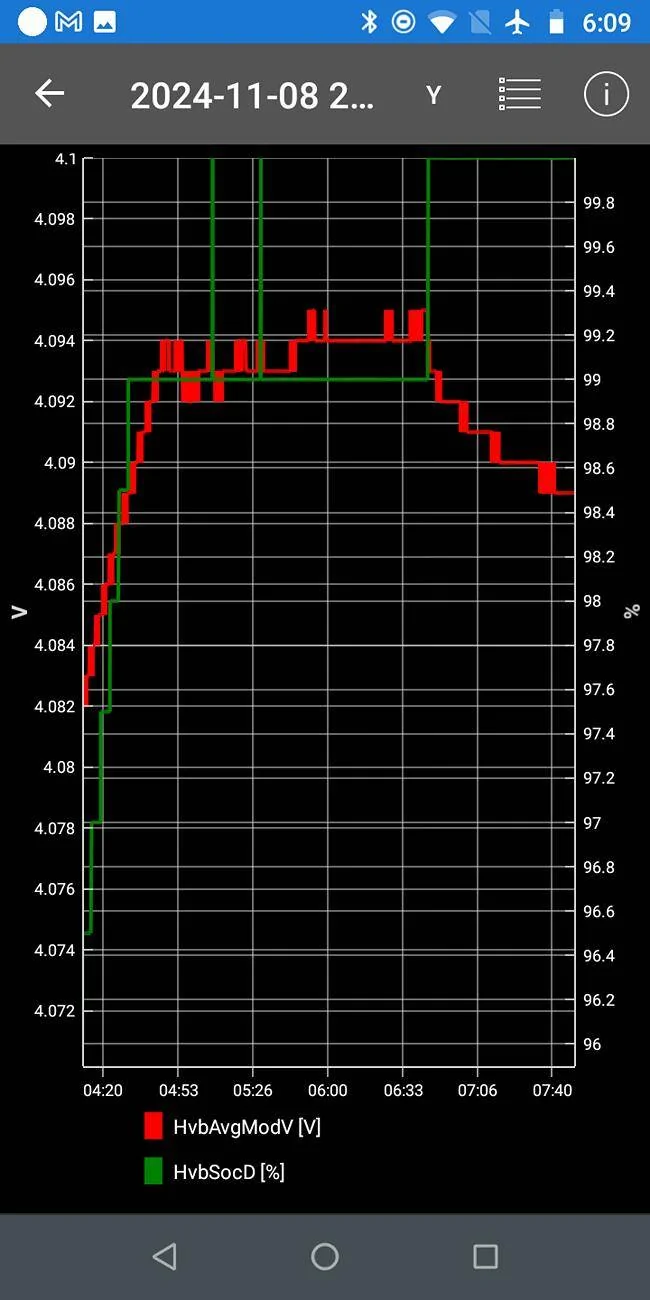

Ford F-150 Lightning Charging to 100% -- voltages, SOC, and capacity Screenshot_20241118-180959

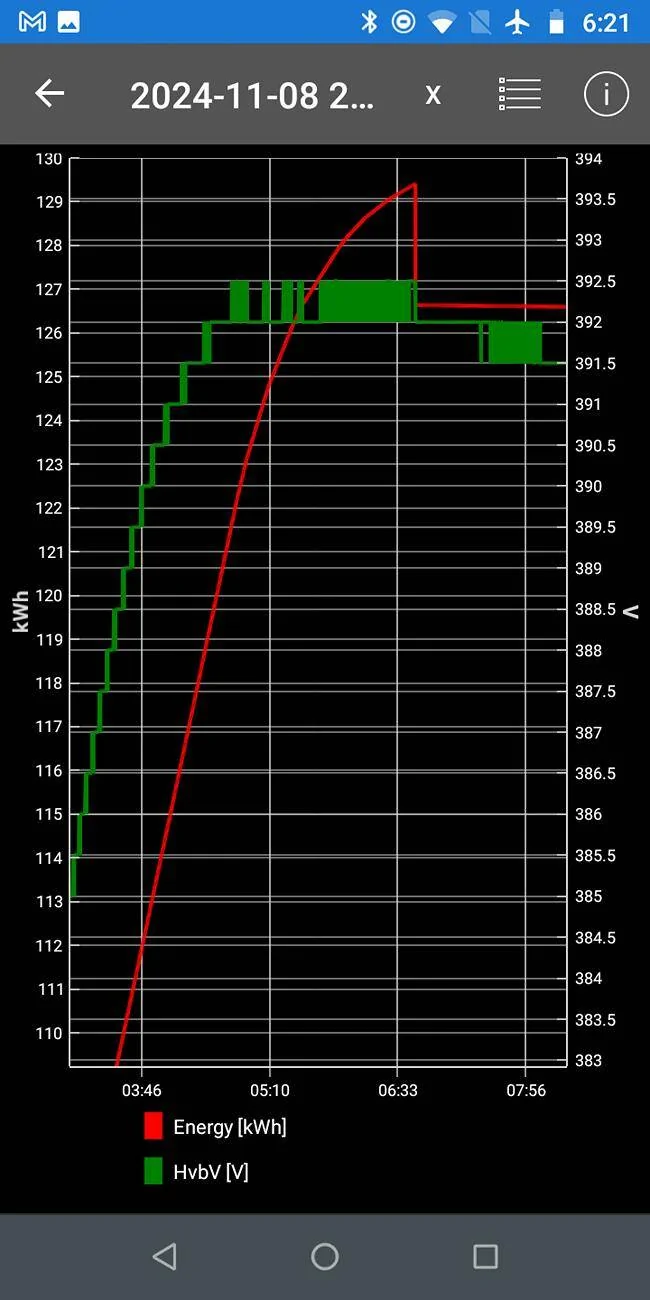

Ford F-150 Lightning Charging to 100% -- voltages, SOC, and capacity Screenshot_20241118-182004


Shawnson

Well-known member
Joined
Sep 11, 2023
Threads
1
Messages
168
Reaction score
134
Location
Edmonton
Vehicles
Lightning Lartiat ER, Model 3 LR, Crosstrek… hehe
Occupation
Developer
I don’t understand how the kWh can drop while charging? Red curve.
It’s just graph plotting. (No data)


MickeyAO

Well-known member
First Name
Mickey
Joined
Apr 2, 2020
Threads
26
Messages
1,050
Reaction score
2,094
Location
San Antonio Tx
Vehicles
Rapid Red Lightning Lariat ER, Kia EV6 GT-Line AWD
Occupation
Retired Lab Manager of the Energy Storage Technology Center
I don’t understand how the kWh can drop while charging? Red curve.
W = I x V. As you hit Vmax, the current will drop, thus the drop in W.

BTW, the effects of charging to 100% graphs MAY be dropping tomorrow :wink:
