FCSP Charging Stats

ericpullen

Well-known member
First Name
Eric
Joined
Jan 4, 2022
Threads
27
Messages
211
Reaction score
403
Location
Louisville, KY
Vehicles
22 F-150 Lightning & 22 Mach-E
I just got the FCSP installed and didn’t see anywhere in either app the ability to see the amps that it is drawing when plugged in. Is this somewhere I’m missing?
Sponsored


OP
OP
ericpullen

ericpullen

Well-known member
First Name
Eric
Joined
Jan 4, 2022
Threads
27
Messages
211
Reaction score
403
Location
Louisville, KY
Vehicles
22 F-150 Lightning & 22 Mach-E

FlasherZ

Well-known member
Joined
Mar 10, 2022
Threads
9
Messages
914
Reaction score
1,017
Location
St. Louis Metro
Vehicles
F-150 Lightning, Tesla Model X, F250 SD diesel 6.0
I haven't been able to find anything.

The FCSP runs on an adaptation of Siemens' Versicharge SG.

The only way we've been able to see the charging current is by using OBD information from the truck.


Firestop

Well-known member
First Name
Firestop
Joined
May 6, 2022
Threads
13
Messages
1,031
Reaction score
994
Location
Oregon
Vehicles
2022 F-150 L Lariat ER; Honda Accord Touring
After the …68… software update, I remember reading others no longer could access their charging history when using the FCSP…..me too. Is that the case for others?


FlasherZ

Well-known member
Joined
Mar 10, 2022
Threads
9
Messages
914
Reaction score
1,017
Location
St. Louis Metro
Vehicles
F-150 Lightning, Tesla Model X, F250 SD diesel 6.0
After the …68… software update, I remember reading others no longer could access their charging history when using the FCSP…..me too. Is that the case for others?

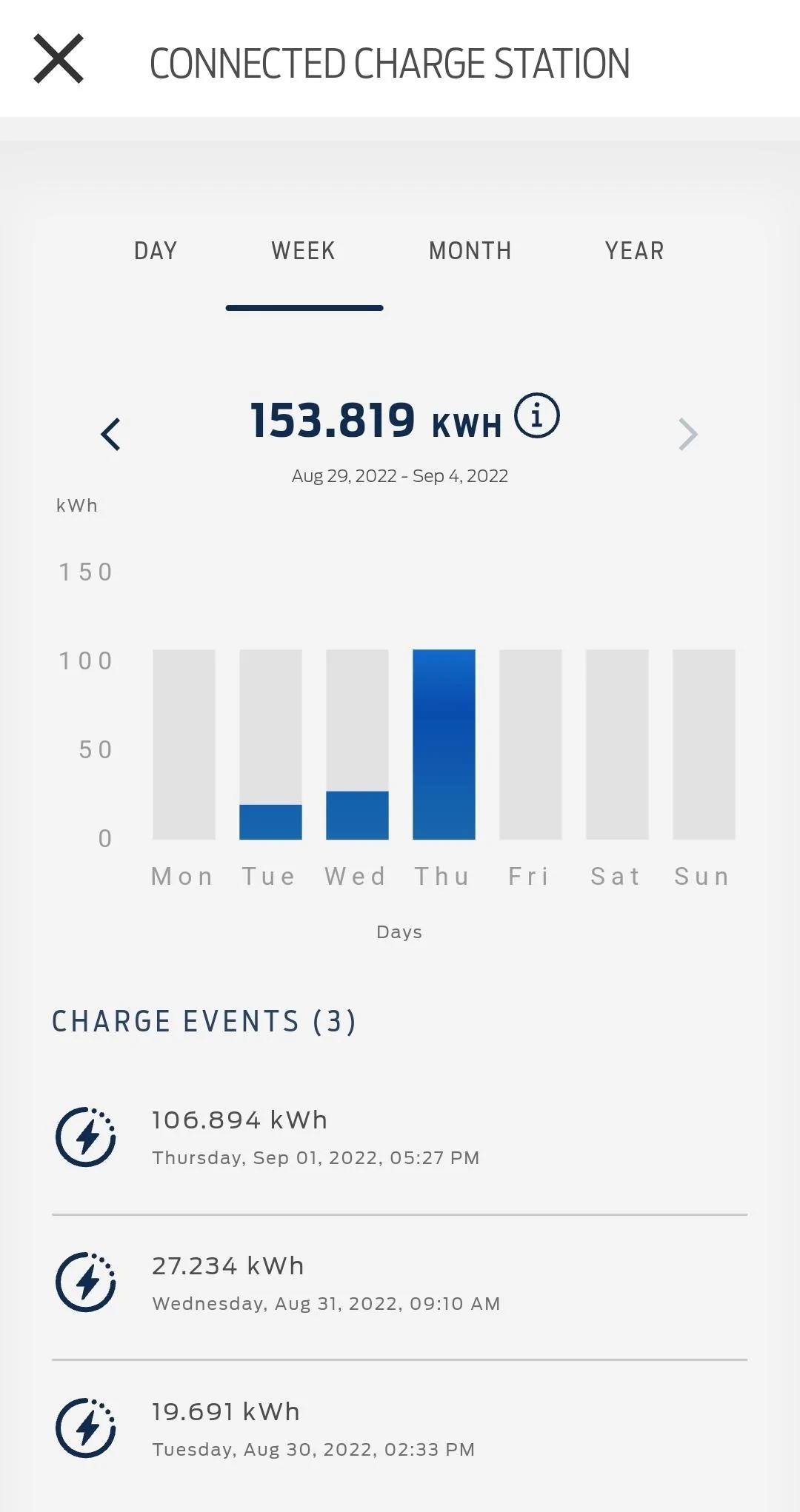

Mine uploads its data and I can see it for past days.

Ford F-150 Lightning FCSP Charging Stats Screenshot_20220902-004106_FordPass


Sponsored

Firestop

Well-known member
First Name
Firestop
Joined
May 6, 2022
Threads
13
Messages
1,031
Reaction score
994
Location
Oregon
Vehicles
2022 F-150 L Lariat ER; Honda Accord Touring

ziptbm

Well-known member
Joined
Jan 4, 2023
Threads
7
Messages
72
Reaction score
33
Location
Michigan
Vehicles
'22 MME GT & '22 F150 Lightning Lariat ER

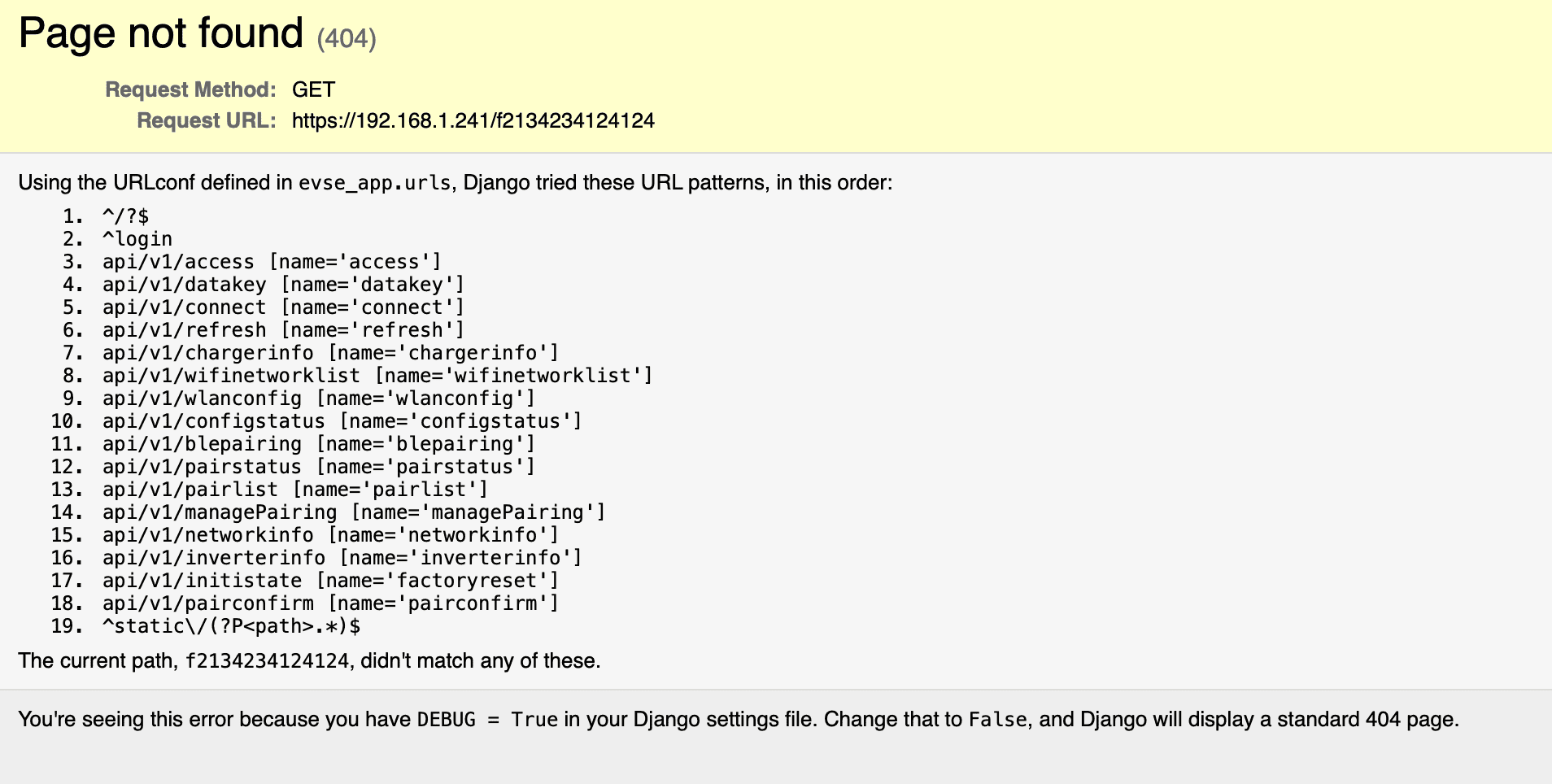

Poking around the unit, I got it to respond to a few commands:
https://192.168.1.241/f2134234124124
This gives me a rundown of some of the API's that it might respond to.
Screen Shot 2022-09-01 at 8.03.06 PM.png

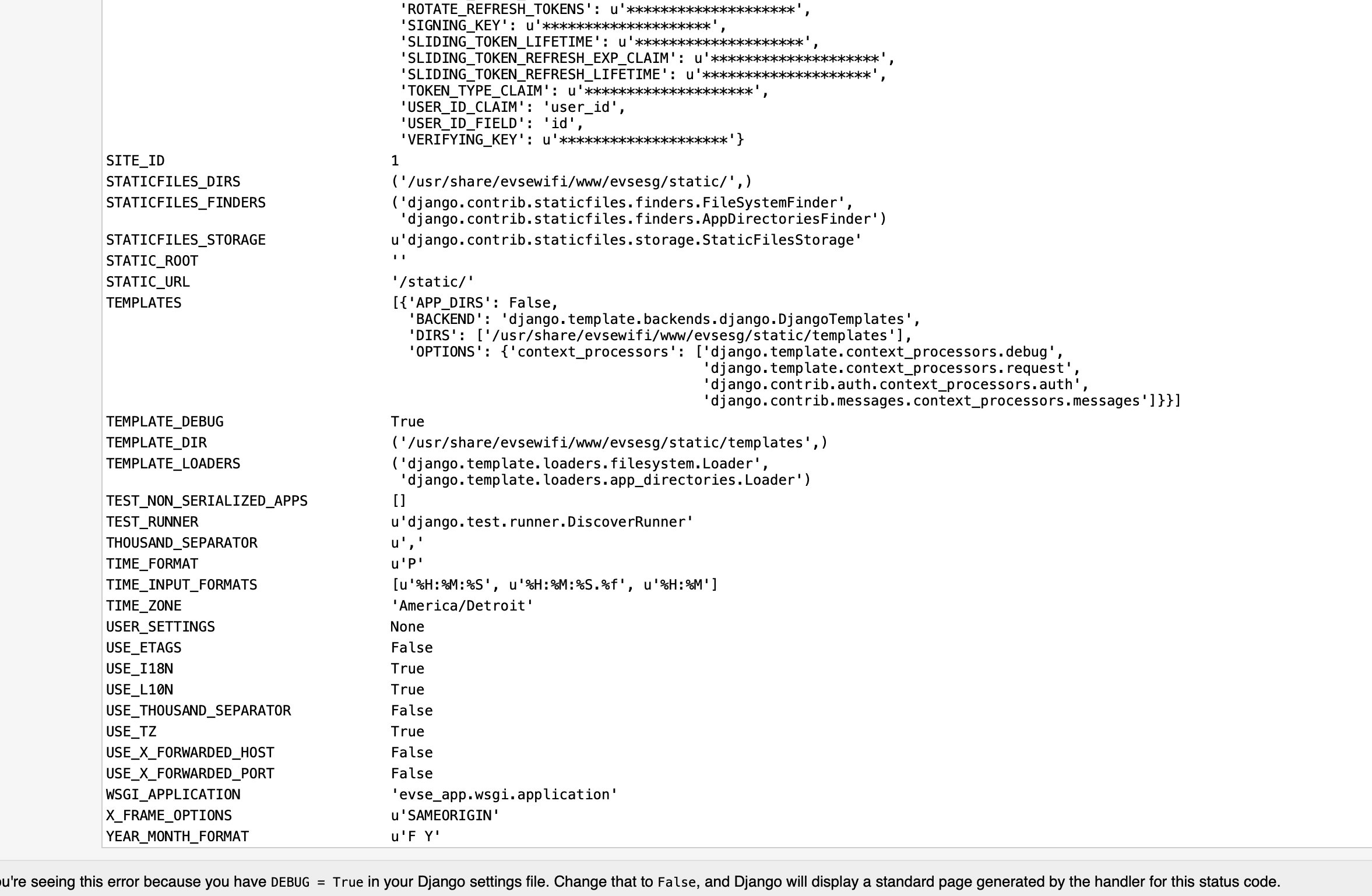

https://192.168.1.241/api/v1/chargerinfo gives this Django error:
Screen Shot 2022-09-01 at 8.03.39 PM.png

But also tells me other pathnames of the embedded system, which looks to be this reference design:https://www.ti.com/tool/TIDC-EVSE-WIFI

I'll keep digging in to see what else I can get it to respond to.
I've been going in circles of research trying to find a way to get the real-time charging data from this unit into Home Assistant, and finally stumbled upon this same error. I've also gone down the OCPP route in hopes there'd be a solution, but keep running into dead-ends.

It looks like port 22 on the device is open, so I'm wondering if there may be some standard credentials for this unit that will enable this access or something via SSH. My Station ID and access code do not work for this.

@ericpullen Have you found anything else since your last post on this?

OP
OP
ericpullen

ericpullen

Well-known member
First Name
Eric
Joined
Jan 4, 2022
Threads
27
Messages
211
Reaction score
403
Location
Louisville, KY
Vehicles
22 F-150 Lightning & 22 Mach-E
No, I got sidetracked on other projects and haven’t really looked at it much more. My last point was starting to sniff the traffic between the FCSP and the internet to see if I could at least see the api endpoints it is sending data out to, but it was all encrypted and couldn’t gather much without some kind of MITM to decode the traffic.


TheHey

Member
First Name
Jon
Joined
Nov 16, 2022
Threads
0
Messages
5
Reaction score
1
Location
Ontario, Canada
Vehicles
2023 F-150 Lightning Lariat ER
Occupation
Geologist
Mine uploads its data and I can see it for past days.

Does your charge history only log once the cable is unplugged from the vehicle? We have TOU pricing here in Ontario, so if the vehicle starts charging at 7PM, and is finished by 8PM, but I don't unplug it until say 9 AM the next day, it doesn't show any charging until the period immediately preceding being unplugged, even though the electricity was actually delivered the night before.


data003

Well-known member
Joined
Jan 23, 2022
Threads
9
Messages
213
Reaction score
205
Location
Maine
Vehicles
2022 F-150 Lightning Lariat ER
Occupation
Computer Nerd
Does your charge history only log once the cable is unplugged from the vehicle? We have TOU pricing here in Ontario, so if the vehicle starts charging at 7PM, and is finished by 8PM, but I don't unplug it until say 9 AM the next day, it doesn't show any charging until the period immediately preceding being unplugged, even though the electricity was actually delivered the night before.
That seems consistent from what I’ve observed. The level of detail in the data in pretty disappointing.
