Anyone install a Putco WORK Blade on their F150? The installation instructions suck and there's nothing on the internet anywhere or YouTube.
Sponsored



Framer

New member
Joined
Dec 21, 2021
Threads
0
Messages
2
Reaction score
4
Location
Toronto Ontario
Vehicles
2021 f150 xlt 302a
Same here, just got mine delivered 2 days ago. 60inch. there is a tailgate bracket between tail gate & step. Anyone know if i can remove & get rid of the bracket?


Fredm2002

Well-known member
First Name
Fred
Joined
Mar 21, 2020
Threads
0
Messages
133
Reaction score
22
Location
Iowa
Vehicles
21 Platinum Antimatter Blue; 2018 Edge 1984 V-65
Occupation
Education
Curious to hear more about the install. Would love to get one, if better install instructions.


Framer

New member
Joined
Dec 21, 2021
Threads
0
Messages
2
Reaction score
4
Location
Toronto Ontario
Vehicles
2021 f150 xlt 302a
I just done installing my 60 inch blade. Wasn't easy to figure all those wire out. But i end up pay 72 hr subscription from motorcraft to get the wiring diagram of tail light.

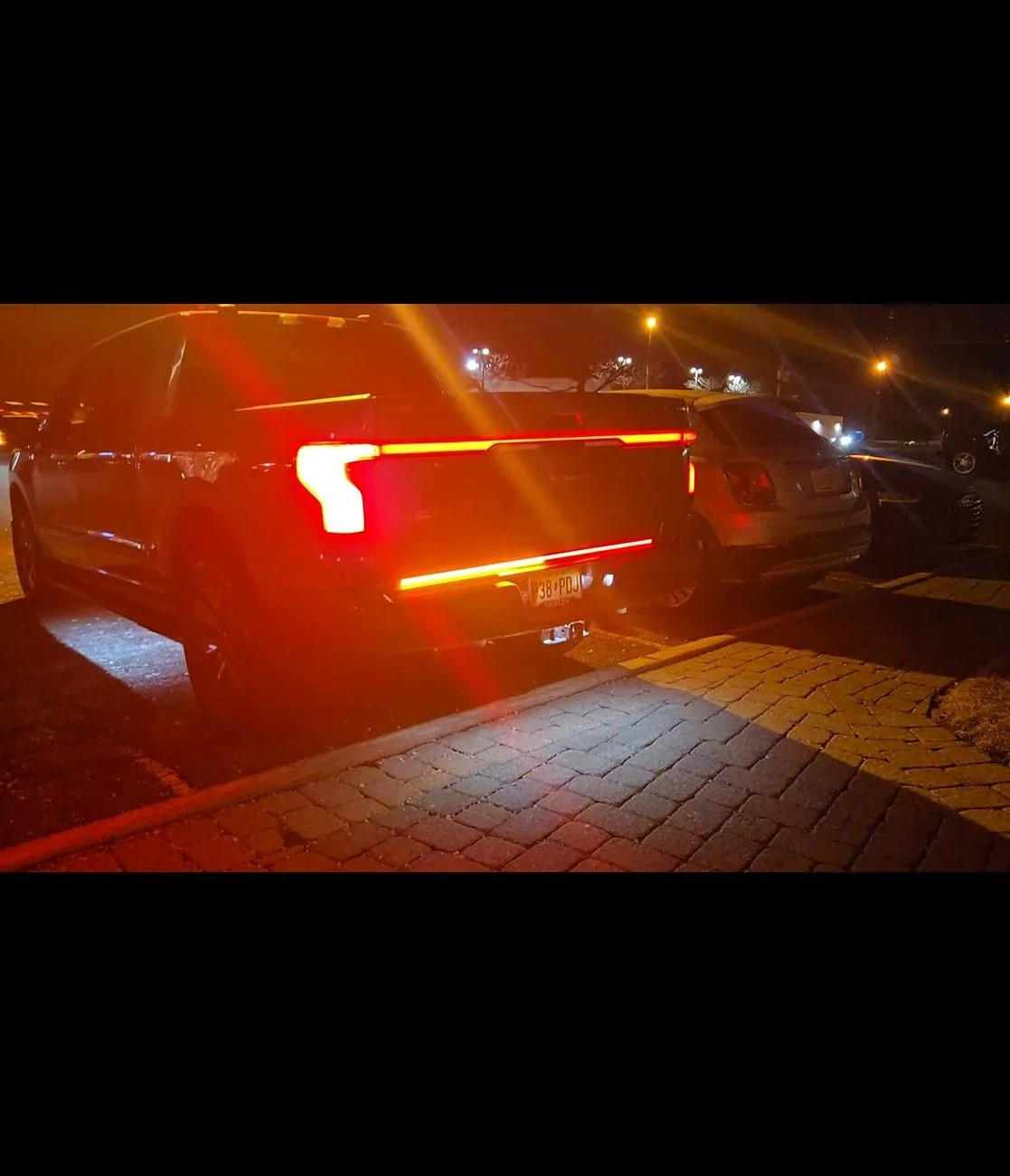

Ford F-150 Lightning PUTCO WORK BLADE LED BAR INSTALLATION 0f8180bd68012b8f05f1911e084a728

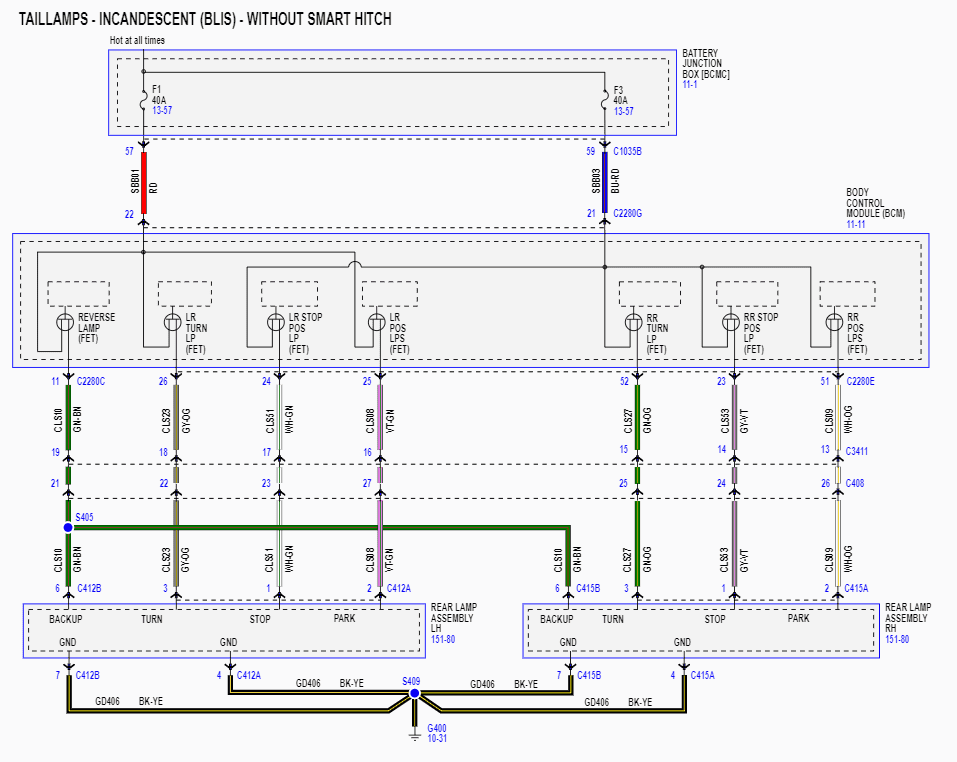

I will attach the wiring diag

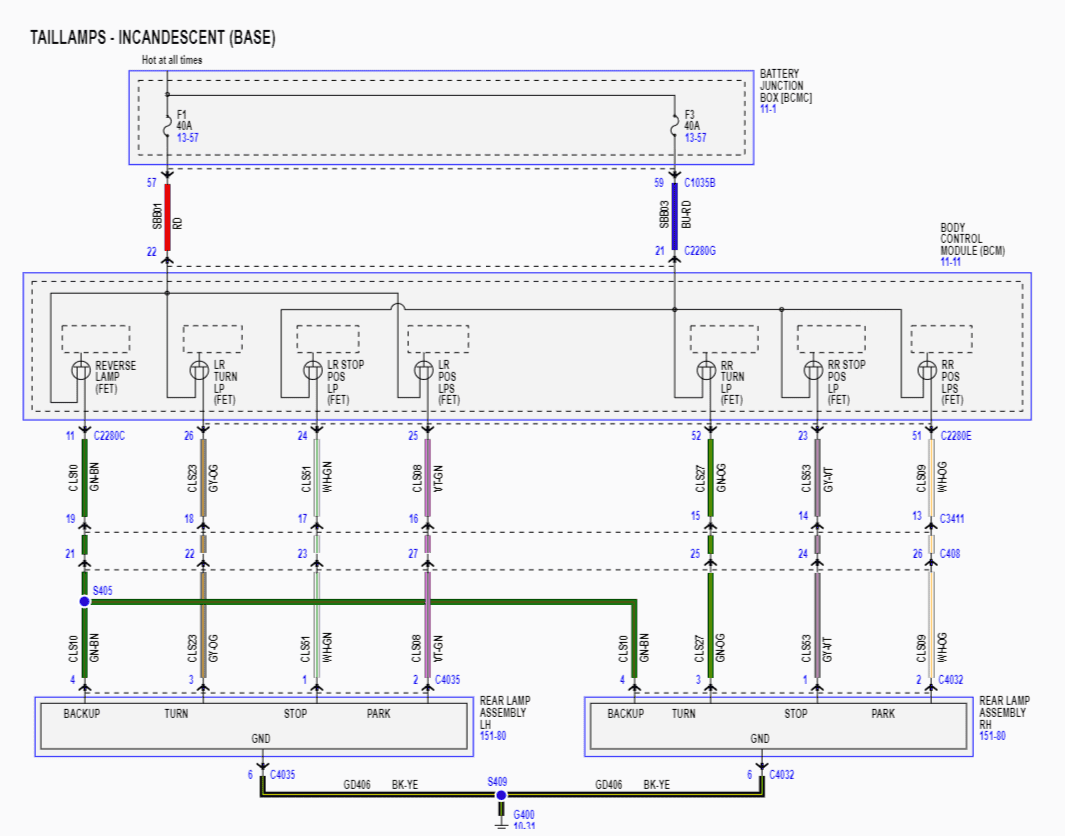

Ford F-150 Lightning PUTCO WORK BLADE LED BAR INSTALLATION 0997b54a728b3fbee19a7e5146a31c8

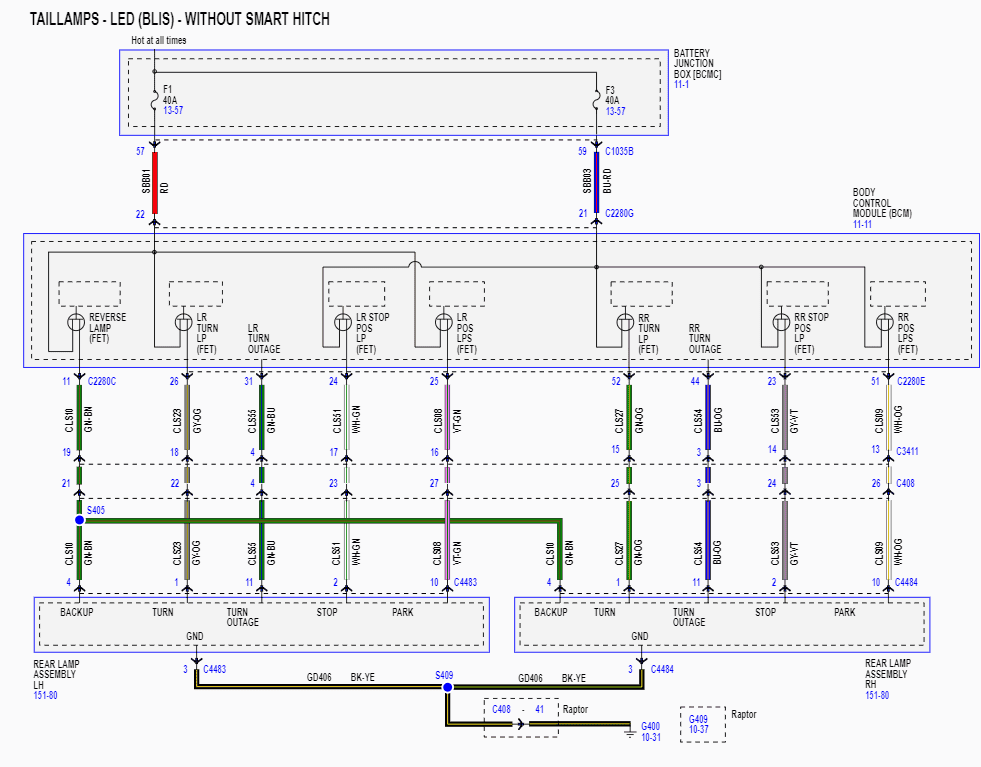

Ford F-150 Lightning PUTCO WORK BLADE LED BAR INSTALLATION fe2698e126eb0607a9754799ccef8ef
ram here. And take what you need. Just be sure to tap your light bar brown wire to Park wire, not Stop wire.

I did not take power from 7 pin trailer wiring, i just don't wanna squeeze myself into the wheel well to do the bridging. Instead, i run power from my Amp behind my backseat, and grounded to closest.

End result is super. It worth a try.


jredondox

Well-known member
First Name
Jorge
Joined
Feb 12, 2021
Threads
5
Messages
295
Reaction score
424
Location
San Diego, CA
Vehicles
2021 F150
Which putco part number did you guys get?


Sponsored

GDN

Well-known member
First Name
Greg
Joined
Feb 15, 2022
Threads
83
Messages
2,812
Reaction score
3,221
Location
Dallas, TX
Vehicles
Lightning Lariat ER, Performance Y
Occupation
IT
Which putco part number did you guys get?
You may not get a response on this forum from these guys. This thread is a carryover from the ICE forum we were split off of. check out f150gen14.com - you'll find the thread over there.


jredondox

Well-known member
First Name
Jorge
Joined
Feb 12, 2021
Threads
5
Messages
295
Reaction score
424
Location
San Diego, CA
Vehicles
2021 F150
You may not get a response on this forum from these guys. This thread is a carryover from the ICE forum we were split off of. check out f150gen14.com - you'll find the thread over there.
Good to know 😉


PungoteagueDave

Well-known member
First Name
Dave
Joined
Feb 20, 2021
Threads
3
Messages
965
Reaction score
900
Location
33435
Vehicles
Tesla MX, Porsche C4S, Ford F-350 KR, Ford F-150 K
Occupation
retired
Which putco part number did you guys get?
There is NO Putco blade that will work with the Lightning yet. They are actively working on a version specifically for our trucks and hope to release it next month according to a phone conversation that I had with them last week. None of the current versions can be made to work properly with the Lightning's electrical system according to the rep with whom I spoke. Same for their version of both the lighted front and rear Ford emblems. They expect to release a full package soon.


4x4TruckLEDs.com

Well-known member
Gold Sponsor
First Name
Adam
Joined
Feb 15, 2022
Threads
39
Messages
193
Reaction score
147
Location
Lindenhurst, NY
Website
www.4x4TruckLEDs.com
Vehicles
2018 Raptor & 2021 Bronco Outer Banks
Occupation
Drug Dealer of the LED World
Installation is a piece of cake actually if you order the right parts. We stock the Putco bars here. You can't use a normal putco bar, as they are not compatible. You have to use the newer putco bars (which we stock) which are compatible with the Ford BLIS system.

This might not work with the lightning though because the reverse circuit seems to be in a different spot then the 2021+ F150s. But for those who are reading this from the F150 forum (non-lightning) THIS bar works with newer trucks with and without BLIS (again MIGHT NOT work on lightnings due to the pin being different. I can test that though on my truck and let you know)

https://www.4x4truckleds.com/putco-...-play-ford-f-150-with-factory-led-taillights/
