OBD2 car scanner

[MikeH]

Does anyone have an extended range Lighting, have an OBD scanner and if so, would you be willing to scan the truck and post the battery voltage at 10% and 90%. The scanners are cheap on Amazon and just plug in. I want to compare battery voltages.

Sponsored



[Kansan]

Does anyone have an extended range Lighting, have an OBD scanner and if so, would you be willing to scan the truck and post the battery voltage at 10% and 90%. The scanners are cheap on Amazon and just plug in. I want to compare battery voltages.

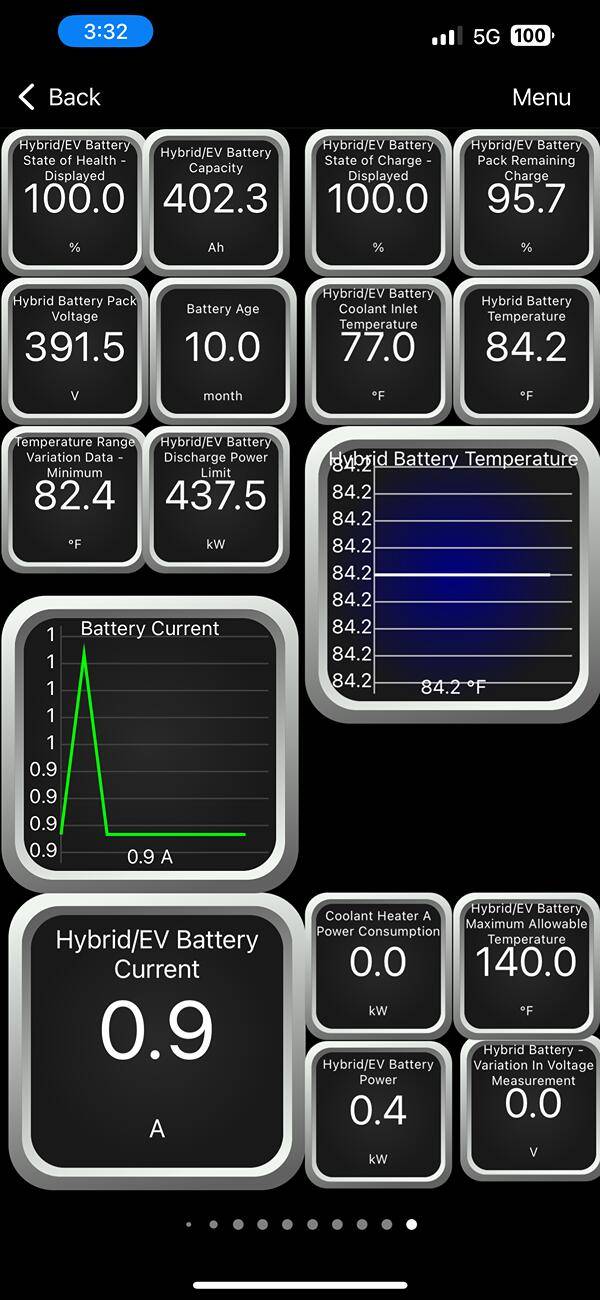

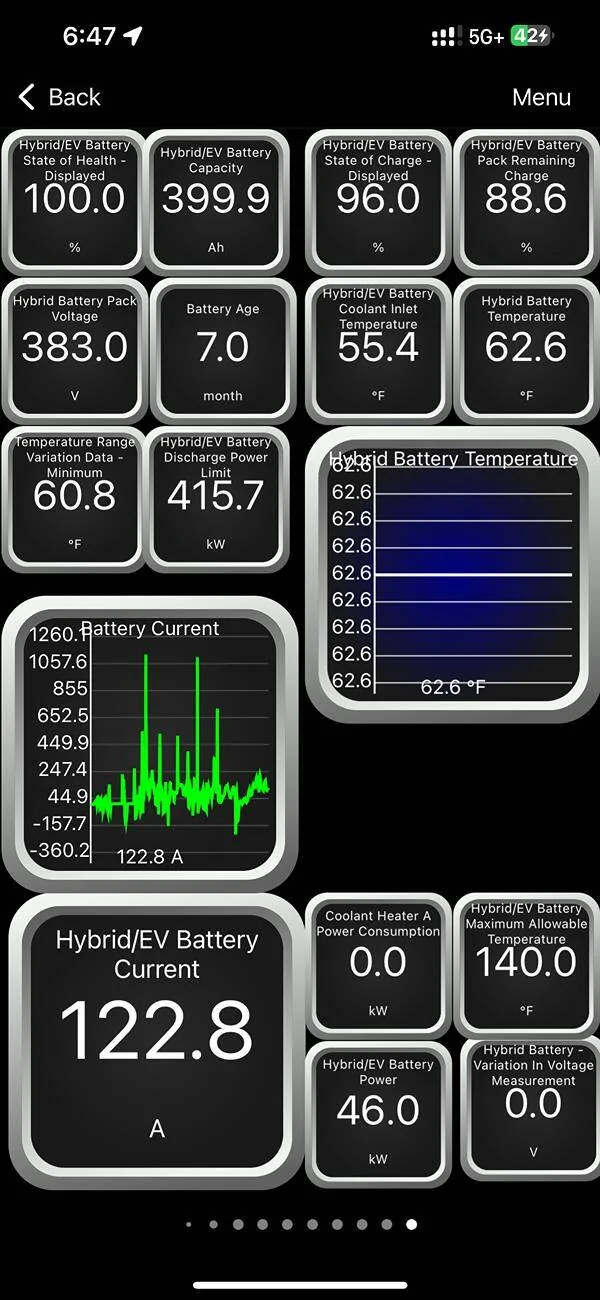

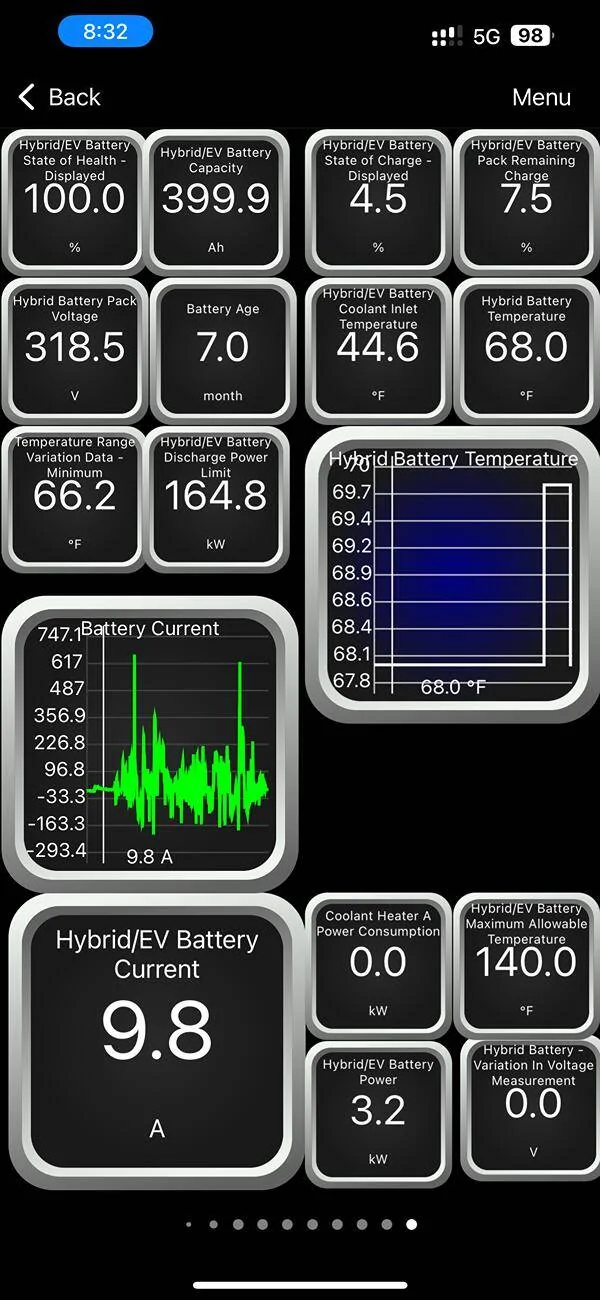

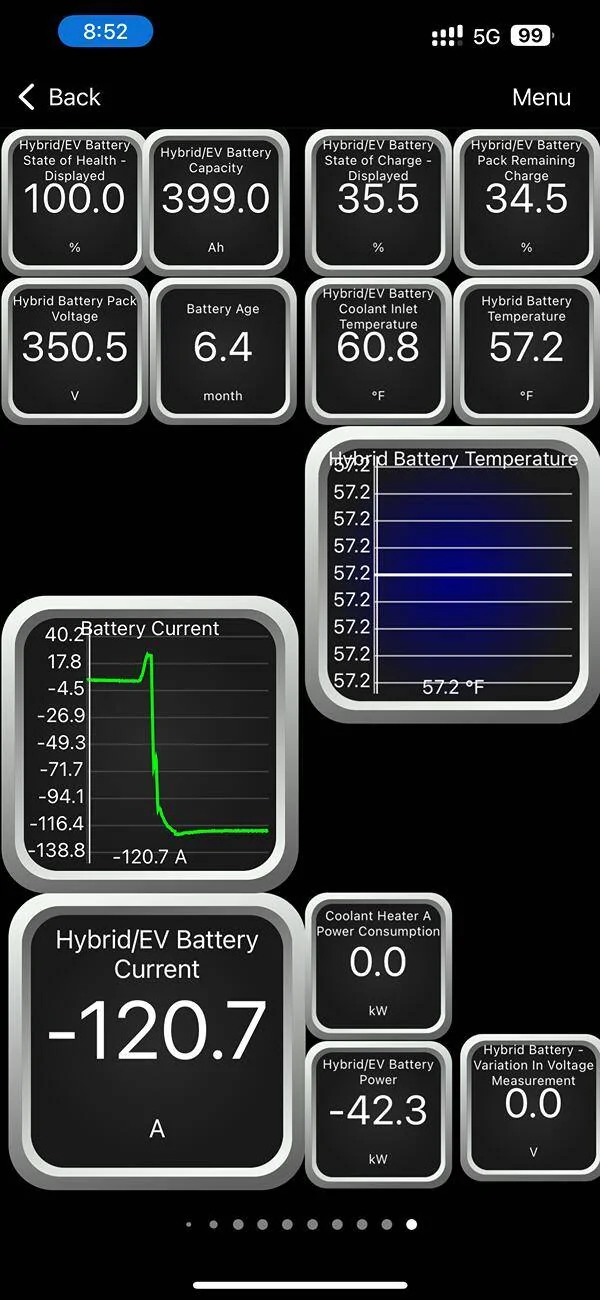

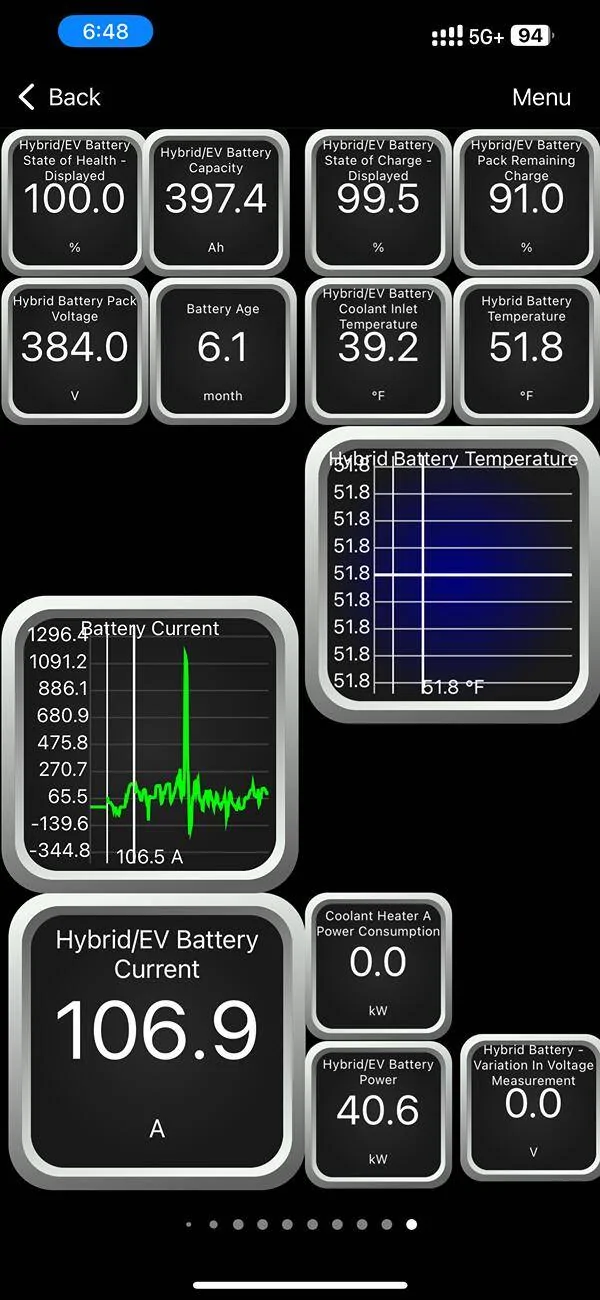

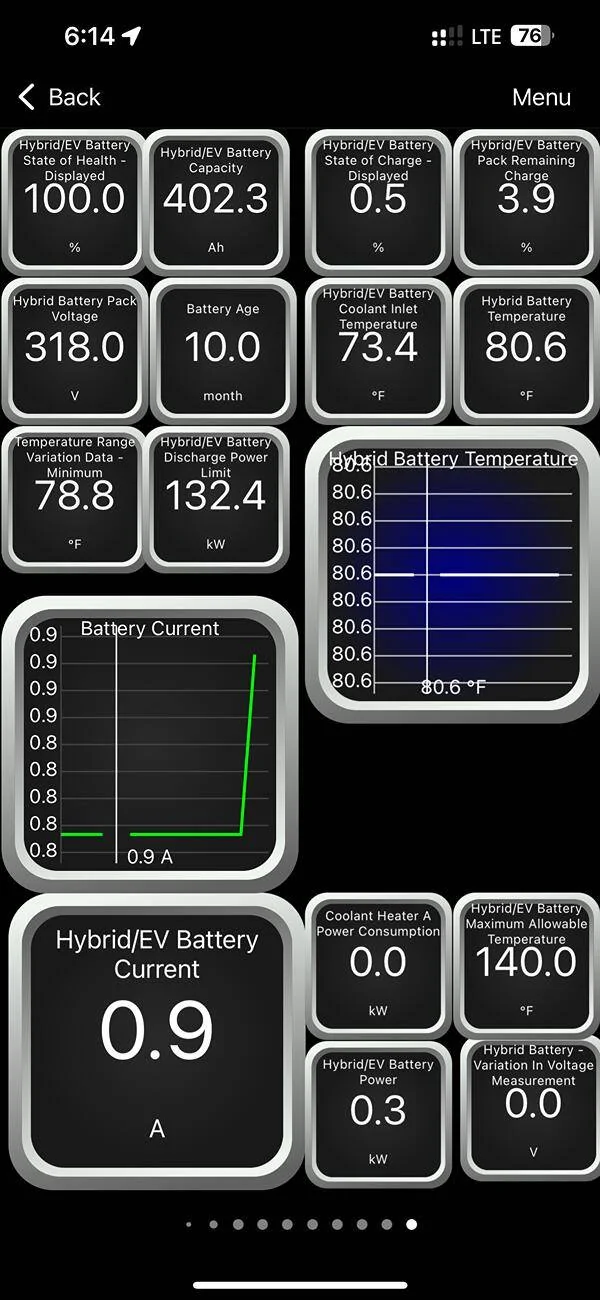

I have innumerable screen shots of my Lightning data. Don’t know if I have any right at 90% and 10%.

t



[MikeH]

I have innumerable screen shots of my Lightning data. Don’t know if I have any right at 90% and 10%.

t

Thanks. That will probably do. I can make a graph with it.



[Kansan]

Thanks. That will probably do. I can make a graph with it.

Let me know if there are some other points you want.



[mr.Magoo]

Does anyone have an extended range Lighting, have an OBD scanner and if so, would you be willing to scan the truck and post the battery voltage at 10% and 90%. The scanners are cheap on Amazon and just plug in. I want to compare battery voltages.

https://www.f150lightningforum.com/...-state-of-charge-percentage.19486/post-390486

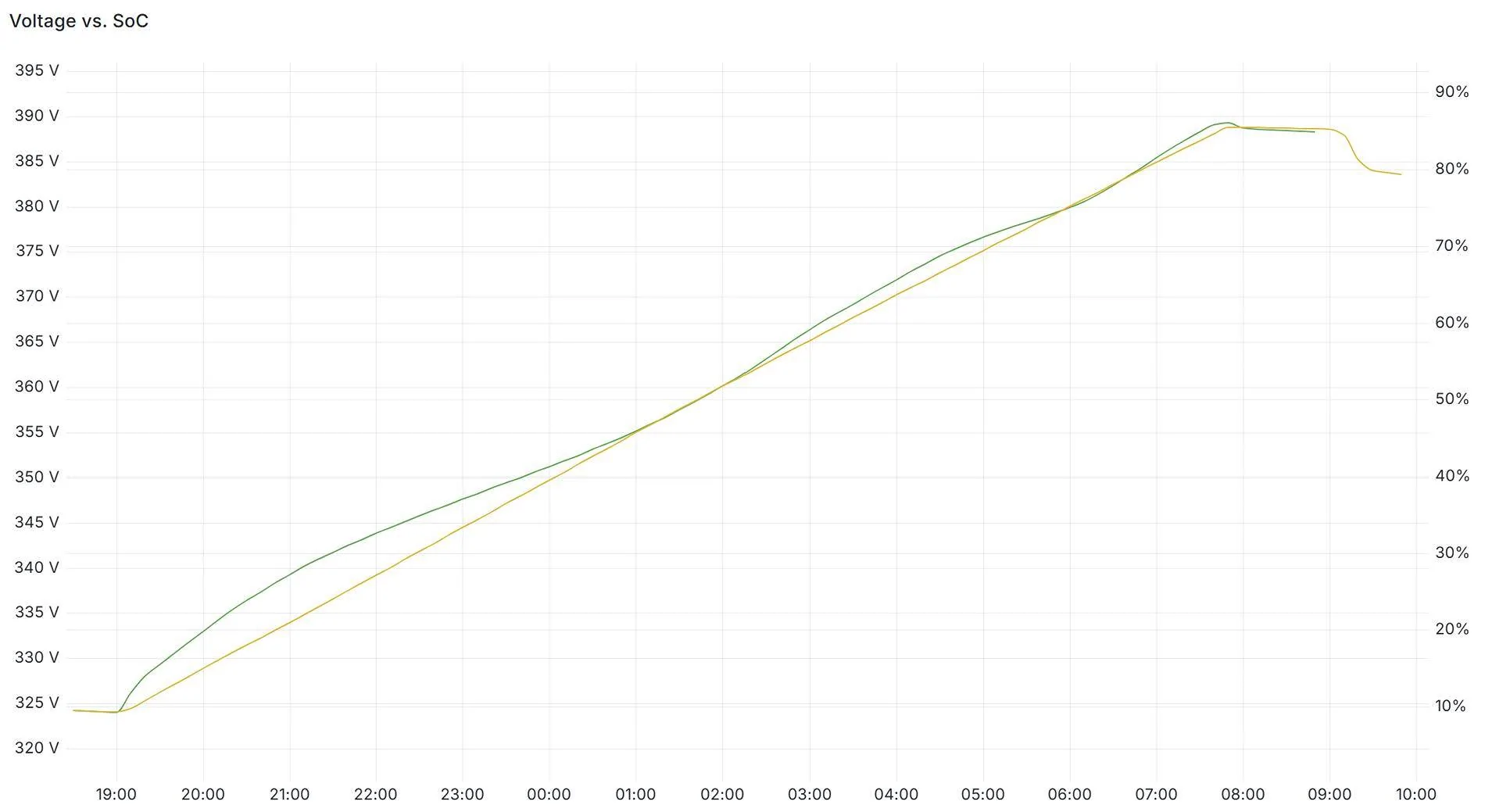

I can probably dig up a graph that covers thecwhole span.



[MikeH]

https://www.f150lightningforum.com/...-state-of-charge-percentage.19486/post-390486

I can probably dig up a graph that covers thecwhole span.

Yes, please. The more data the better



[mr.Magoo]

It's the best I could find right now, but I was planningon driving it below 10% and charging to 100% sometime next week, so I'll post the results of that.
Attached is also the raw data / csv file.
