Another audio amplifier install (with alternate under cab wiring).

[digitaldad]

TL;DR: amp install going under cab, through the body frame for 12v, avoiding the firewall; utilizing an existing grommet under passenger-side, rear-cab.

---------------------------------------------------------------------------------------------------

There are so many helpful threads here on this subject that I was just going to tack onto an existing thread but since I didnt see this exact path shared in pictures (and I took some, too), I'm deciding to share in case anyone else wants to possibly go this route, later.

So many mods to do and attempting to save some dollars (temporarily, at least) where I can, I'm utilizing an Alpine amplifier and ported sub box from one of our previous vehicles.

Once all wired, the amp ended up being dead, even though I had voltage to it...I think I recall dropping it from about 6-7' while moving it in the garage some time ago. So, had to use the other, Kicker (even older, but its a D class) amp I had laying next to the Alpine.

I've installed a lot of amps and gone through many firewalls over the years, but some fine folks suggested going under the cab and once I looked under the front and inside/under the frunk tub, I decided to avoid the firewall.

While looking under the cab, I found an existing grommet under the rear 40 seat, in front of the jack holder. I then (also) decided to feed through the body frame since I didnt see or trust the length of run with zip ties. This probably isnt the most ideal setup but its better than hanging cables coming loose.

Here are the pics of the main fuse & wiring path, ground, distribution block and keyloc. I didnt take pics of the sub box or amp but the amp is under the seat of the 60' side in that little cubby so I can reaplce down the road with a different amp/or add another amp for door speakers since I have the room on the distribution block, ready to go.

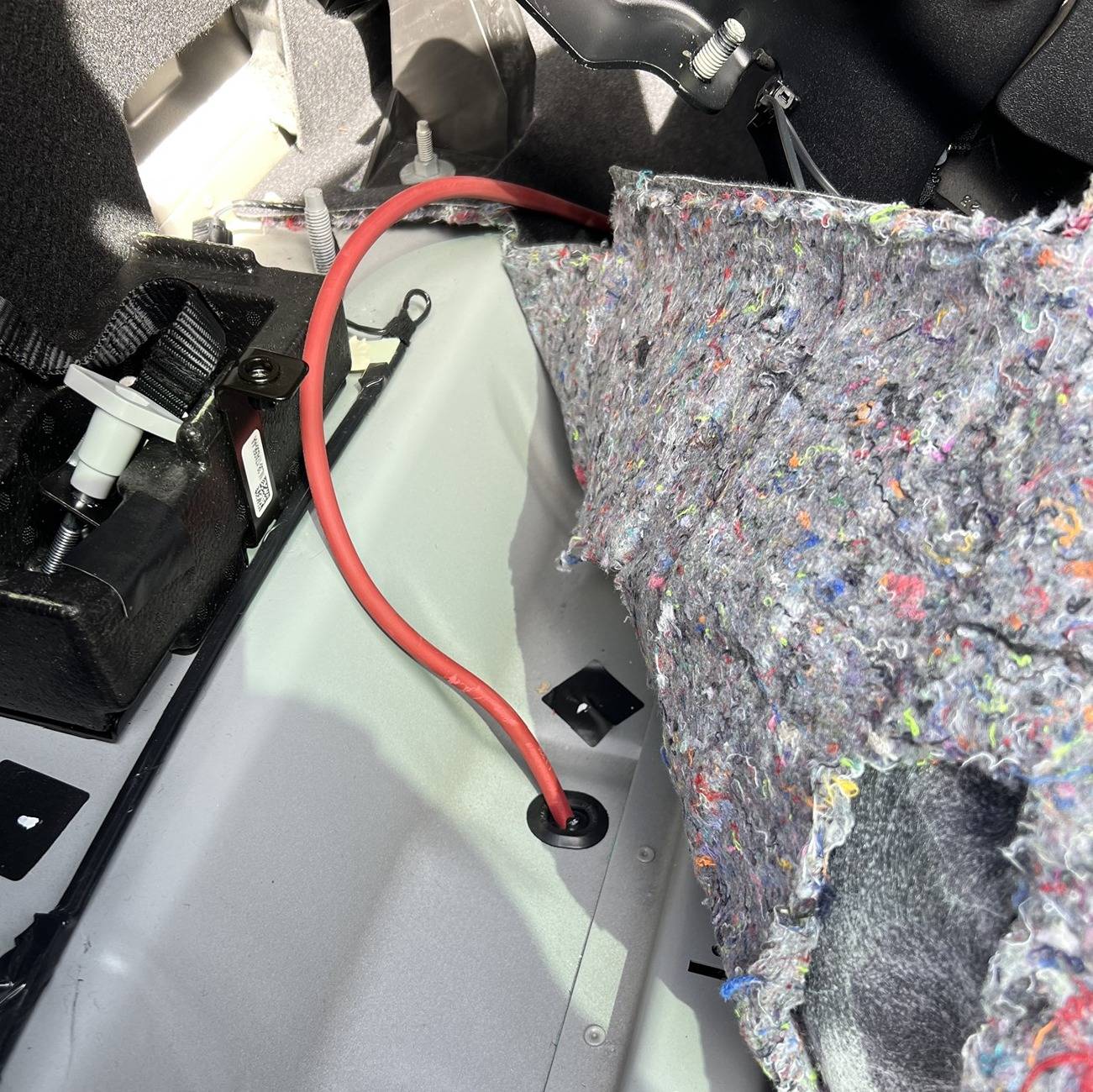

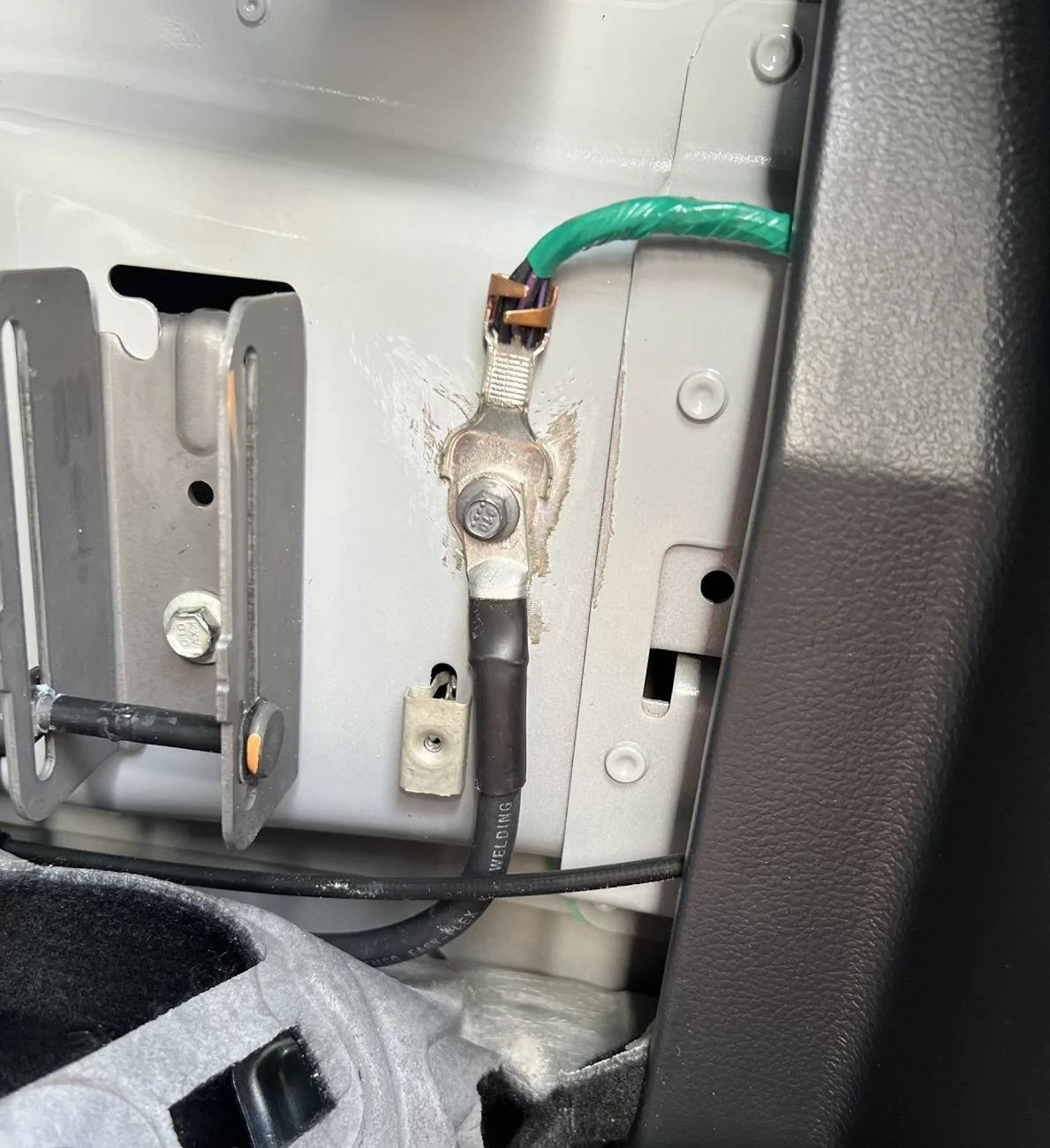

1. Existing grommet under rear-passenger seat. In front of jack/holder.

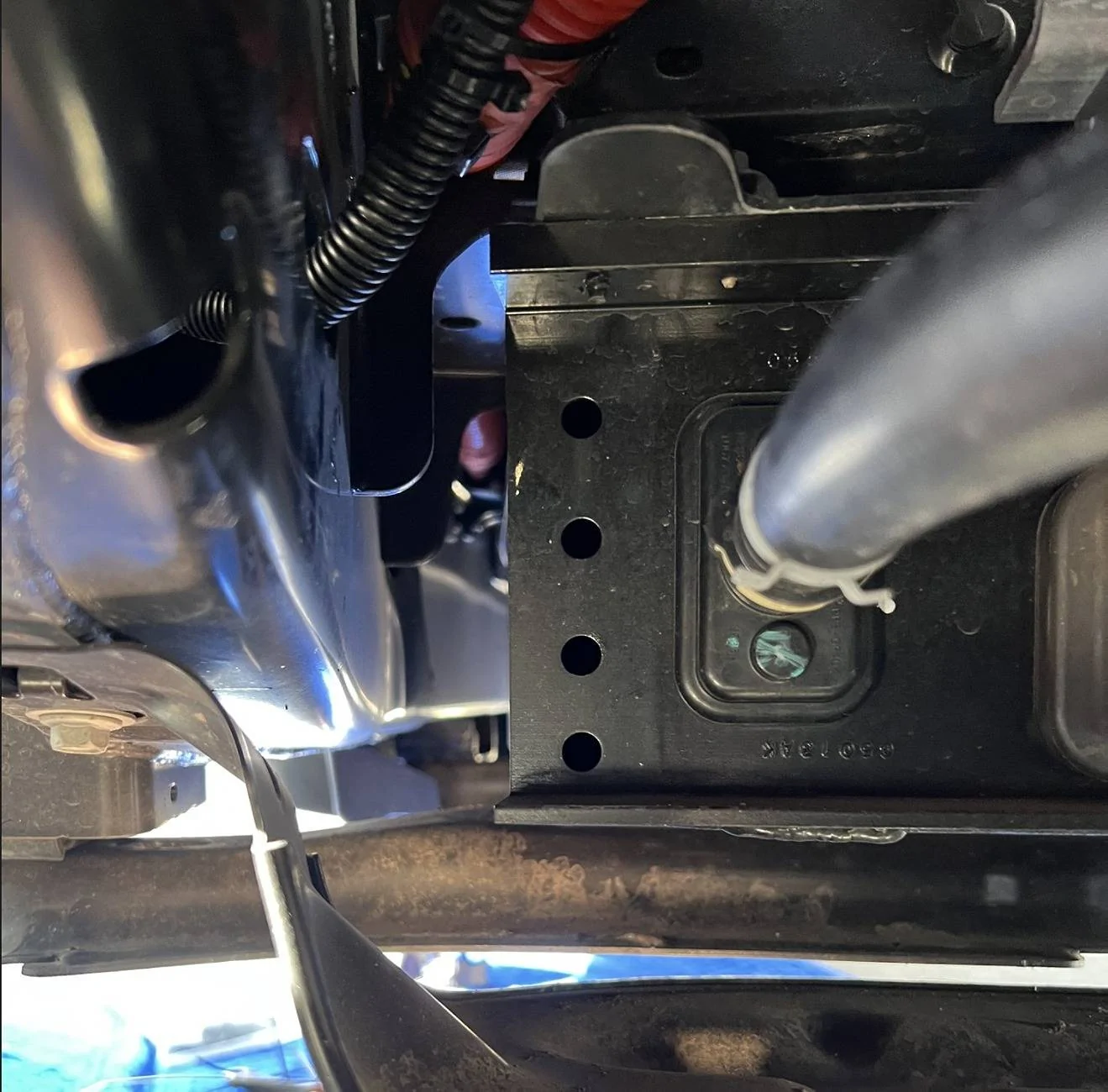

2. Laying down under truck, passenger-front wheel, toward frunk. Stuck a fish-tape here going back towards the bed of the truck.

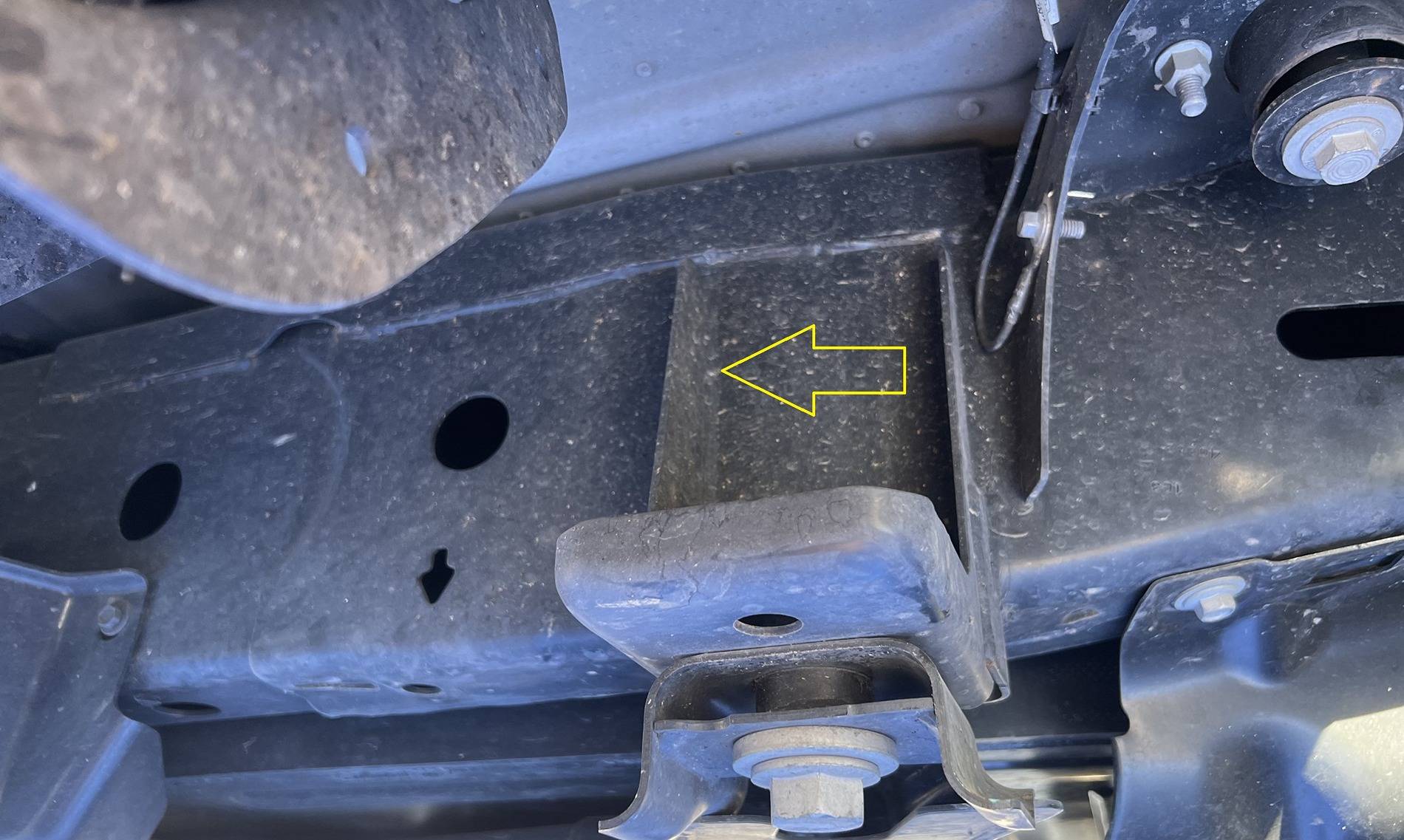

3-4. Fish-tape, slid easily down the next two pics and hit at a raise before the bed.

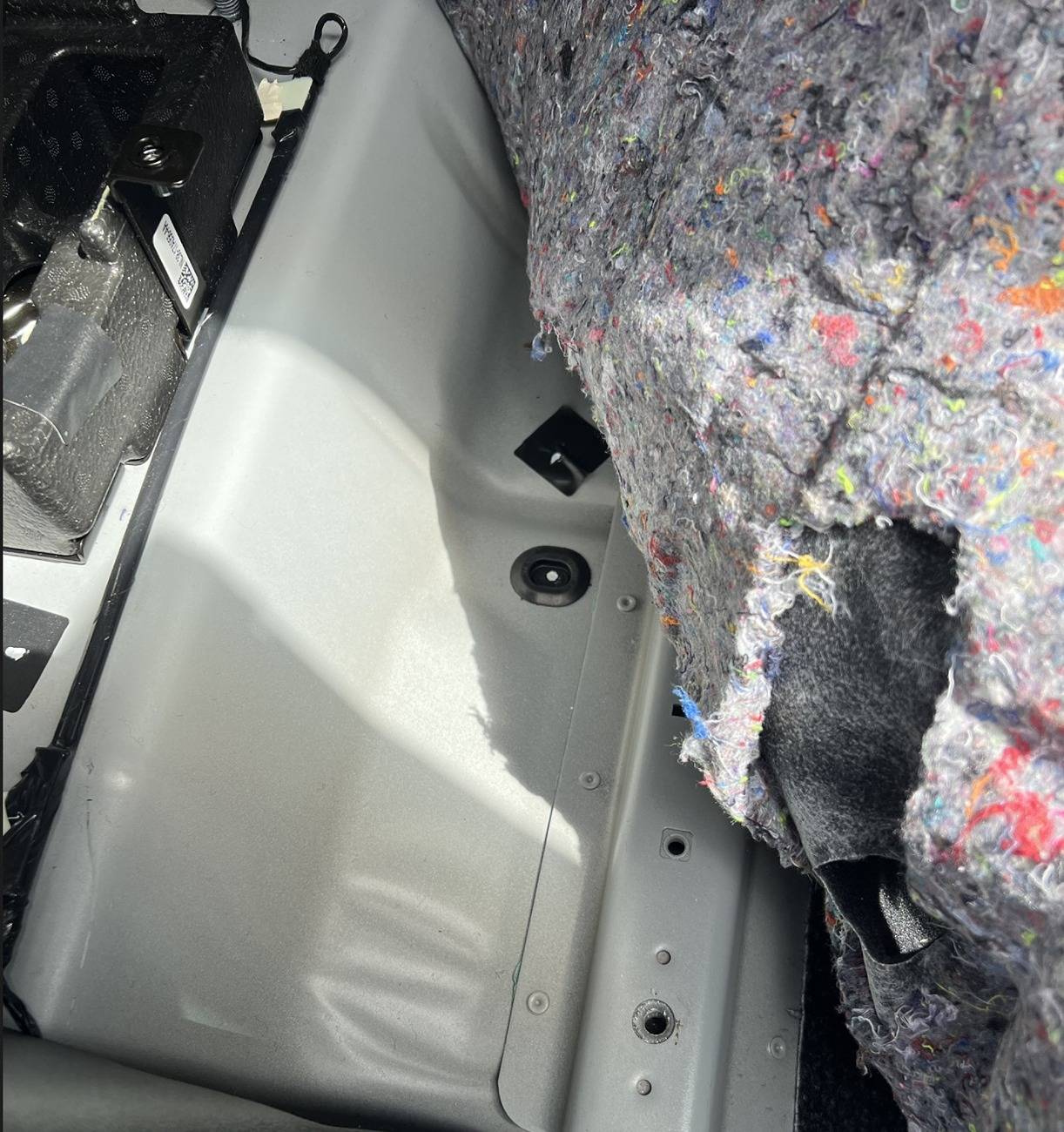

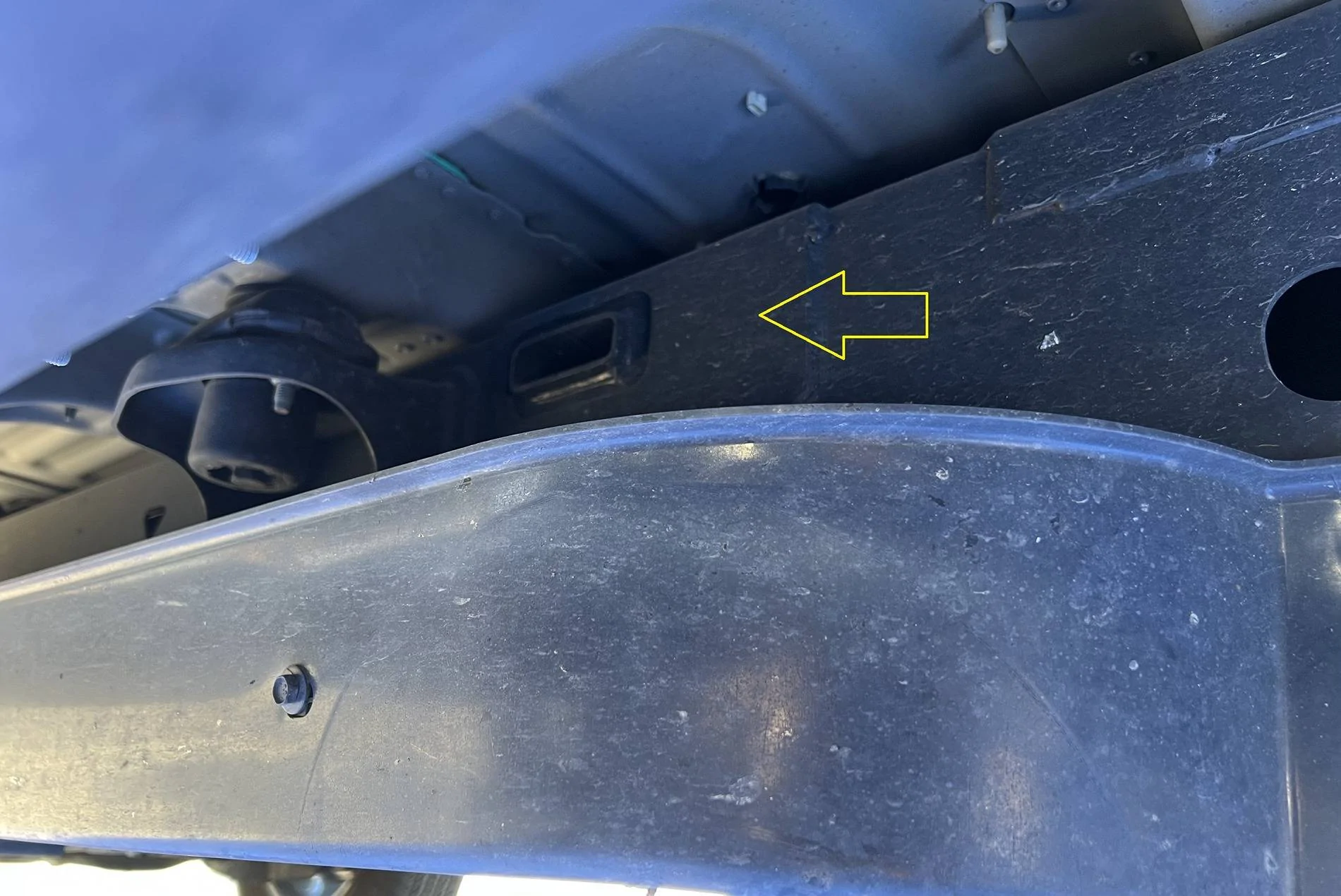

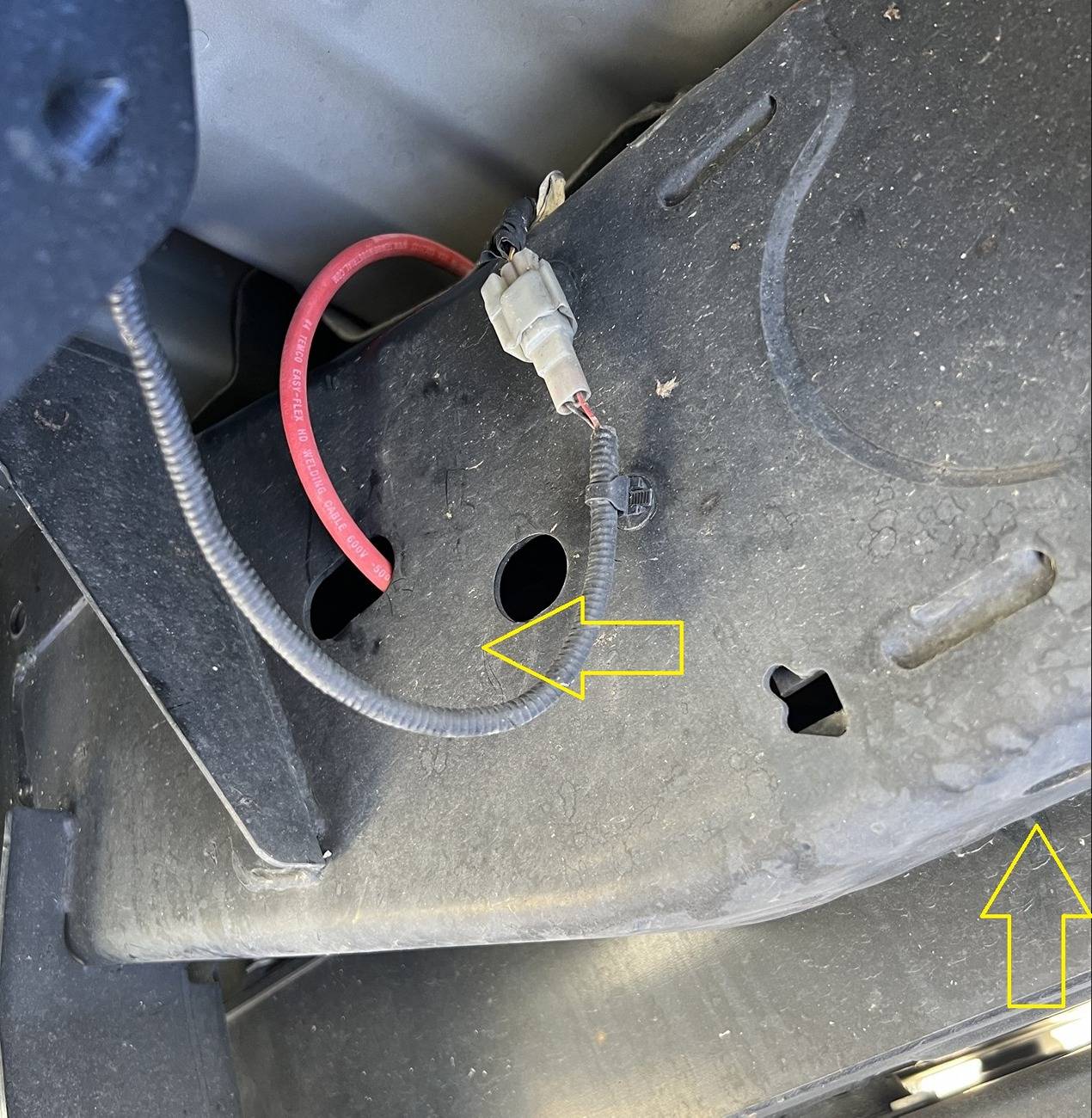

5-6. Pulled fish-tape back to pull down from the "up arrow" in this pic, pulled wire through here up to the front. Once enough slack @ frunk/battery, then pushed the wire through and out of the "left arrow" slot.

Note, there is a flush piece of outside carpet under the cab where that grommet is so you need to push in and up a couple of inches here, going towards drivers-side of cab.

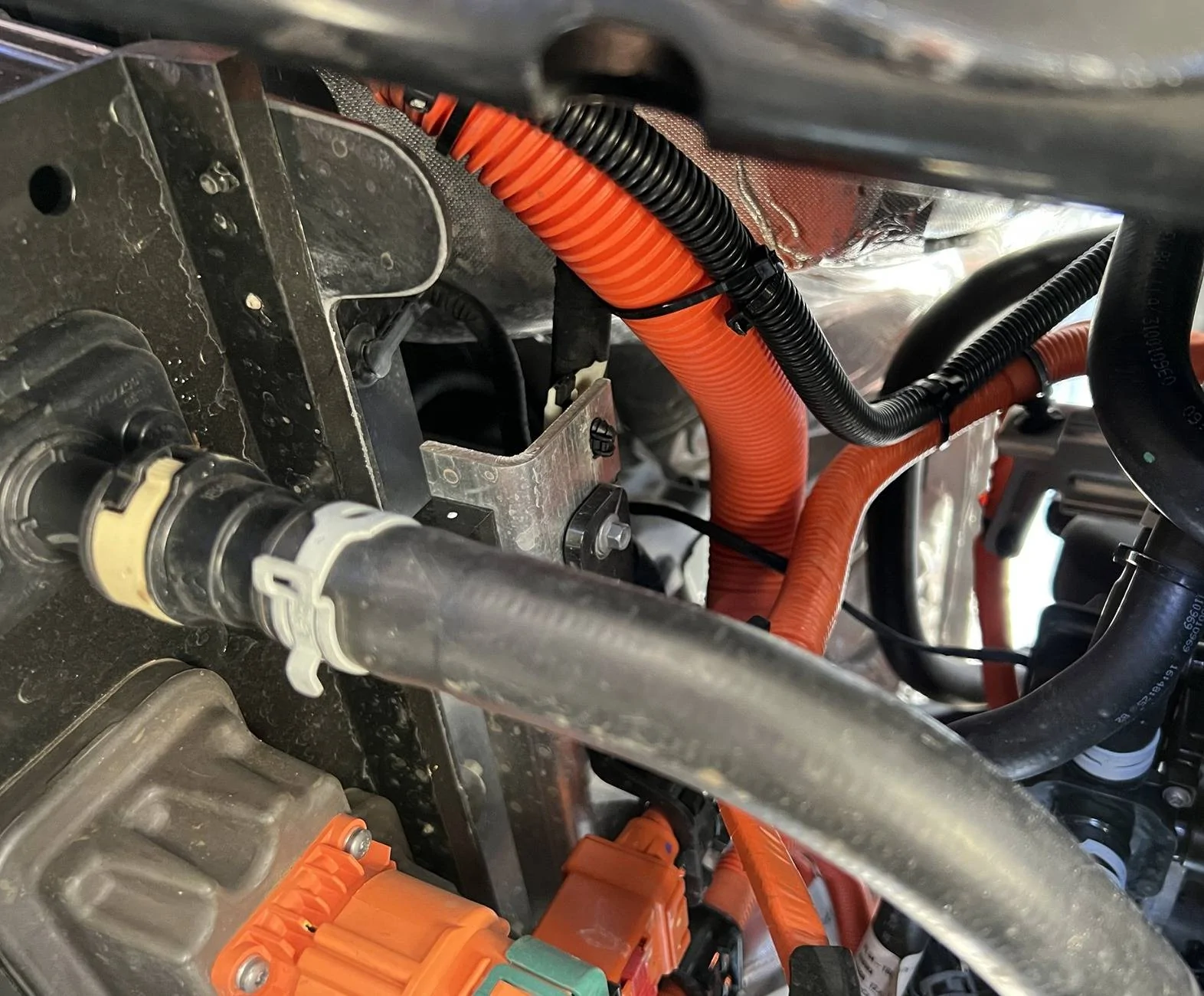

7. Go back to front of frame under frunk area where fish-tape was pushed in, push wire through opposite side of hole in frame (towards driver-side), and route up into frunk area to route to battery/fuse-holder.

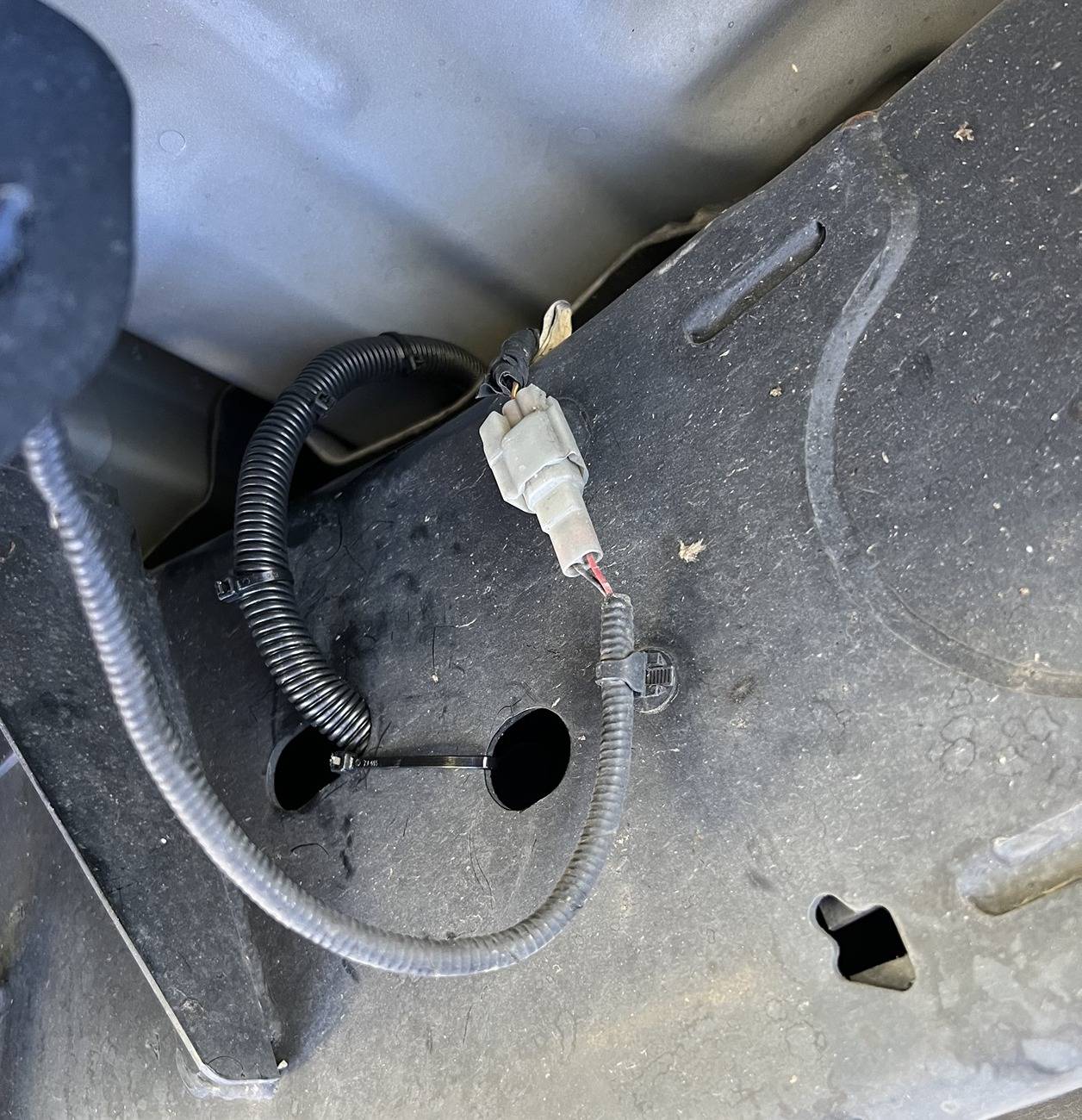

8-10. Place whatever loom tubing you are going to use and zip tie in multiple places to secure to wire and mounting locations. I shoved about a foot inside each frame entry/exit hole to inhibit any snagging of the wire's outside coating. If I wasn't alone, I probably would have had the whole wire in the frame inside the split-tubing.

I forgot to take a pic of the loom above the grommet inside the cab but it was done.

11. I was advised to run the ground wire all the way to the battery but others provided their success in using the cab ground behind the driver-side, rear seat next to the rear seat latch. I took off the existing ground and sanded this area to get better contact and secured back onto cab with my ground.

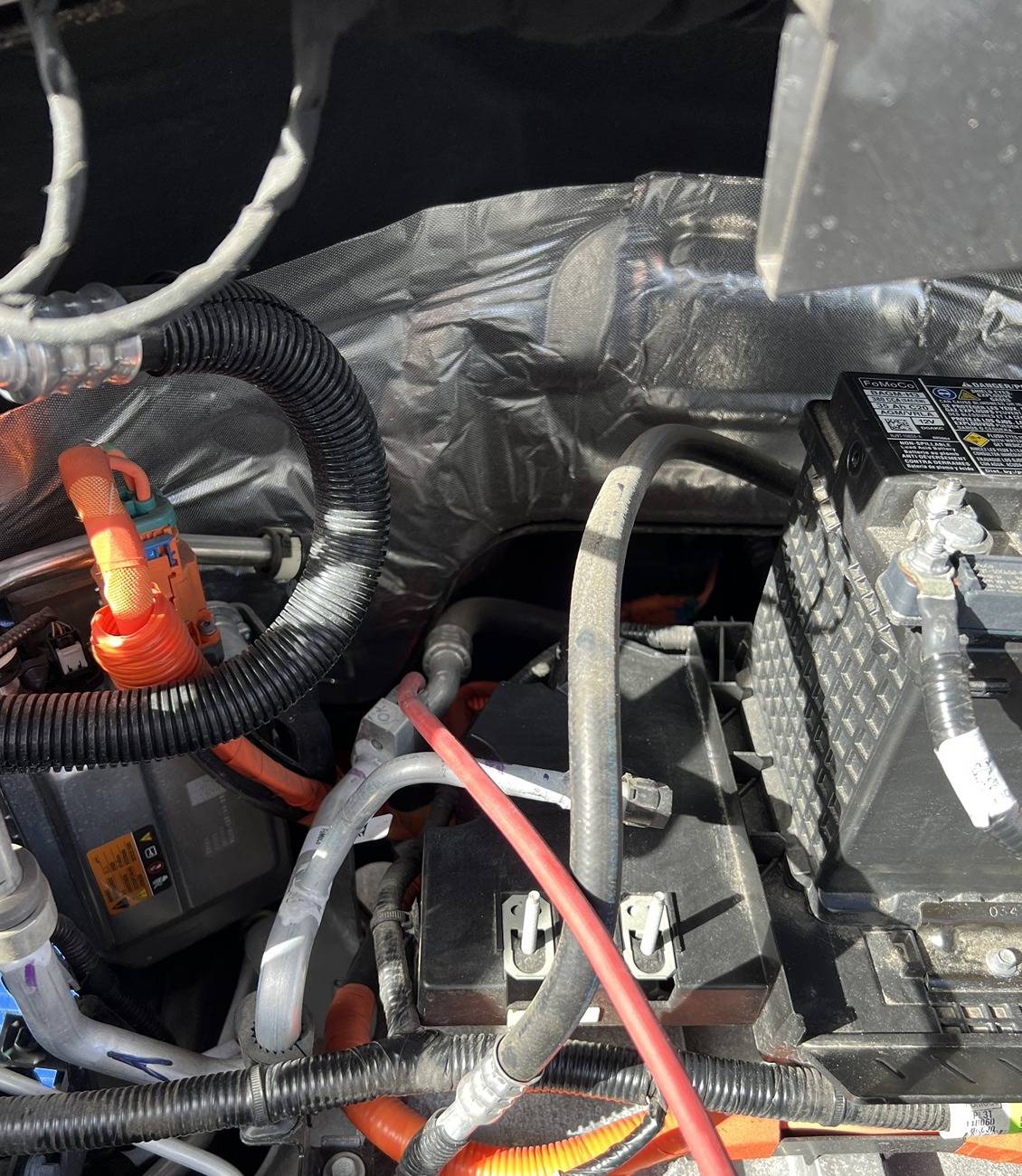

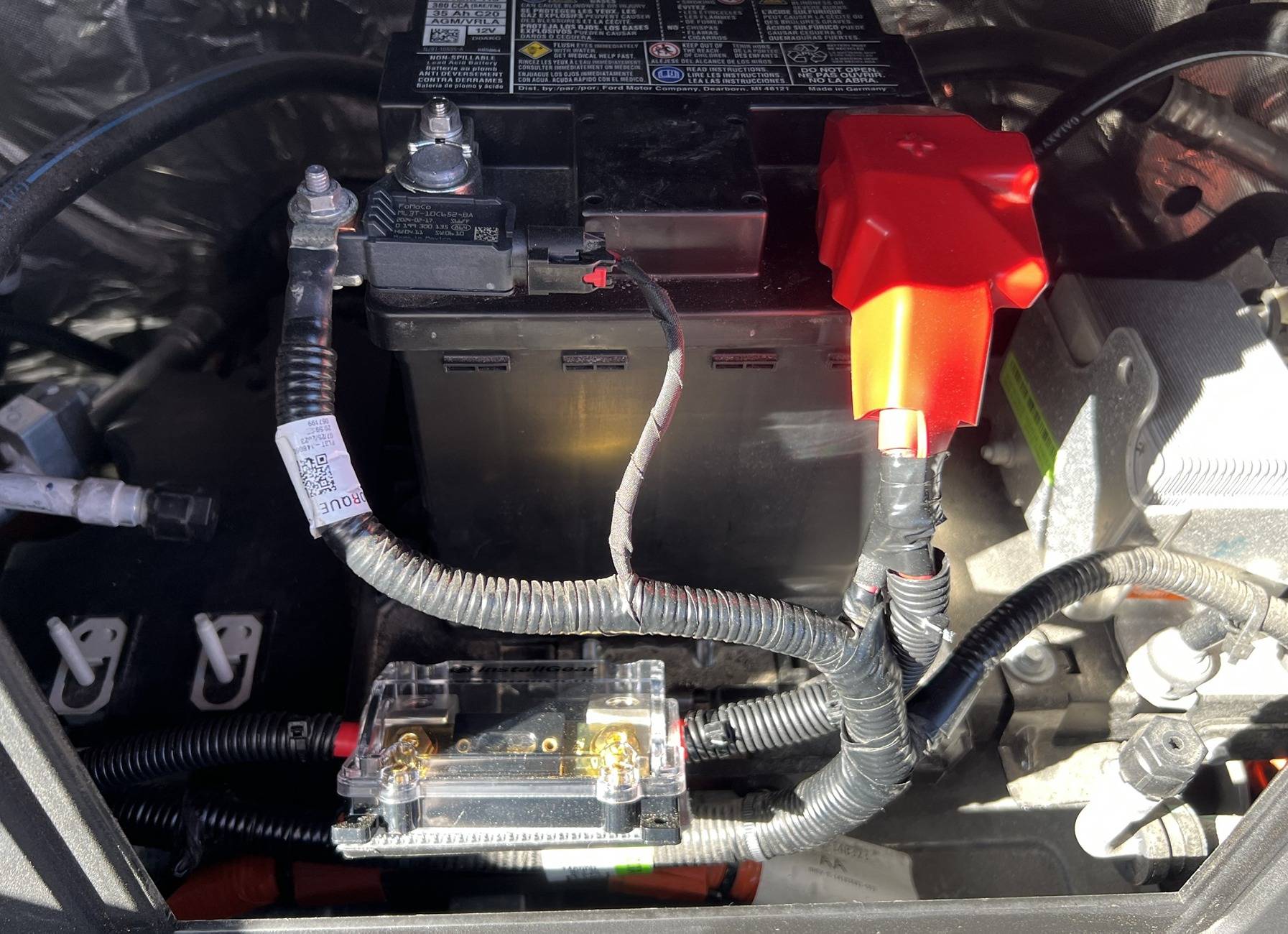

12. Routed the main wire inside frunk to the far left of battery and secured with zip ties along some of the other wires/loom that exist. Added some velcro on the front angled flap of the battery tray to hold the fuse-holder.

13. Since I am leaving the stock sub in place (but disconnected) and I'm using a ported box that takes space in the rear cab...until I get an under seat box, I can remove the sub box and re-connect the stock sub if/when need to.

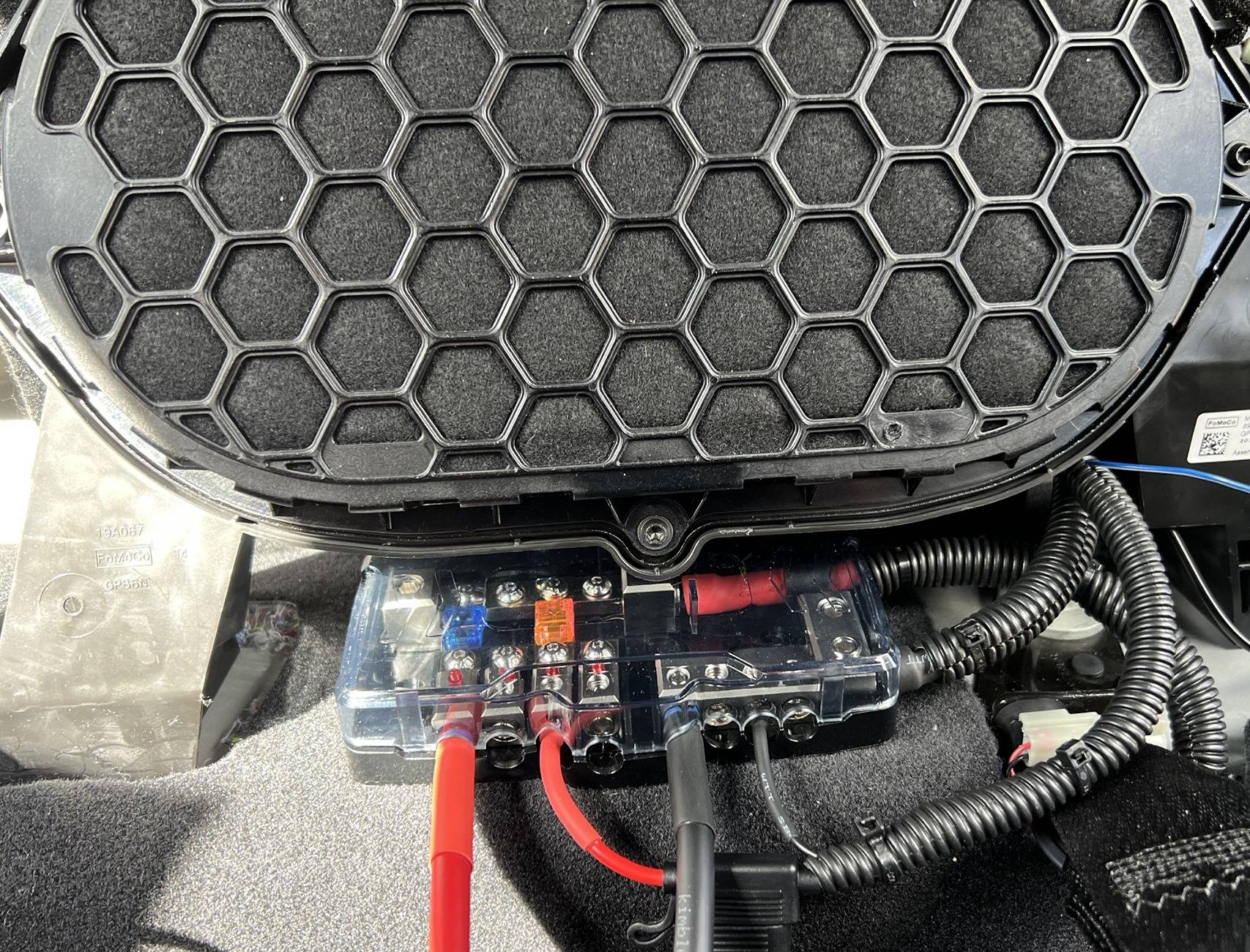

I placed the power distribution block under the stock sub to then wire to the driver-side cubby hole for new amp. I can access this area pretty easily by lowering rear-seats to the stowed position. Velcro added under the block assembly and rather simple to pull forward for lug access.

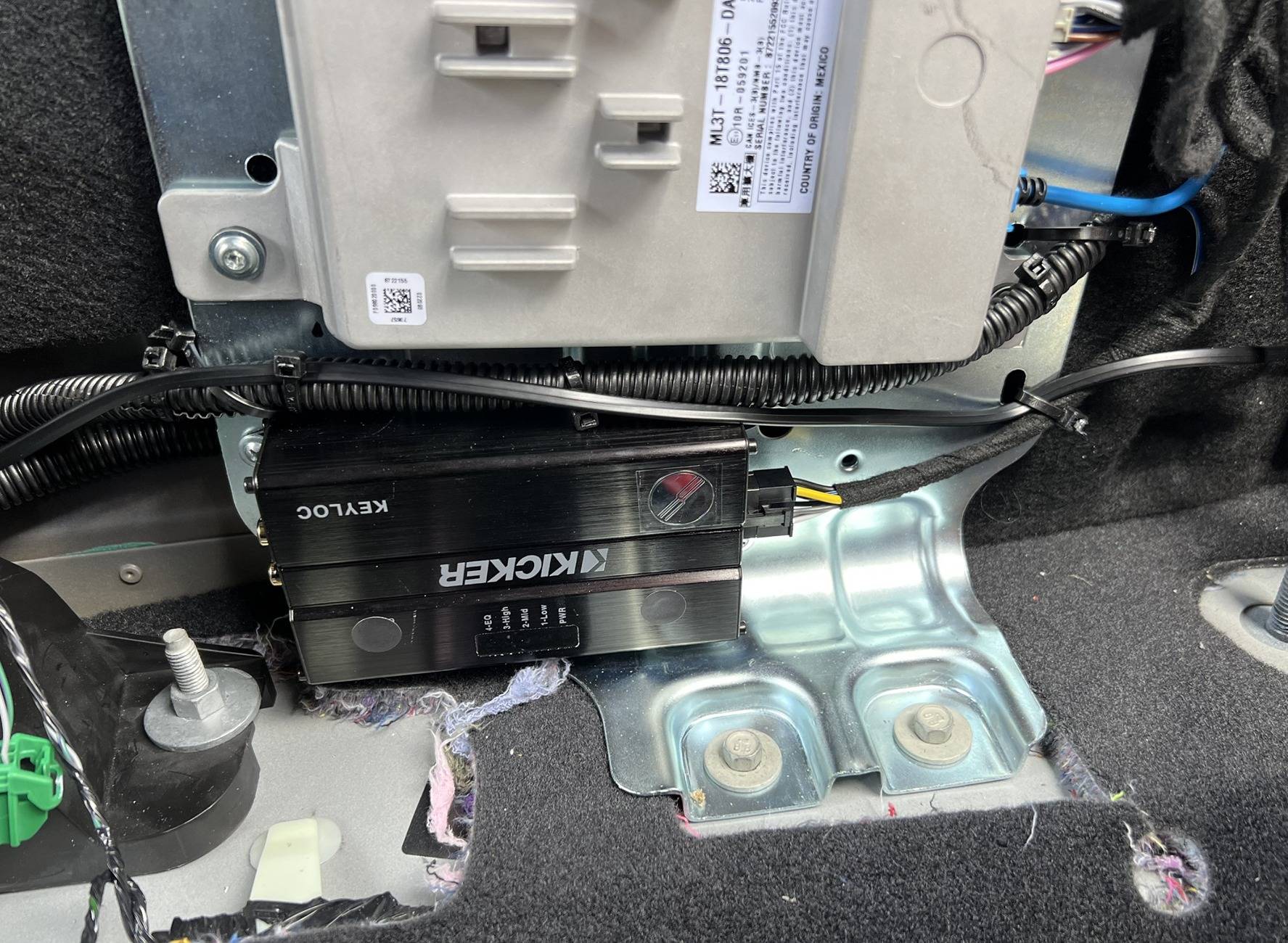

14. I mounted the Kicker Keyloc under the B&O amp on the existing mounting bracket. This orientation looks upside-down from the main Kicker wording but the operational/display lights are easily seen from under the seat when looking back in, while troubleshooting (also, the soundsgood harness stayed on the right side, correctly).

RCA's were connected to amp after this picture.

I also ran a bass knob from the amp, through the driver-side channel, from rear-seat to front, then placed under driver's seat (existing holes in carpet made this simple. Only had to remove the two kick plates on this, no side panels/weatherstripping.

Still a lot of work but not having to route the main wire through the firewall and across the channels, might have saved some time. Regardless, tried something new.
