Standard Range F150 Lightning Battery pack (for parts)

[ajbessinger]

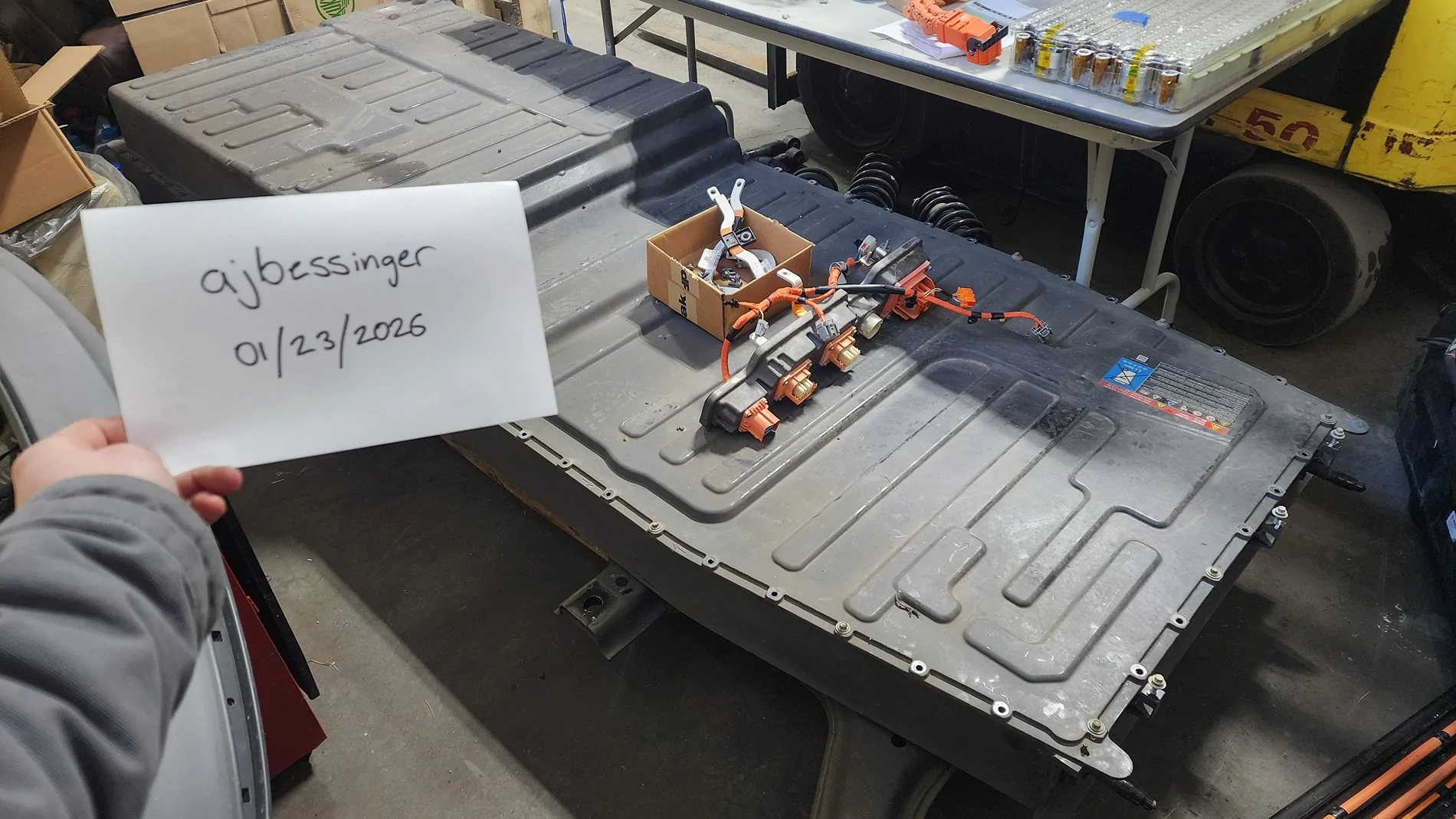

This is a Standard Range battery pack out of a Ford F150 Lighting.

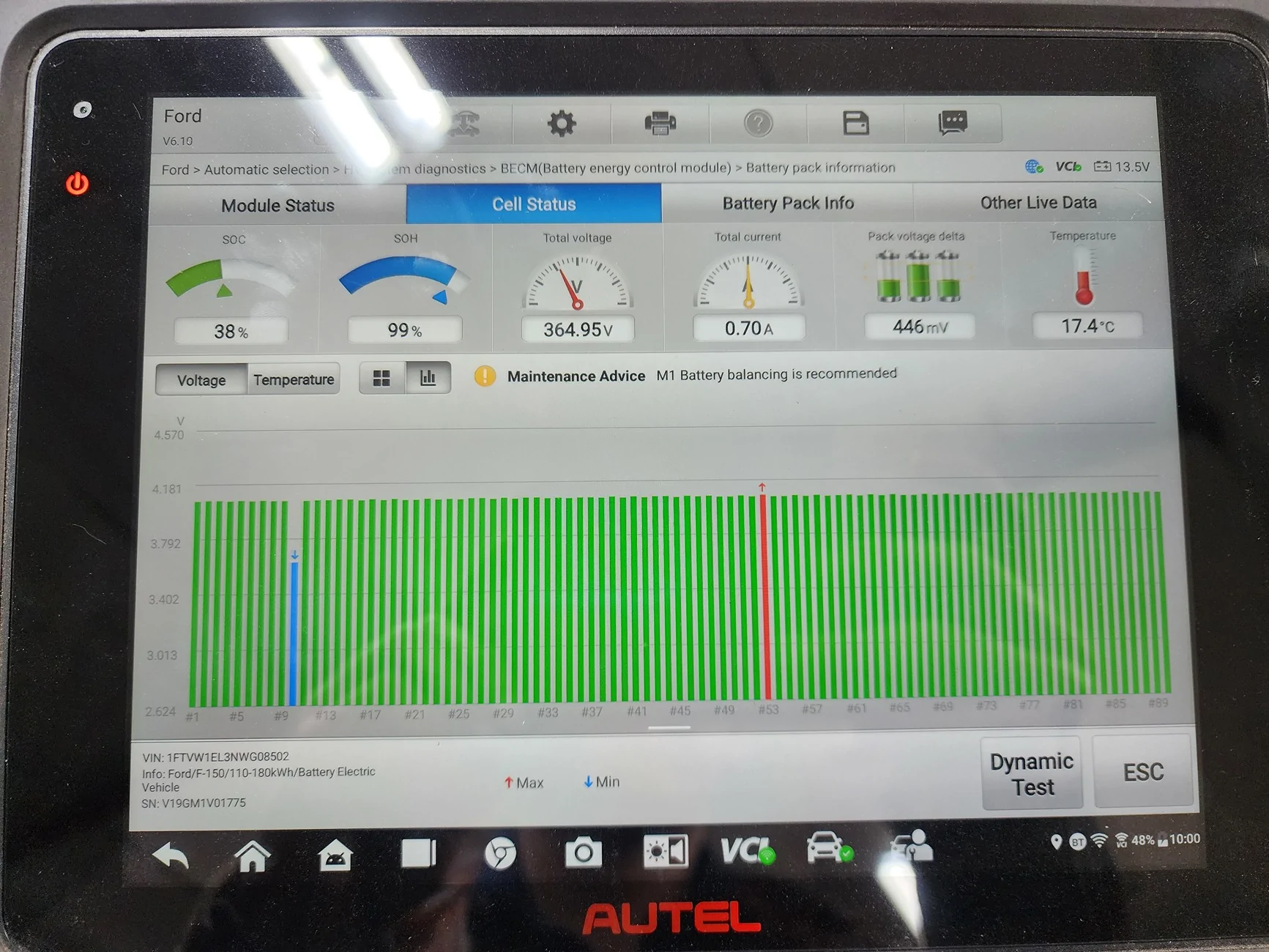

This pack has about 144k mi on it, and has suffered from a cell failure in one of the 9 modules, but the other 8 are still in good shape. See pics for details.

The good modules could be repurposed for stationary energy storage, electric conversions, etc. Each module contains a total of 40 NMC pouch cells with a gross capacity rating of 11.95kWh (usable probably closer to 10.5-11kWh). The cells in each module are in a 10S 4P configuration for a nominal voltage of 37v (42v fully charged).

The complete pack is for sale for $1,500 OBO!

Local pickup at my shop (WattWorks) in Portland Oregon. I have a forklift onsite for loading onto your truck/trailer. Please note this pack is quite large (~ 8.5ft x 4.5ft) and heavy (~1800 lbs). I also have other "parts packs" (Tesla Model S, etc.) for sale!

Sponsored



[TaxmanHog]

Thank you for the post update.


REMINDER TO ALL SELLERS we need you to follow ALL the listing rules to have a successful sale.



[Aminorjourney]

Oh if ONLY I had the money - It'd be a great project for TE to have a backup battery on the house combined with the stuff that the wonderful battery emulator board Dala has been doing (DalasEVRepair) to let EV batteries function as home-storage units.

Also, good to see you here! TE would love to do something with you all at some point



[On the Road with Ralph]

Local pickup at my shop (WattWorks) in Portland Oregon. I have a forklift onsite for loading onto your truck/trailer. Please note this pack is quite large (~ 8.5ft x 4.5ft) and heavy (~1800 lbs). I also have other "parts packs" (Tesla Model S, etc.) for sale!

Interesting. I was wondering what the physical dimensions of the pack were.

Has your shop done/do you plan to perform the SR to ER pack upgrade?



[SpaceEVDriver]

Bump because I’m tempted but it’s a long drive to pick it up.

Question: Do you happen to have any Fisker Ocean batteries? They used prismatic cells, which makes rearranging much easier.



[PJnc284]

Interesting. I was wondering what the physical dimensions of the pack were.

Has your shop done/do you plan to perform the SR to ER pack upgrade?

That's why he has an SR pack https://www.f150lightningforum.com/forum/threads/upgrading-f-150-lightning-battery-pack-video.34285



[ajbessinger]

Interesting. I was wondering what the physical dimensions of the pack were.

Has your shop done/do you plan to perform the SR to ER pack upgrade?

I've already done multiple upgrades!



[ajbessinger]

Bump because I’m tempted but it’s a long drive to pick it up.

Question: Do you happen to have any Fisker Ocean batteries? They used prismatic cells, which makes rearranging much easier.

I don't... But I do have a total of 4 Model S packs.



[ajbessinger]

Oh if ONLY I had the money - It'd be a great project for TE to have a backup battery on the house combined with the stuff that the wonderful battery emulator board Dala has been doing (DalasEVRepair) to let EV batteries function as home-storage units.

Also, good to see you here! TE would love to do something with you all at some point

I'm open to offers!

Unfortunately Dala's project doesn't yet support the Lightning packs, but Mach-E is, so probably not a hug jump to get the Lightning working. Of course, it would have to have a suitably good module swapped in to be usable in that way... I have yet to find a source for individual modules, so it's likely best suited to be parted out and use the modules with an aftermarket BMS.

I'm actually going to be closing up my shop here soon and moving to NC, so I won't be around here much longer!



[LSUT1GER]

I'm open to offers!

Unfortunately Dala's project doesn't yet support the Lightning packs, but Mach-E is, so probably not a hug jump to get the Lightning working. Of course, it would have to have a suitably good module swapped in to be usable in that way... I have yet to find a source for individual modules, so it's likely best suited to be parted out and use the modules with an aftermarket BMS.

I'm actually going to be closing up my shop here soon and moving to NC, so I won't be around here much longer!

Are you still going to have your EV Repair shop in NC? I watched your video on the SR to ER battery upgrade on a Lightning. Amazing stuff!



[whynotdairy]

This is a Standard Range battery pack out of a Ford F150 Lighting.

This pack has about 144k mi on it, and has suffered from a cell failure in one of the 9 modules, but the other 8 are still in good shape. See pics for details.

The good modules could be repurposed for stationary energy storage, electric conversions, etc. Each module contains a total of 40 NMC pouch cells with a gross capacity rating of 11.95kWh (usable probably closer to 10.5-11kWh). The cells in each module are in a 10S 4P configuration for a nominal voltage of 37v (42v fully charged).

The complete pack is for sale for $1,500 OBO!

Local pickup at my shop (WattWorks) in Portland Oregon. I have a forklift onsite for loading onto your truck/trailer. Please note this pack is quite large (~ 8.5ft x 4.5ft) and heavy (~1800 lbs). I also have other "parts packs" (Tesla Model S, etc.) for sale!

Are you out of spec on youtube who just replaced the f150 standard pack to er?



[ajbessinger]

Are you out of spec on youtube who just replaced the f150 standard pack to er?

Yep, that's me!



[whynotdairy]

Yep, that's me!

Love your work. Why the move?



[ajbessinger]

Are you still going to have your EV Repair shop in NC? I watched your video on the SR to ER battery upgrade on a Lightning. Amazing stuff!

Yep, I'll have my new shop at the Out Of Spec Track, and will still be repairing customer cars - though I'll be spending a bit more time of Out of Spec projects.
