Battery coolant connector/fitting broken/snapped leaking

[dww]

I’m not sure if this has been posted before but my brother recently bought a used 22 Platinum. Last weekend a dirt clod or rock or stick was likely thrown from his tire into the huge gap on the side of the battery skid plate (where the tire points when turned). He got a high motor temp warning and had to have it towed. It’s now at the dealer awaiting repair. After seeing this and investigating on my truck I made some plastic covers to shield that area as this will most likely be a multi thousand dollar repair that will be a fight as to who covers it along with completely stranding you if it ever happens.

,

Sponsored



[Tired Lizard]

Another post about broken HVB coolant fitting on a couple of Lightnings.
Exploring trip that was great until it wasn't
Thread starter jmb01 Start date Jun 22, 2023



[dww]

Thank you for the link. I’m going to leave mine up because the subject line of that post does not describe the actual issue.



[dww]

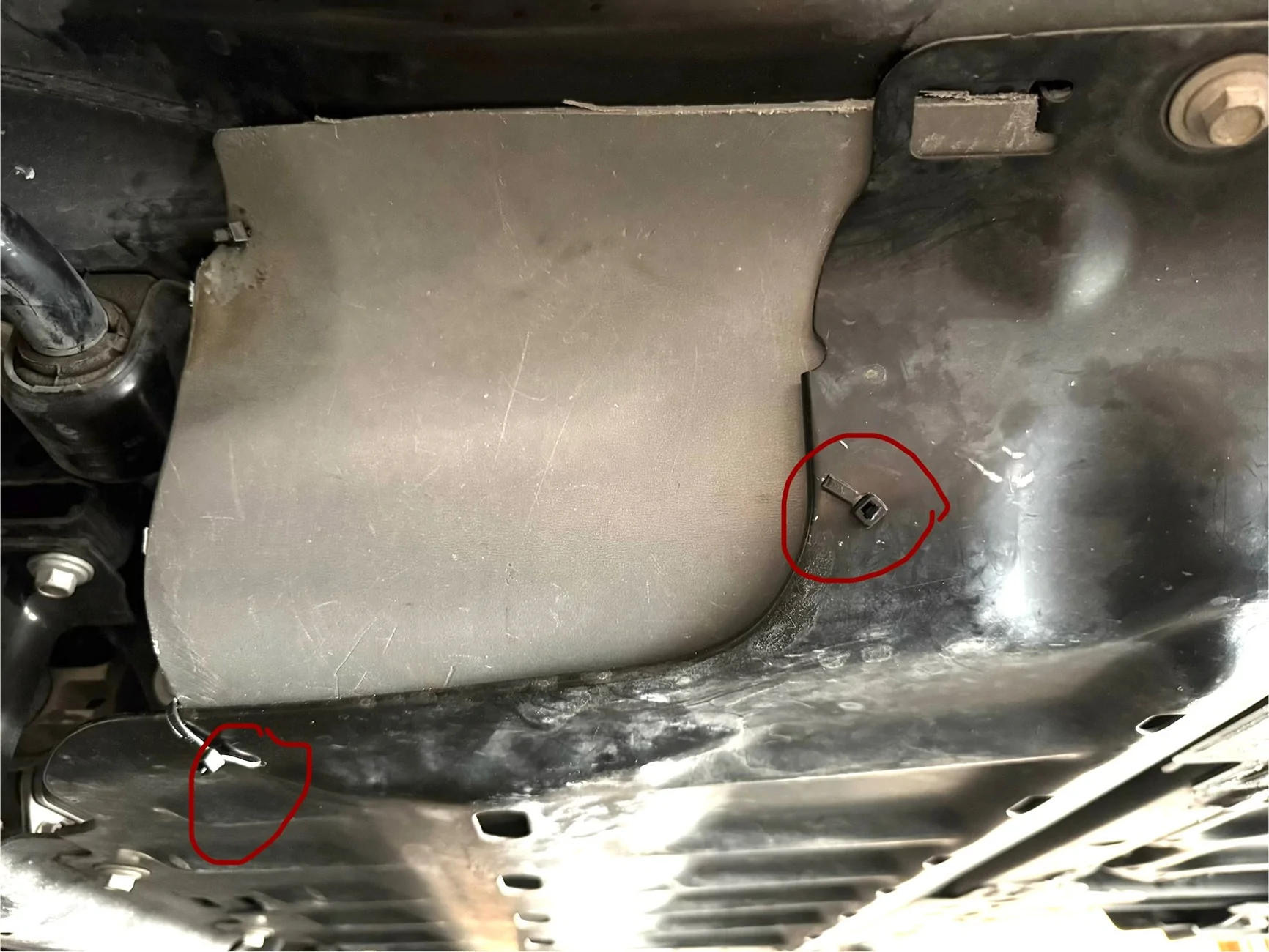

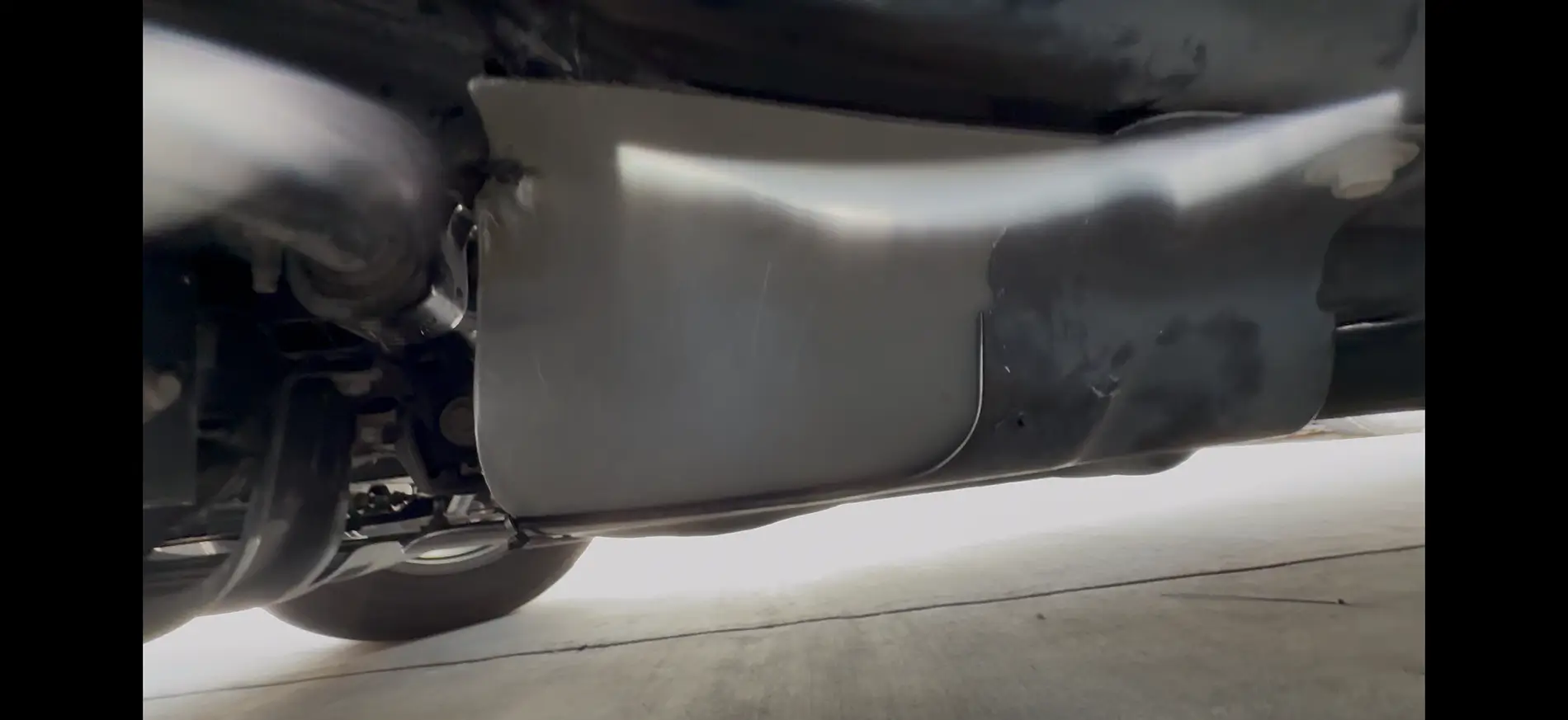

This is my new makeshift cover (both sides). There is a professional made one shown in the other thread but nobody has received one as it was made in Australia.



[Zprime29]

Did you have to drill any holes for the zip ties? What is the approx dimension of that? I started contemplating a 3d printed protector but your solution looks very good and straightforward.



[mq019]

Thats a great idea - I'll probably try and zip tie something in there like you did.

If someone would make one that bolts right there to the 2 bolts that extends forward, they would make a mint selling these. Cheap insurance.



[MountainAlive]

Urgh. Another one? We gotta band together and figure out a way to shield this area better.



[dww]

Did you have to drill any holes for the zip ties? What is the approx dimension of that? I started contemplating a 3d printed protector but your solution looks very good and straightforward.

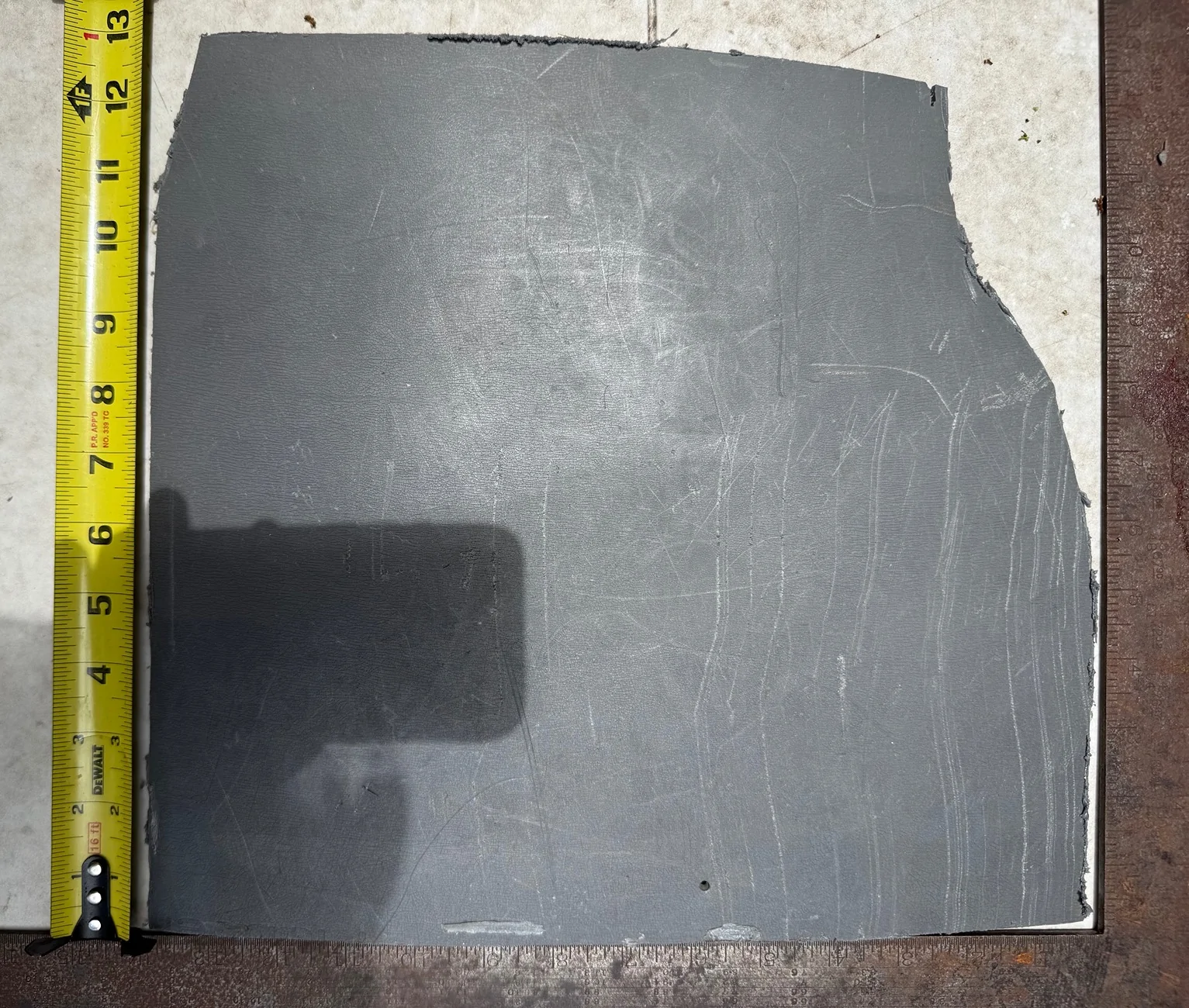

Two holes in the skid plate (per side) the size of the zip tie. Three holes in the plastic. The one at the top right uses a hole that is already there. It’s 14x13 with some tapers in spots. One side is flip of the other so when you get one just use that at the template for the other. The curvy edge slides under the battery so it can’t have a lose sharp edge come lose and poke a fitting.



[MountainAlive]

Hey @Trucked Up EVs maybe there’s a new and improved skid plate fabrication for the vulnerable battery connectors area as part of the Ultimate F-150 Lightning build series
