7D0-09-04 xxx* xxxx XX--

The first Octet needs a 1 also where the astrick is. I just added this to my flash

Linbus initialization is also needed


Jesse-Infotainment

Well-known member
First Name
Jesse
Joined
May 27, 2021
Threads
1
Messages
756
Reaction score
764
Location
Dallas
Vehicles
2024 F150 Lightning Flash
Under the wrench icon in Forscan. Select this option

Ford F-150 Lightning Ford Perimeter Plus Security System 1738633816044-wn


Sponsored

bmwhitetx

Well-known member
First Name
Bruce
Joined
May 21, 2021
Threads
43
Messages
2,078
Reaction score
2,895
Location
DFW-Texas
Vehicles
2022 F150 Lightning Lariat ER
Occupation
Retired engineer
7D0-09-04 xxx* xxxx XX--

The first Octet needs a 1 also where the astrick is. I just added this to my flash

Linbus initialization is also needed
Interesting. I see that the 2024's have a 1 there but all the 22's and 23's I have looked at (7 from each MY) have a 0. Same with the few ICE trucks - only 2024 has a 1. So 2024 seems to be different. I'll look at Livnitup's spreadsheet to try to understand the difference.

Good to know the Flash can add this. I added this to my post above.


Jesse-Infotainment

Well-known member
First Name
Jesse
Joined
May 27, 2021
Threads
1
Messages
756
Reaction score
764
Location
Dallas
Vehicles
2024 F150 Lightning Flash

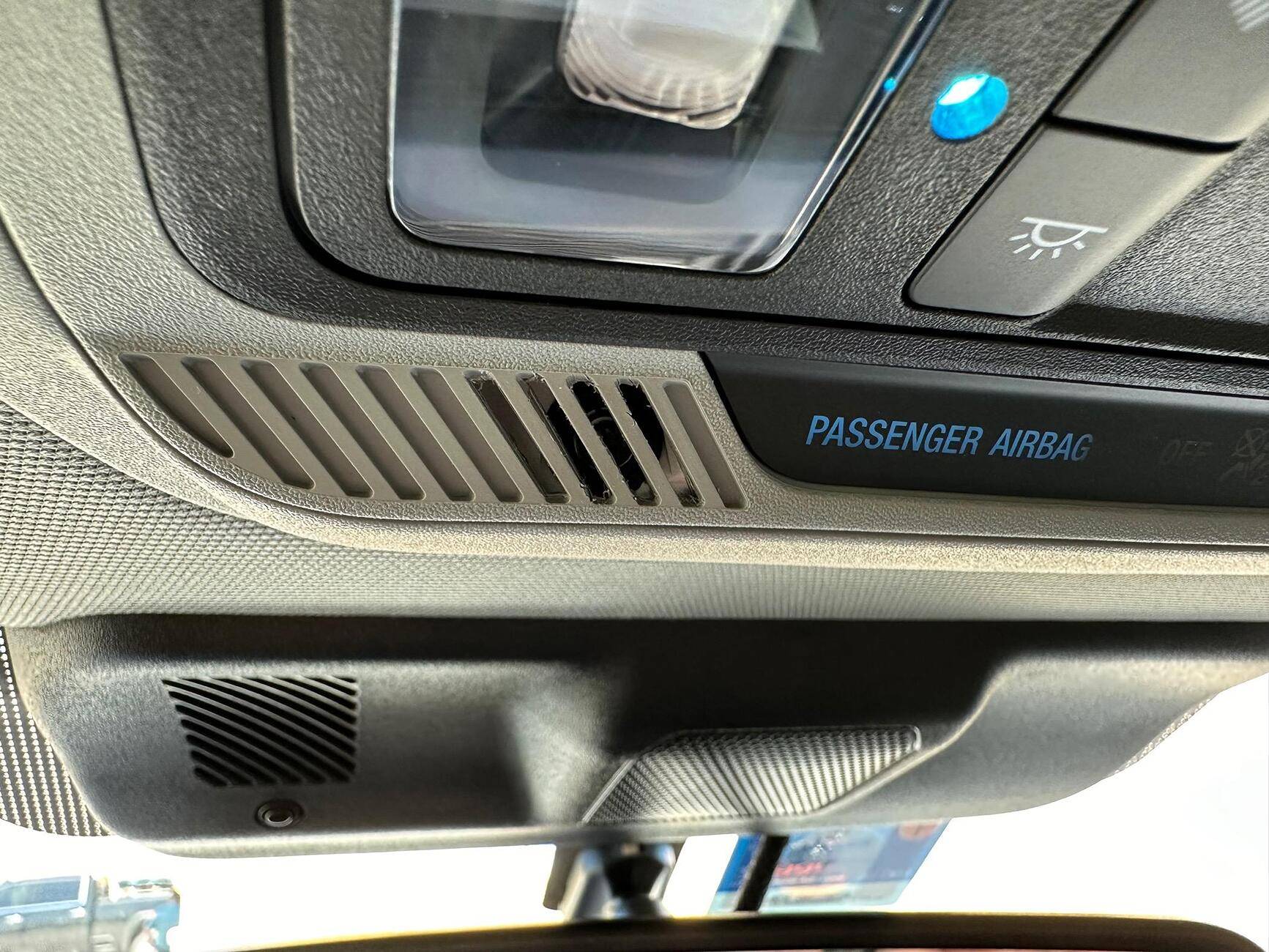

Well. Let me add some details about the FLash.. I added the wiring for it..

Also the over head console doesnt have the cutouts for the sensors.. I added them as well..

So its much more involved than jsut adding it to a truck that has the blank..

Ford F-150 Lightning Ford Perimeter Plus Security System 1738670770707-gk


MJFlanigan

Active member
First Name
Michael
Joined
Oct 7, 2024
Threads
0
Messages
26
Reaction score
9
Location
Atlanta, GA
Vehicles
2023 Ford F-150 Lighting XLT
Occupation
IT
Well. Let me add some details about the FLash.. I added the wiring for it..

Also the over head console doesnt have the cutouts for the sensors.. I added them as well..

So its much more involved than jsut adding it to a truck that has the blank..

What other wiring would I need to add for the xlt and what cutouts or where do they go. I guess I just drill it out?


Jesse-Infotainment

Well-known member
First Name
Jesse
Joined
May 27, 2021
Threads
1
Messages
756
Reaction score
764
Location
Dallas
Vehicles
2024 F150 Lightning Flash
What other wiring would I need to add for the xlt and what cutouts or where do they go. I guess I just drill it out?
Three wires. Power, Ground and lin bus

power Pin 15 C2280C
Lin Bus - Pin 36 C2280E

These are at the BCM.


MJFlanigan

Active member
First Name
Michael
Joined
Oct 7, 2024
Threads
0
Messages
26
Reaction score
9
Location
Atlanta, GA
Vehicles
2023 Ford F-150 Lighting XLT
Occupation
IT
Three wires. Power, Ground and lin bus

power Pin 15 C2280C
Lin Bus - Pin 36 C2280E

These are at the BCM.
What wiring should I use and do I need to run them from up at the top? Any other photos you can share. The bcm and other pieces make sense. Still confused on the linbus a little


Sponsored

Jesse-Infotainment

Well-known member
First Name
Jesse
Joined
May 27, 2021
Threads
1
Messages
756
Reaction score
764
Location
Dallas
Vehicles
2024 F150 Lightning Flash
What wiring should I use and do I need to run them from up at the top? Any other photos you can share. The bcm and other pieces make sense. Still confused on the linbus a little


Ford F-150 Lightning Ford Perimeter Plus Security System 1738779012997-5d


mrau

Well-known member
Joined
Feb 2, 2024
Threads
5
Messages
374
Reaction score
500
Location
Michigan
Vehicles
23 Lariat⚡ER

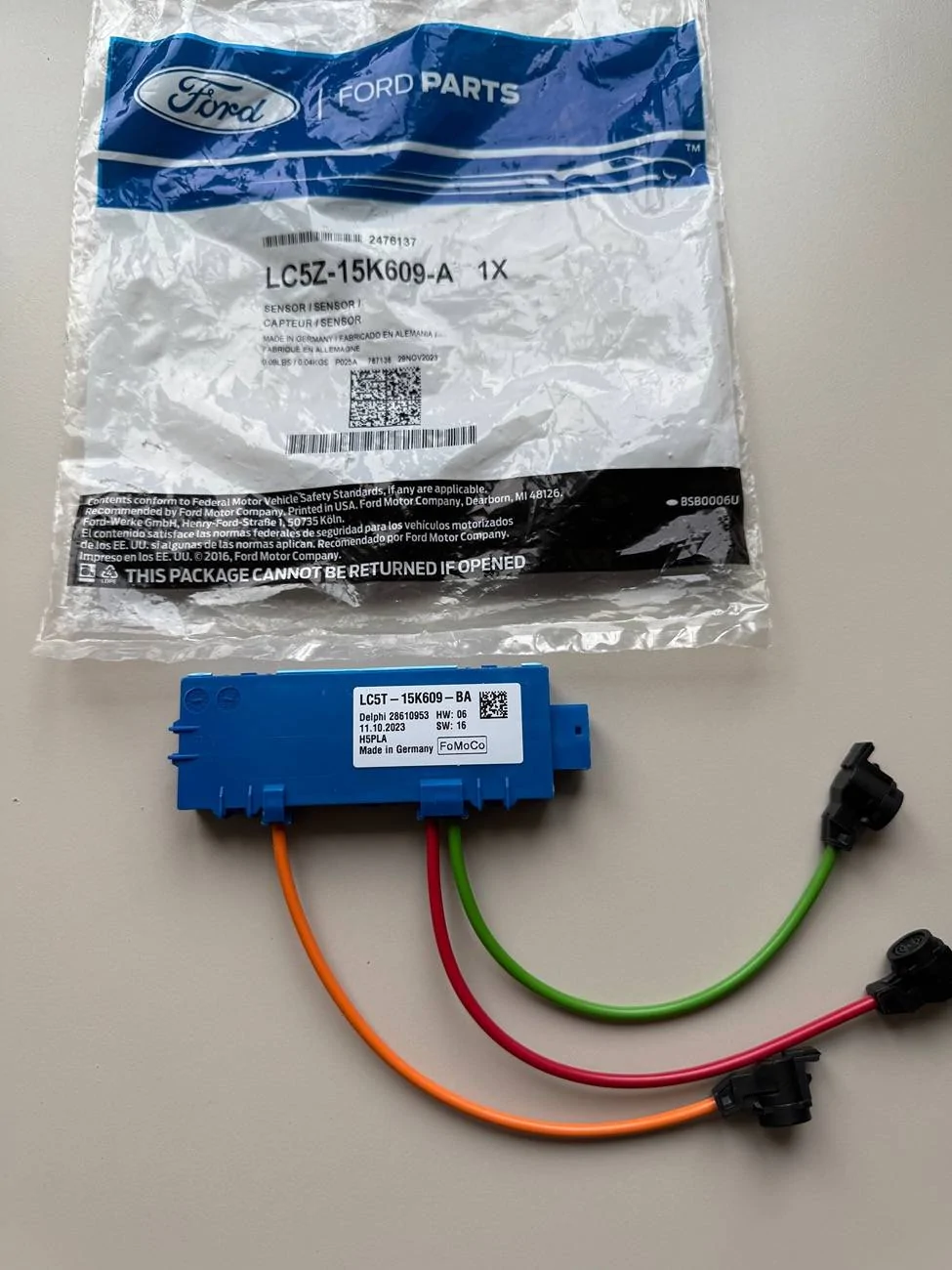

Added the Security Pack to my '23 Lariat today. Thanks to everyone for postings here and on the Gen 14 forum.

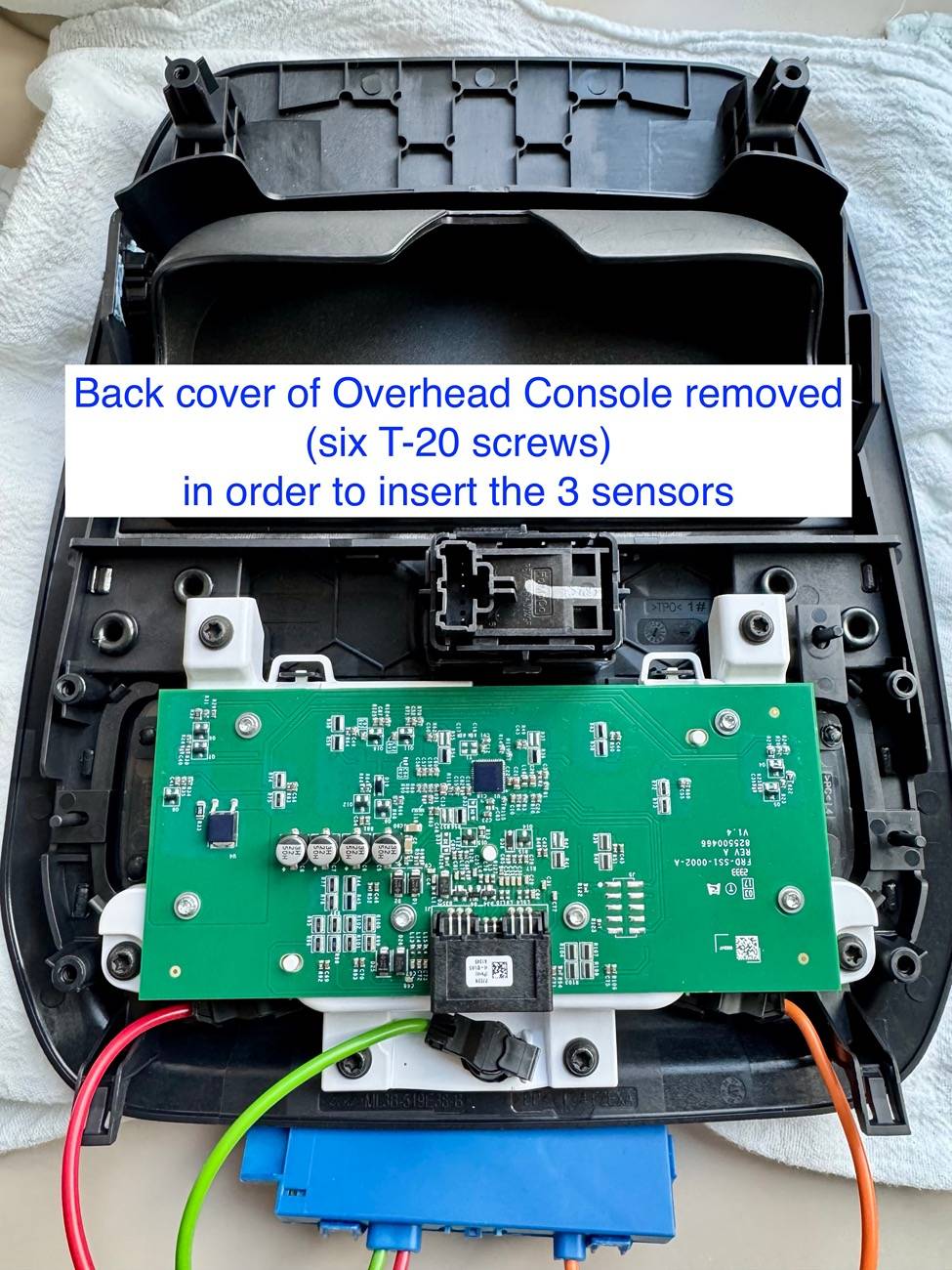

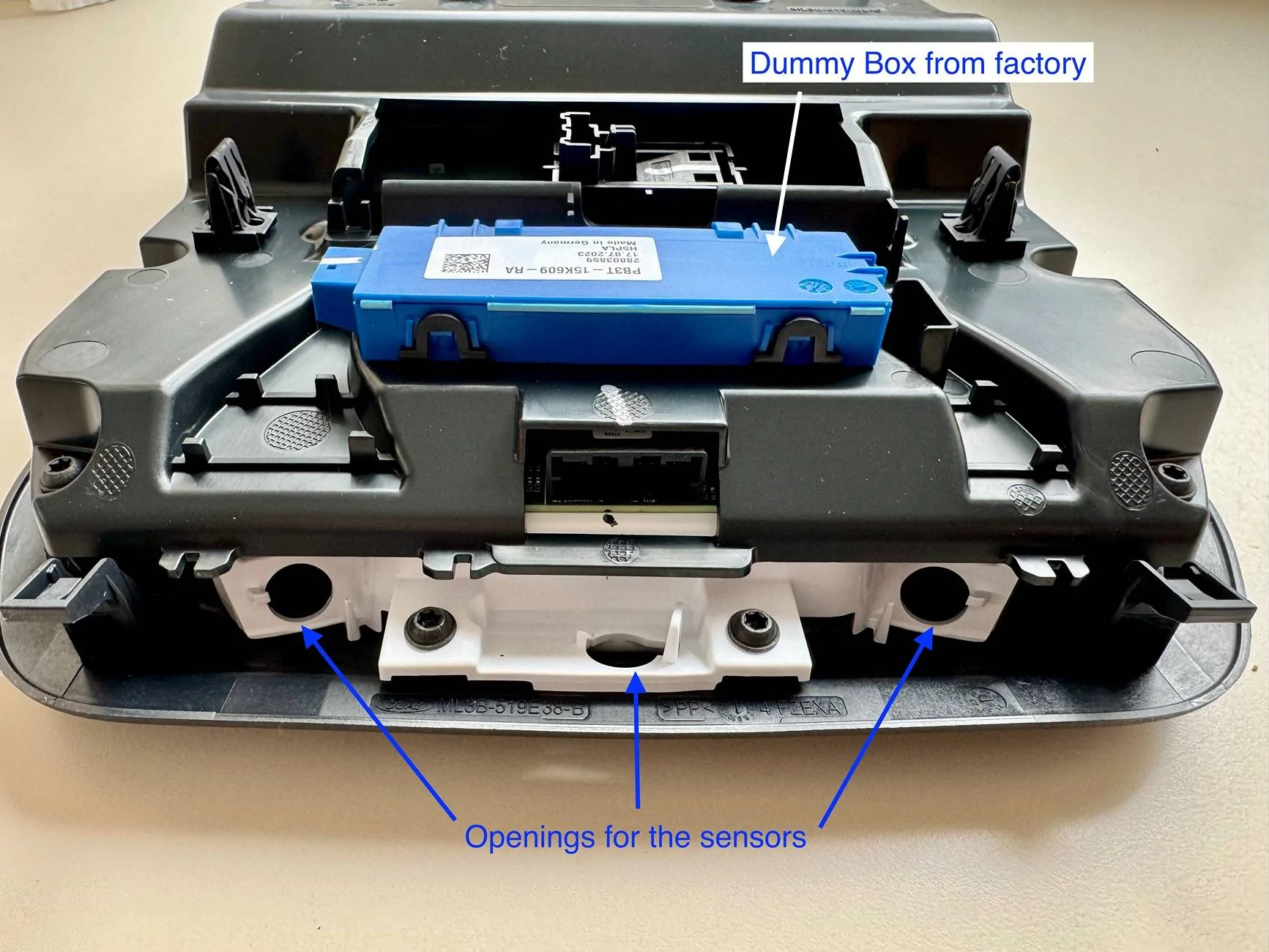

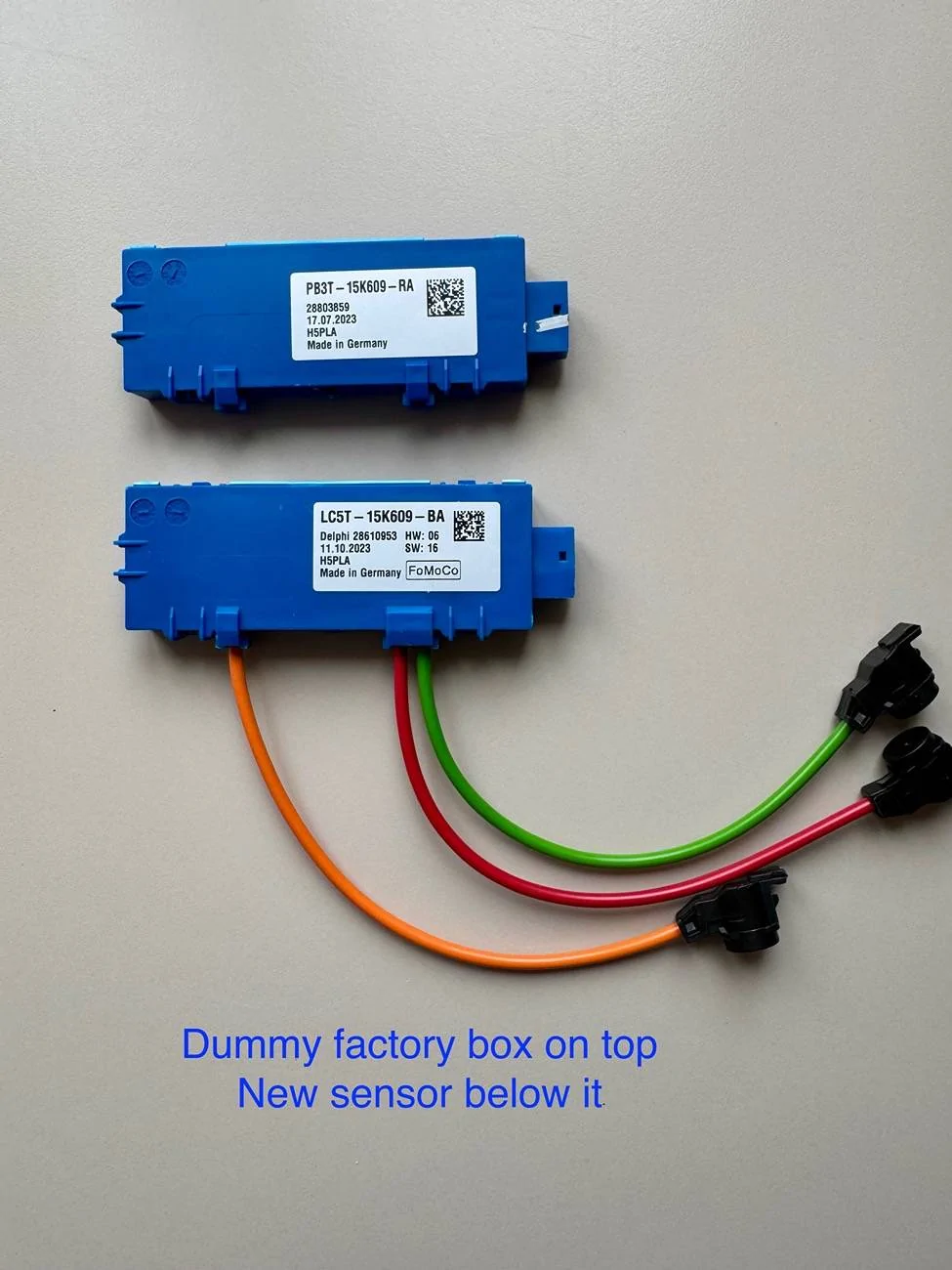

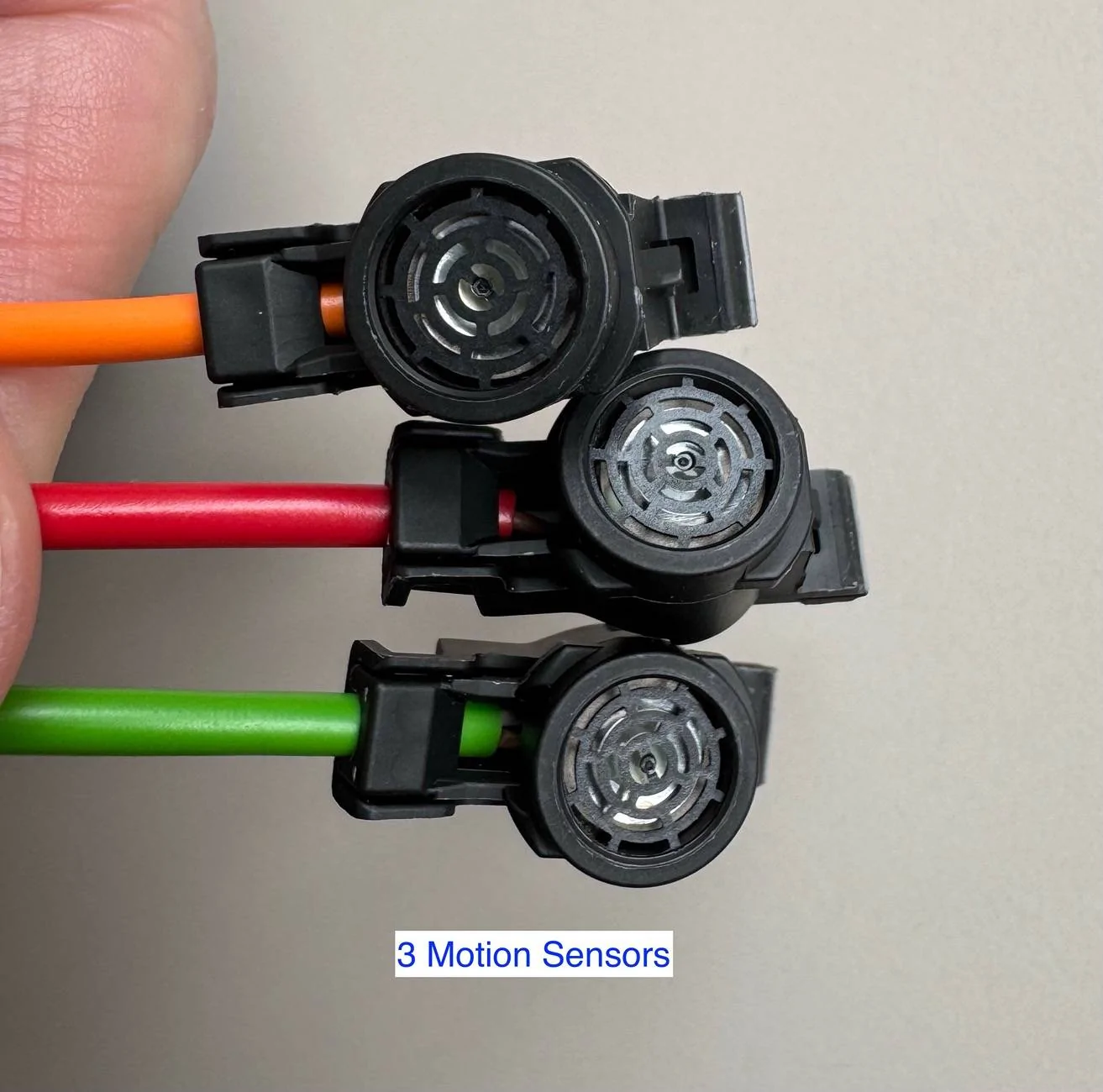

Overall it went as planned. I did have the factory blue dummy box that was connected to wiring harness, but no pins or leads in the box. I also had to remove the back cover of console after I had it out. It was only way I could get the sensors into position, The middle sensor was the most difficult, just took some finesse.

A big thank you to @bmwhitetx for all the FORSCAN info. Made that part a lot easier.
Before disconnecting FORSCAN I did a BCM LIN Module Config using the "wrench" icon on left side of FORSCAN screen. Then I cleared out the DTCs and all was good.

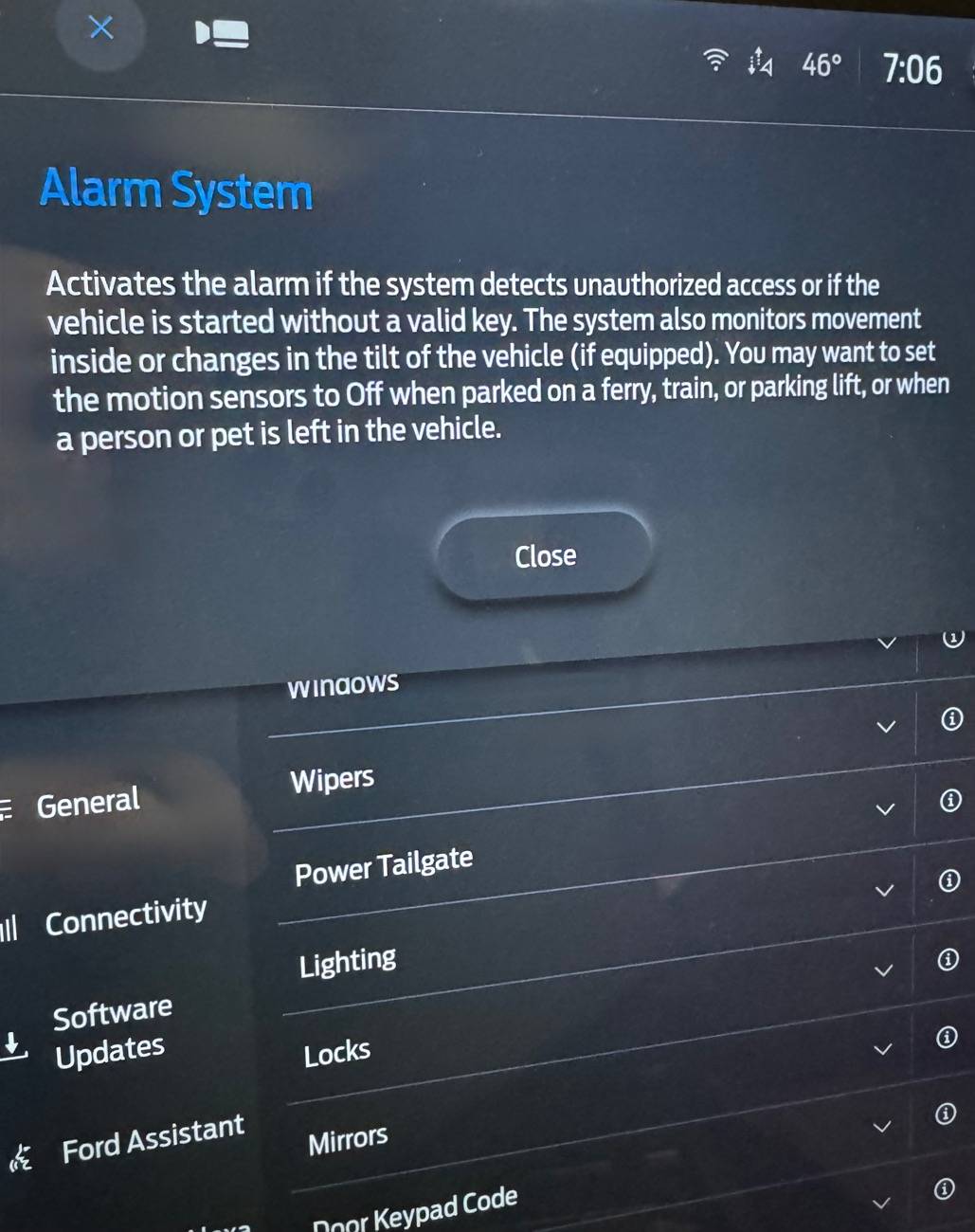

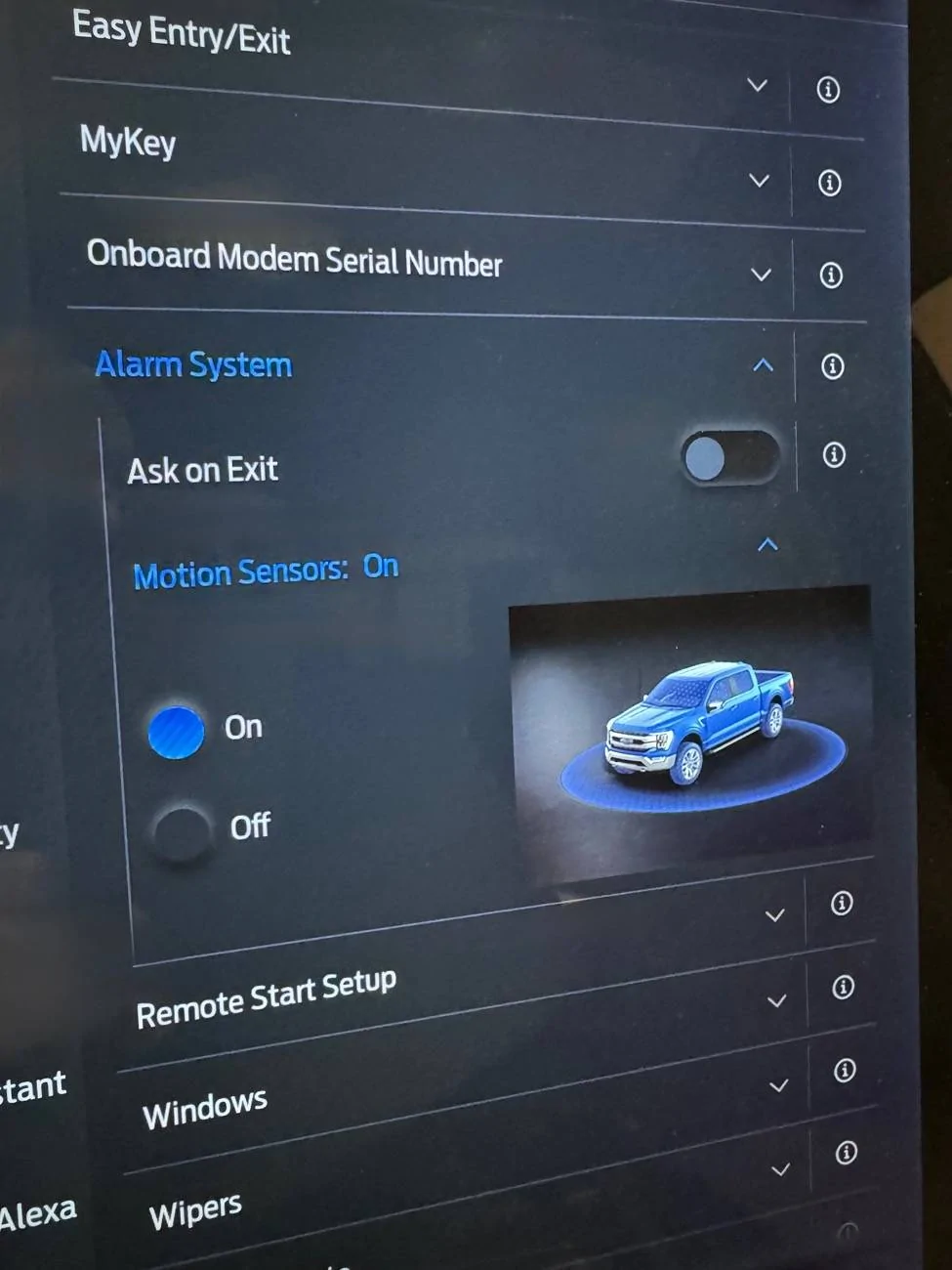

Tested the motion alarm by waving my arm through the open window. Horn sounded and I also got an alert on my phone from Ford Pass app. (nice surprise).

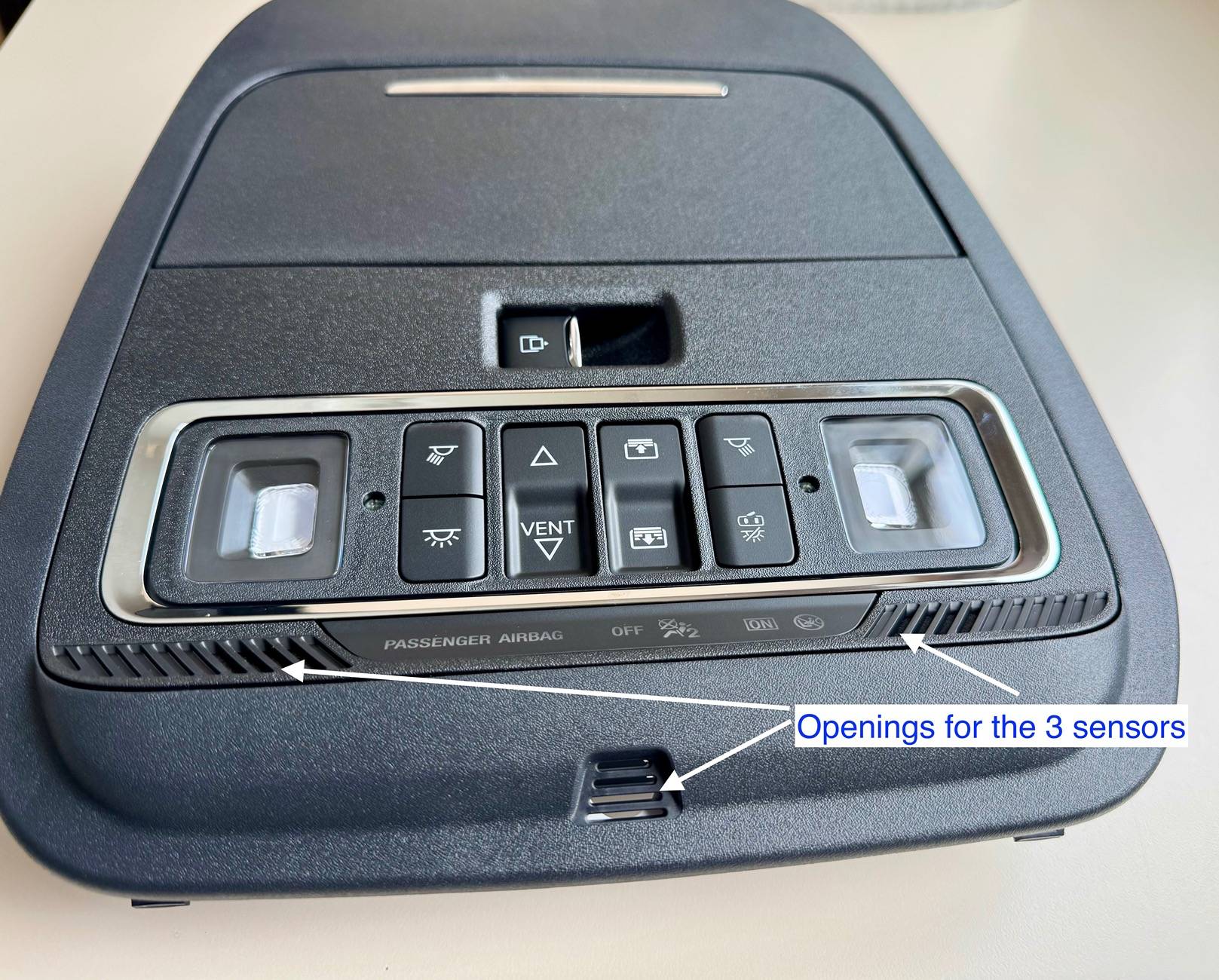

Here are some photos I took. All in all it seemed a worthwhile project.


Ford F-150 Lightning Ford Perimeter Plus Security System IMG_3206


Ford F-150 Lightning Ford Perimeter Plus Security System IMG_3207



Ford F-150 Lightning Ford Perimeter Plus Security System IMG_3215


Ford F-150 Lightning Ford Perimeter Plus Security System IMG_3209



Ford F-150 Lightning Ford Perimeter Plus Security System IMG_3211


Ford F-150 Lightning Ford Perimeter Plus Security System IMG_3214


Ford F-150 Lightning Ford Perimeter Plus Security System IMG_3220



Ford F-150 Lightning Ford Perimeter Plus Security System IMG_3219


MJFlanigan

Active member
First Name
Michael
Joined
Oct 7, 2024
Threads
0
Messages
26
Reaction score
9
Location
Atlanta, GA
Vehicles
2023 Ford F-150 Lighting XLT
Occupation
IT
Added the Security Pack to my '23 Lariat today. Thanks to everyone for postings here and on the Gen 14 forum.

Overall it went as planned. I did have the factory blue dummy box that was connected to wiring harness, but no pins or leads in the box. I also had to remove the back cover of console after I had it out. It was only way I could get the sensors into position, The middle sensor was the most difficult, just took some finesse.

A big thank you to @bmwhitetx for all the FORSCAN info. Made that part a lot easier.
Before disconnecting FORSCAN I did a BCM LIN Module Config using the "wrench" icon on left side of FORSCAN screen. Then I cleared out the DTCs and all was good.

Tested the motion alarm by waving my arm through the open window. Horn sounded and I also got an alert on my phone from Ford Pass app. (nice surprise).

Here are some photos I took. All in all it seemed a worthwhile project.



















What did the harness look like on the inside?


mrau

Well-known member
Joined
Feb 2, 2024
Threads
5
Messages
374
Reaction score
500
Location
Michigan
Vehicles
23 Lariat⚡ER
What did the harness look like on the inside?
There are 3 separate harness to unclip from the console. One for lights, one for rear sliding window switch and one for the motion sensor.

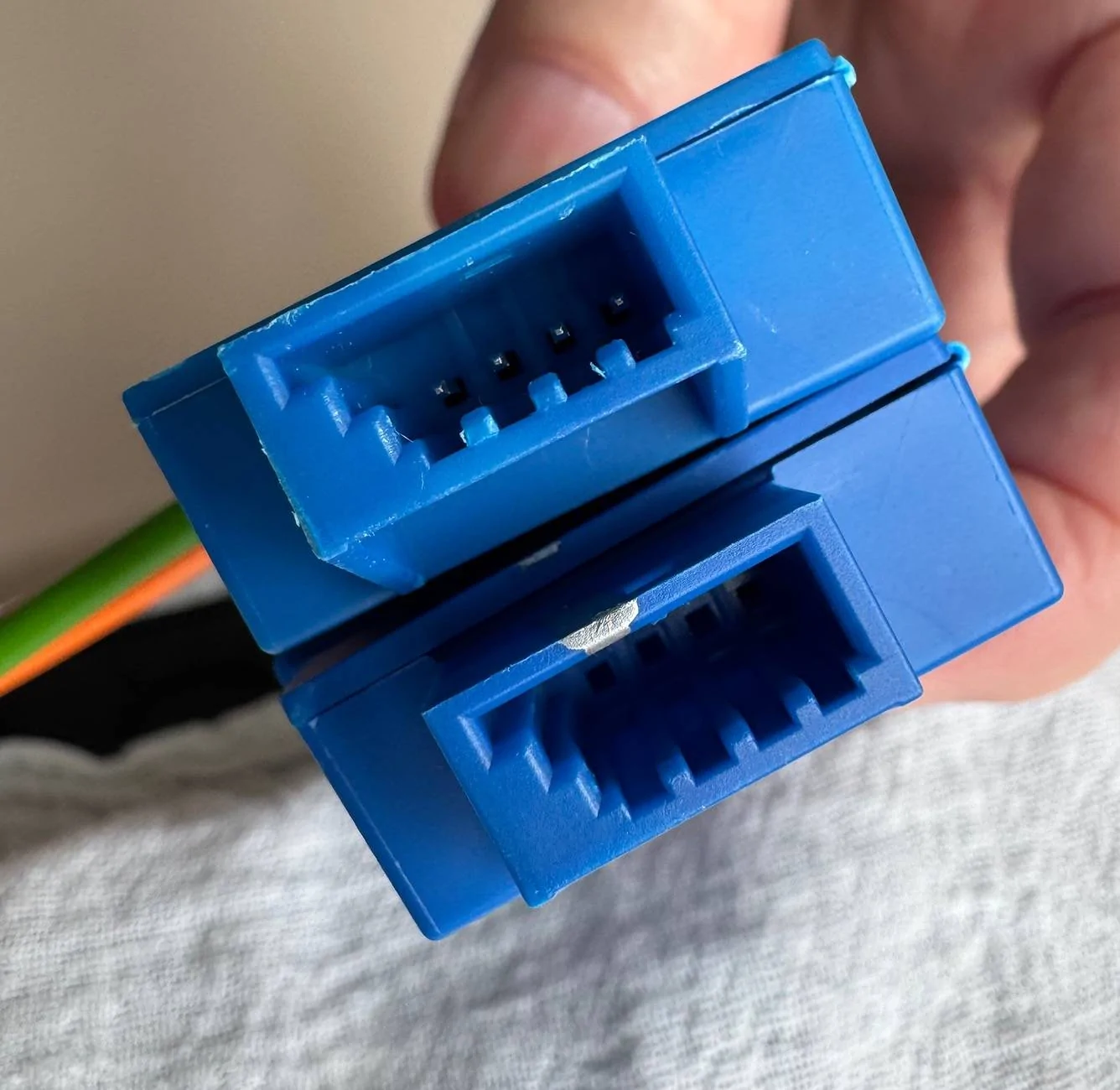

Didn't get any pictures of the motion harness, but here is a photo of the blue boxes where the harness plugs into. The "dummy" blue box (bottom in photo) did not have any pins in its connector.

Ford F-150 Lightning Ford Perimeter Plus Security System IMG_3213


MJFlanigan

Active member
First Name
Michael
Joined
Oct 7, 2024
Threads
0
Messages
26
Reaction score
9
Location
Atlanta, GA
Vehicles
2023 Ford F-150 Lighting XLT
Occupation
IT
There are 3 separate harness to unclip from the console. One for lights, one for rear sliding window switch and one for the motion sensor.

Didn't get any pictures of the motion harness, but here is a photo of the blue boxes where the harness plugs into. The "dummy" blue box (bottom in photo) did not have any pins in its connector.

This is helpful. I'm trying to find the harness part number or anything for the whole piece if it doesn't have the power or wires since I have a xlt ER lightning.
