gorwell

Well-known member
First Name
Andrew
Joined
Jul 19, 2021
Threads
18
Messages
816
Reaction score
1,114
Location
Sacramento
Vehicles
Ioniq 5 / XLT Standard
F-150 Lightning window sticker I obtained.

Platinum:

Ford F-150 Lightning F-150 Lightning Official EPA Range MPGe Revealed in Window Sticker (Base + Extended Range)! 1647534462501-

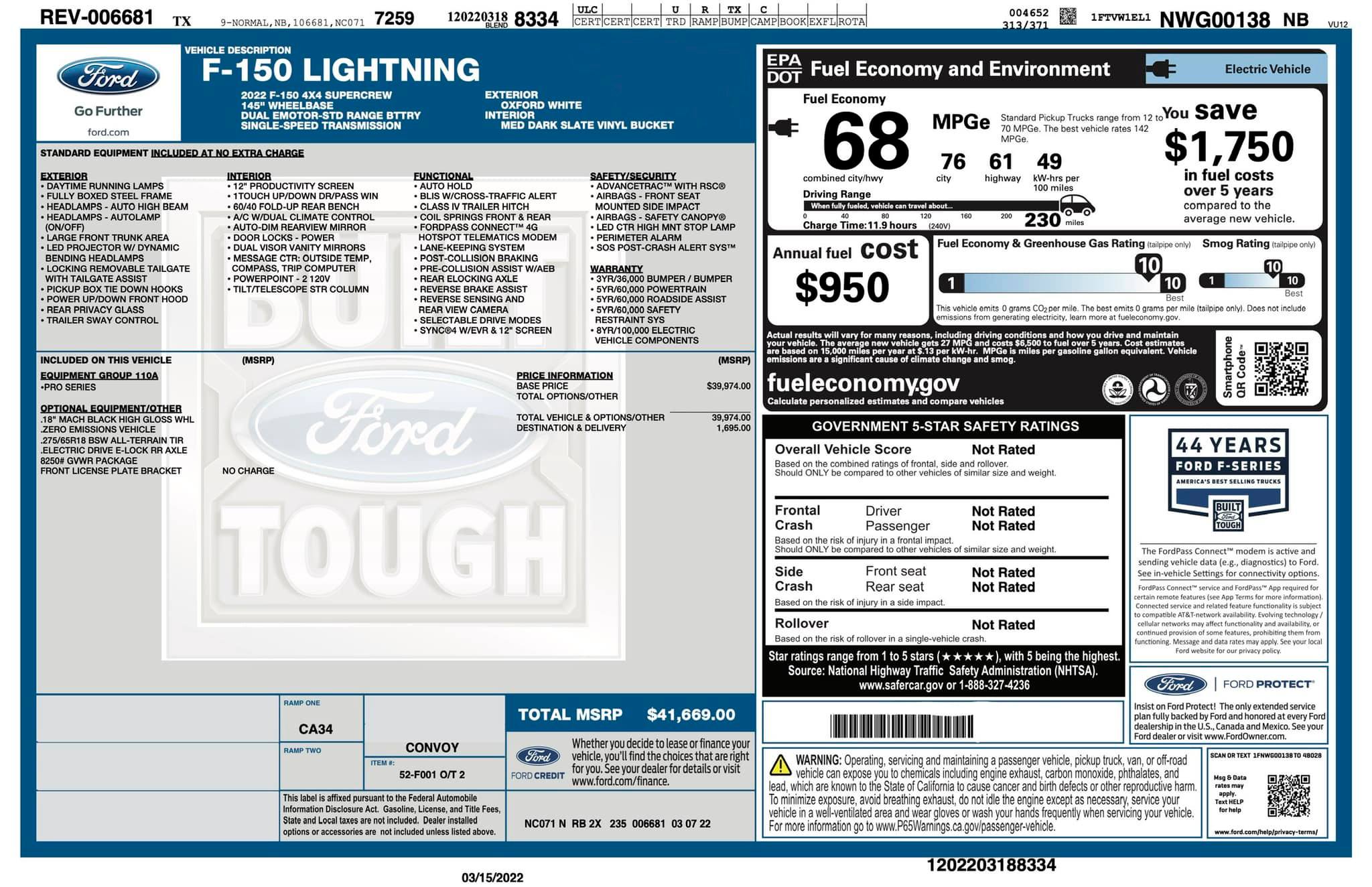

Base Lightning sticker:

Ford F-150 Lightning F-150 Lightning Official EPA Range MPGe Revealed in Window Sticker (Base + Extended Range)! f150-lightning-window-sticker-epa-m




Base Extended Range:

Ford F-150 Lightning F-150 Lightning Official EPA Range MPGe Revealed in Window Sticker (Base + Extended Range)! 1647534873969-



Assuming it's real, this would be the first EPA ranges. I compared w/ Rivian:


Kwh/100 Miles:

R1T: 48

Lightning Standard: 49
Lightning Extended: 48
Lightning Platinum: 51


Combined:

R1T: 70 MPGe

Lightning Standard: 68
Lightning Extended: 70
Lightning Platinum:66

City:

R1T: 74 MPGe

Lightning Standard: 76
Lightning Extended: 78
Lightning Platinum: 73


Highway:

R1T: 66

Lightning Standard: 61
Lightning Extended:63
Lightning Platinum:60


As you would expect given the bigger Truck, the Lightning takes a bigger hit at freeway speeds.

Then, the Platinum (as expected) is less efficient overall. However, the sticker still states a 300 mile range. But, I believe we were expecting ~270-280 based on previous comments.



Updated with consolidated window stickers by @vandy1981
(source: https://www.f150gen14.com/forum/thr...-sticker-base-extended-range.9441/post-185046)

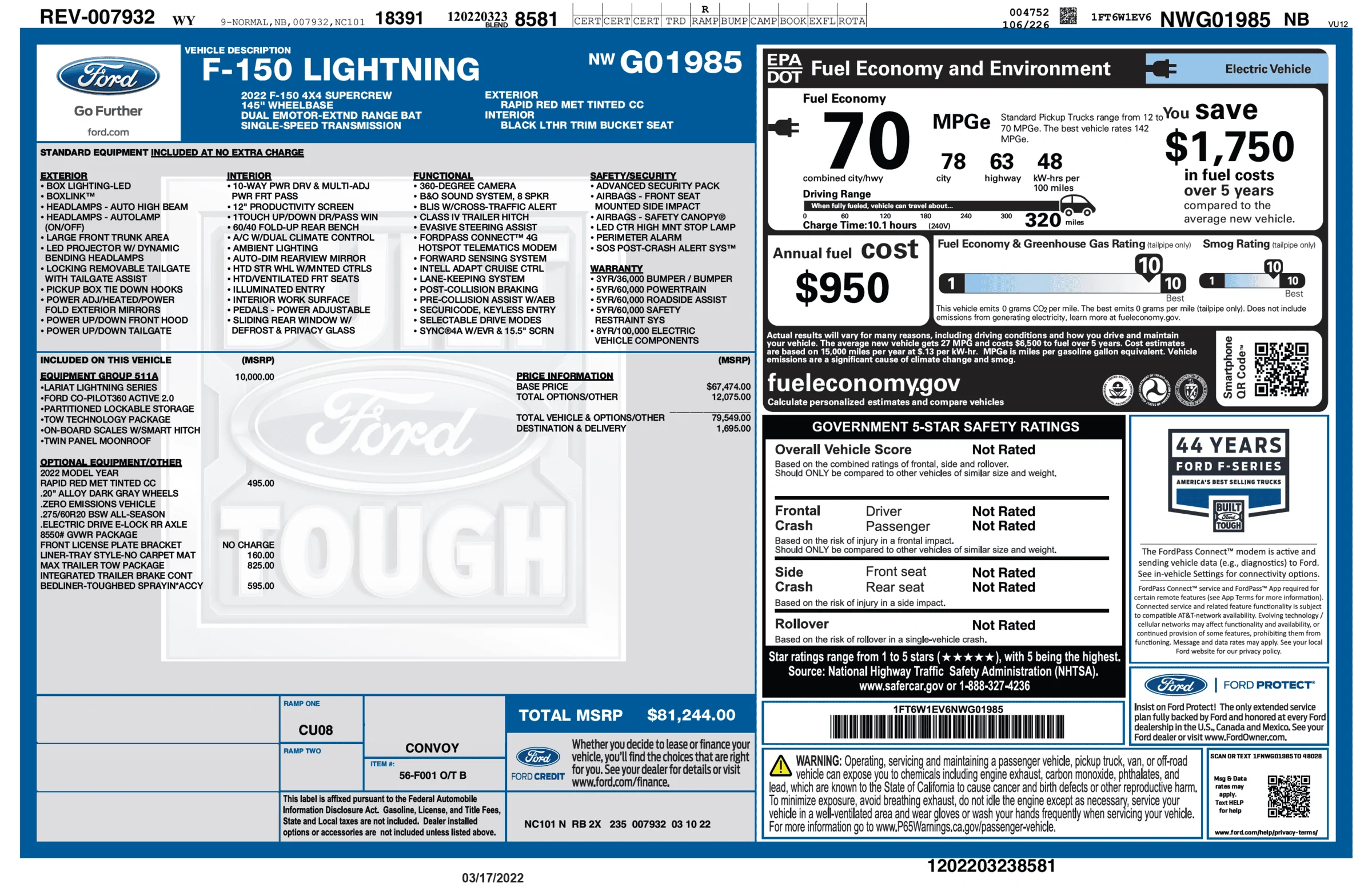

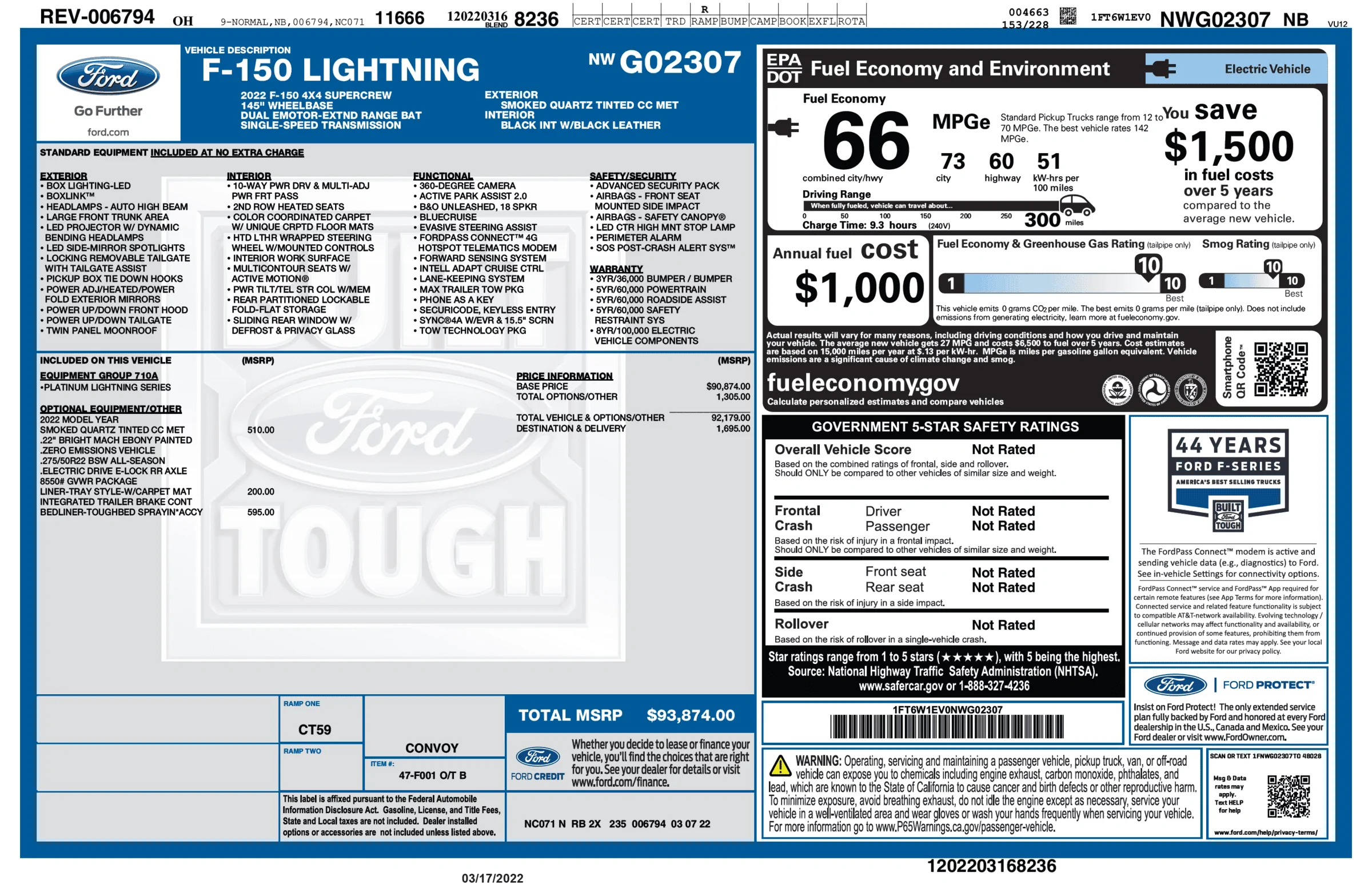

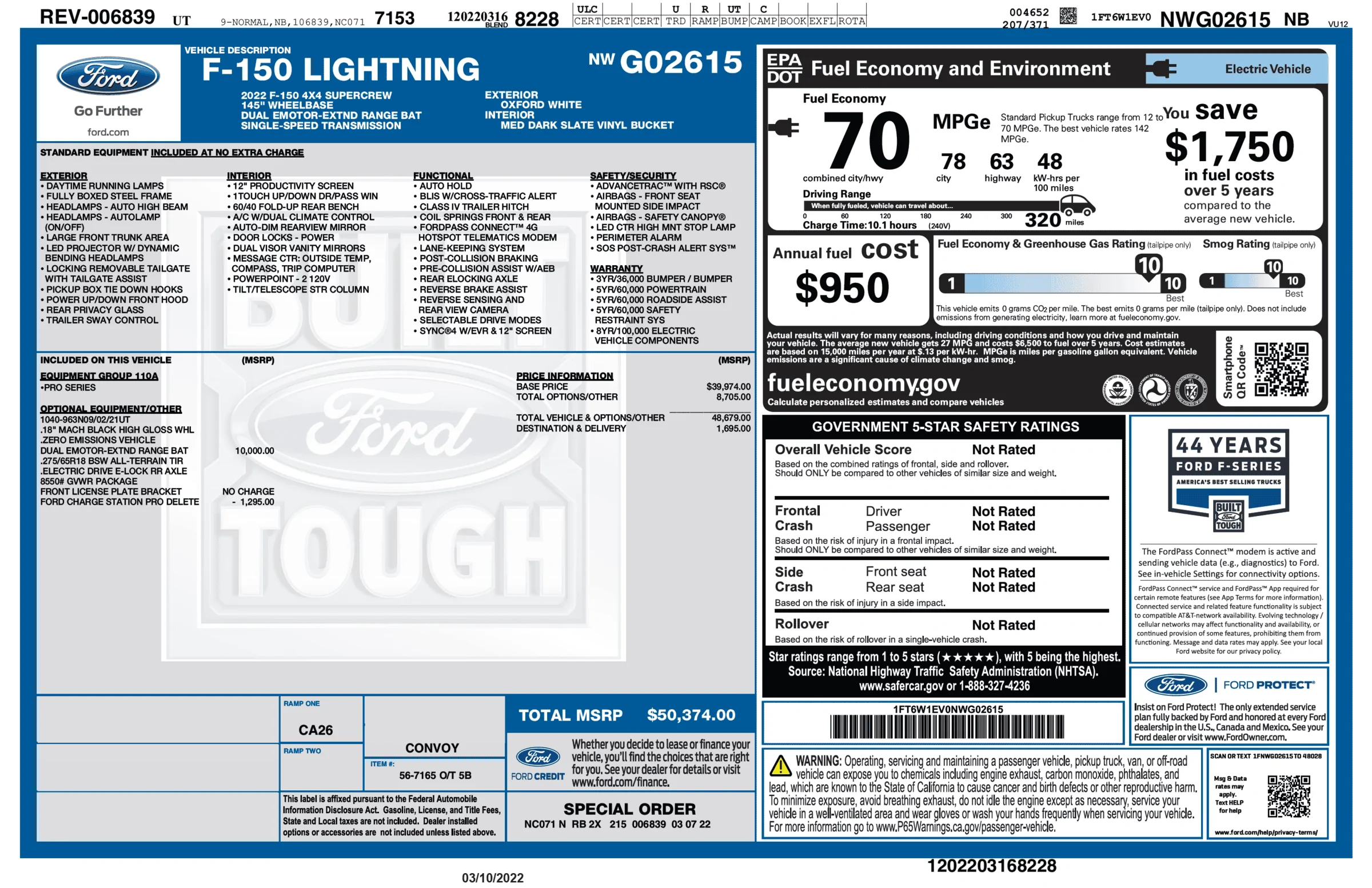

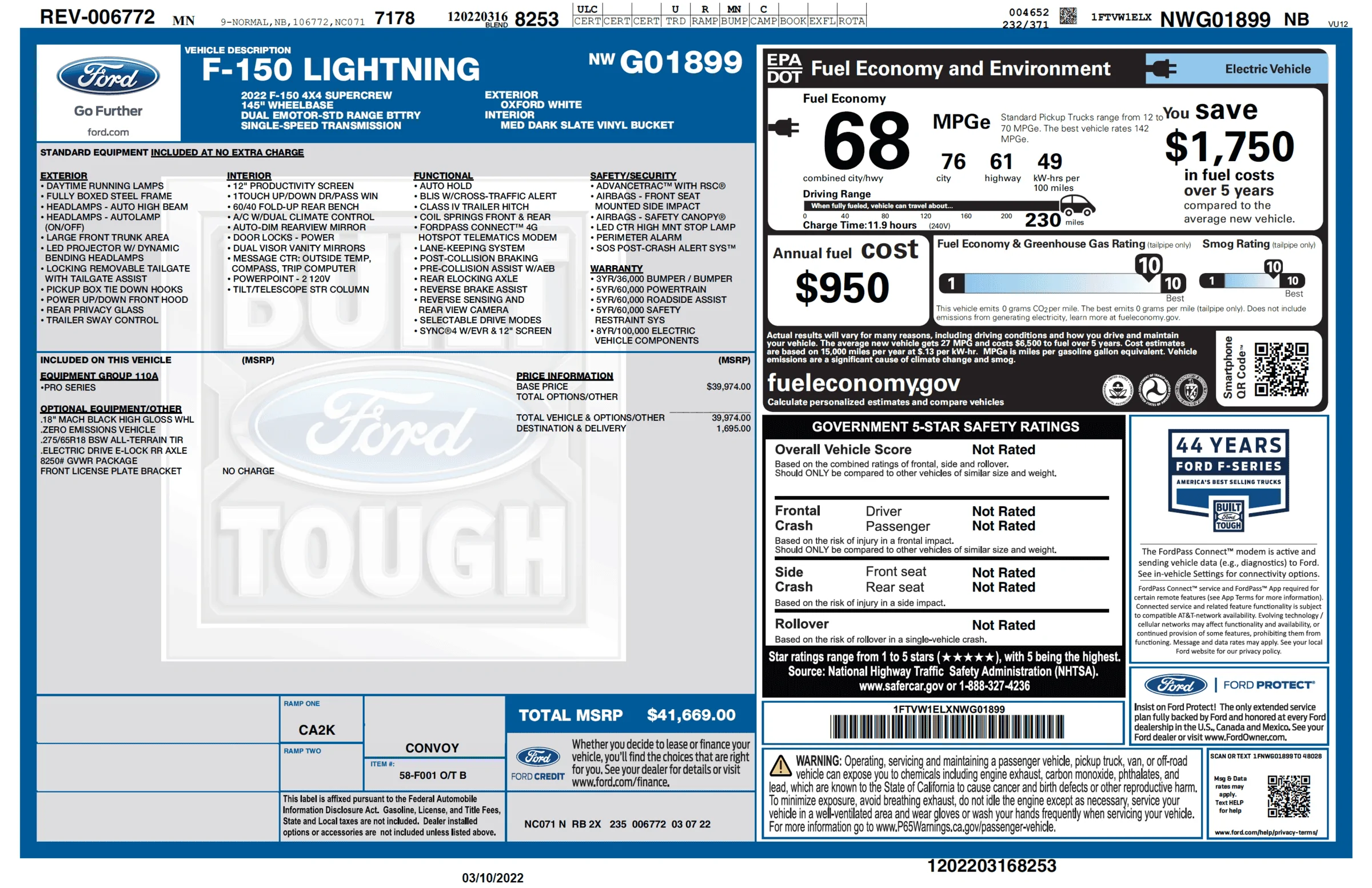

Consolidated window stickers for Pro SR, Pro ER, Lariat ER and Platinum. I couldn't find any XLT or Lariat SR window stickers on the vehicles that were listed on Auto Trader. Someone with more time may be able to find them by randomly entering VINs.

Ford F-150 Lightning F-150 Lightning Official EPA Range MPGe Revealed in Window Sticker (Base + Extended Range)! 1647536394991-


Ford F-150 Lightning F-150 Lightning Official EPA Range MPGe Revealed in Window Sticker (Base + Extended Range)! 1647536402401-


Ford F-150 Lightning F-150 Lightning Official EPA Range MPGe Revealed in Window Sticker (Base + Extended Range)! 1647536408566-


Ford F-150 Lightning F-150 Lightning Official EPA Range MPGe Revealed in Window Sticker (Base + Extended Range)! 1647536414291-
Sponsored


Last edited by a moderator:

greenne

Well-known member
First Name
Nathan
Joined
Jul 13, 2021
Threads
27
Messages
1,895
Reaction score
2,303
Location
Niskayuna, NY
Vehicles
2022 Lightning (Ordered 6/19, delivered 10/28/22)
F-150 Lightning window sticker I found.



Assuming it's real, this would be the first EPA ranges. I compared w/ Rivian:



Kwh/100 Miles:

R1T: 48

Lightning: 49

~2% less efficient.

Combined:

R1T: 70 MPGe

Lightning: 68

~3% less efficient.

City:

R1T: 74 MPGe

Lightning: 76

~3% less efficient.

Highway:

R1T: 66

Lightning: 61

~8% less efficient.

As you would expect given the bigger Truck, the Lightning takes a bigger hit at freeway speeds.

One small correction...the Lightning is actually slightly MORE efficient in the city than the Rivian!


greenne

Well-known member
First Name
Nathan
Joined
Jul 13, 2021
Threads
27
Messages
1,895
Reaction score
2,303
Location
Niskayuna, NY
Vehicles
2022 Lightning (Ordered 6/19, delivered 10/28/22)
If we extrapolate this out to the larger battery with

230mi range from 98KwH battery = 2.35 mi/KwH

Range for the extended battery would be 2.35* 131 KwH = 307.44mi**

**Assuming there is a weight penalty mileage may be right at Ford estimate of 300mi**

As always this is very hypothetical, YMMV.


vandy1981

Well-known member
Joined
Jun 21, 2021
Threads
62
Messages
1,507
Reaction score
2,461
Location
Tennessee
Vehicles
'19 Jaguar I-Pace, '22 Lightning Lariat ER
Occupation
Plumber
Extended range sticker below. Note EPA range is 300 which beats the originally advertised target EPA range for the Platinum.

I wonder why this hasn't been publicized yet?

Ford F-150 Lightning F-150 Lightning Official EPA Range MPGe Revealed in Window Sticker (Base + Extended Range)! 1647534462501

Last edited:

Sponsored

gpbst3

Member
Joined
Sep 6, 2021
Threads
1
Messages
23
Reaction score
6
Location
PA
Vehicles
f150
If we extrapolate this out to the larger battery with

230mi range from 98KwH battery = 2.35 mi/KwH

Range for the extended battery would be 2.35* 131 KwH = 307.44mi**

**Assuming there is a weight penalty mileage may be right at Ford estimate of 300mi**

As always this is very hypothetical, YMMV.

On an XLT trim its an extra 20k for approximately 70 more miles per charge. That will be a tough pill to swallow.


vandy1981

Well-known member
Joined
Jun 21, 2021
Threads
62
Messages
1,507
Reaction score
2,461
Location
Tennessee
Vehicles
'19 Jaguar I-Pace, '22 Lightning Lariat ER
Occupation
Plumber
And a Pro ER with 320 miles of EPA range!!!

Ford F-150 Lightning F-150 Lightning Official EPA Range MPGe Revealed in Window Sticker (Base + Extended Range)! 1647534873969


greenne

Well-known member
First Name
Nathan
Joined
Jul 13, 2021
Threads
27
Messages
1,895
Reaction score
2,303
Location
Niskayuna, NY
Vehicles
2022 Lightning (Ordered 6/19, delivered 10/28/22)
Extended range sticker below. I wonder why this hasn't been publicized yet?

Something else to consider...for the ER truck posted above its a Platinum trim truck. Ford has said they expected that trim to be at 280mi range due to the larger 22in wheels. So I wonder if they were off or the ER XLT/Lariats will get better mpgE (and range) than this sticker.


Vorador

Well-known member
Joined
May 27, 2021
Threads
5
Messages
218
Reaction score
293
Location
California
Vehicles
F150 Lightning, Ford Escape
And a Pro ER with 320 miles of EPA range!!!

The 48 kWh per 100 miles doesn't come anywhere close to 320 miles of range with a 131 kWh battery. That would only be 272.91 miles. Not sure where the 320 miles is coming from unless they made the extended range battery bigger. Would need a 154 kWh battery to go 320 miles.


Sponsored
OP
OP
gorwell

gorwell

Well-known member
First Name
Andrew
Joined
Jul 19, 2021
Threads
18
Messages
816
Reaction score
1,114
Location
Sacramento
Vehicles
Ioniq 5 / XLT Standard
The 48 kWh per 100 miles doesn't come anywhere close to 320 miles of range with a 131 kWh battery. That would only be 272.91 miles. Not sure where the 320 miles is coming from unless they made the extended range battery bigger. Would need a 154 kWh battery to go 320 miles.

This is all just "funky" EPA ev math. Until real range tests happen, whatever they note here can be taken as a rough estimate.

Rivian is the same w/ the range suggesting 281, but real world tests have it at EPA range (Edmunds tested it fully).

Same w/ Ioniq 5 as well.


greenne

Well-known member
First Name
Nathan
Joined
Jul 13, 2021
Threads
27
Messages
1,895
Reaction score
2,303
Location
Niskayuna, NY
Vehicles
2022 Lightning (Ordered 6/19, delivered 10/28/22)
The 48 kWh per 100 miles doesn't come anywhere close to 320 miles of range with a 131 kWh battery. That would only be 272.91 miles. Not sure where the 320 miles is coming from unless they made the extended range battery bigger. Would need a 154 kWh battery to go 320 miles.
There's a discussion about this on the Lightning FB group. To summarize the EPA sticker includes charging losses(wall to wheel is how Tom M) describes it, so there will be an 8-12% charging loss factored into the KwH/100mi calculation. In the real world you don't see this( except on your power bill)--it does not impact the battery-->motor connection only from the pug to to the battery.

**Credit to Tom Molog for the explanation--he can explain it much better than I can

OP
OP
gorwell

gorwell

Well-known member
First Name
Andrew
Joined
Jul 19, 2021
Threads
18
Messages
816
Reaction score
1,114
Location
Sacramento
Vehicles
Ioniq 5 / XLT Standard
To summarize the EPA sticker includes charging losses(wall to wheel is how Tom M) describes it, so there will be an 8-12% charging loss factored into the KwH/100mi calculation. In the real world you don't see this( except on your power bill)--it does not impact the battery-->motor connection only from the pug to to the battery.
Thanks! I remember Tom talking about this and I didn't really take it in. But, now it makes sense.


greenne

Well-known member
First Name
Nathan
Joined
Jul 13, 2021
Threads
27
Messages
1,895
Reaction score
2,303
Location
Niskayuna, NY
Vehicles
2022 Lightning (Ordered 6/19, delivered 10/28/22)
All this is good info but subject to verification by real world tests. However its a good sign than Ford has a 20mi "buffer" from what they were saying for several months now with the 300mi "expectation".
