Please post the BDI manual once you get it. Good luck with the install(y)


yed19

Well-known member
First Name
Jay
Joined
Dec 6, 2021
Threads
8
Messages
337
Reaction score
287
Location
Washington
Vehicles
'22 F-150 Lightning Lariat, 2012 RR Sport HSE
Mine shipped today as well. Excited to better understand how it will function... 🙄😏


vandy1981

Well-known member
Joined
Jun 21, 2021
Threads
62
Messages
1,507
Reaction score
2,461
Location
Tennessee
Vehicles
'19 Jaguar I-Pace, '22 Lightning Lariat ER
Occupation
Plumber
I'm so happy that his HIS has shipped.


Sponsored

TaxmanHog

Moderator
Moderator
First Name
Noel
Joined
Jan 19, 2022
Threads
157
Messages
10,651
Reaction score
10,922
Location
SE. Mass.
Vehicles
2022 Lightning Lariat-ER Max Tow
Occupation
Retired
Awesome!!!


watchdoc

Well-known member
First Name
David
Joined
Jan 4, 2022
Threads
5
Messages
87
Reaction score
55
Location
27837
Vehicles
2022 Leaf SV+, 2016 Ram Big Horn
Occupation
watchmaker
Post spec sheets please!!

OP
OP

RDeFran

Well-known member
First Name
Rich
Joined
Apr 12, 2022
Threads
4
Messages
170
Reaction score
235
Location
37932
Vehicles
2020 GMC Sierra 3500HD AT4 SRW Duramax, 2010 M3
Occupation
Technician
I will scan them tommorrow. Tiny little book.


yed19

Well-known member
First Name
Jay
Joined
Dec 6, 2021
Threads
8
Messages
337
Reaction score
287
Location
Washington
Vehicles
'22 F-150 Lightning Lariat, 2012 RR Sport HSE
I posted these in a different forum. It's all the documentation that comes with it.

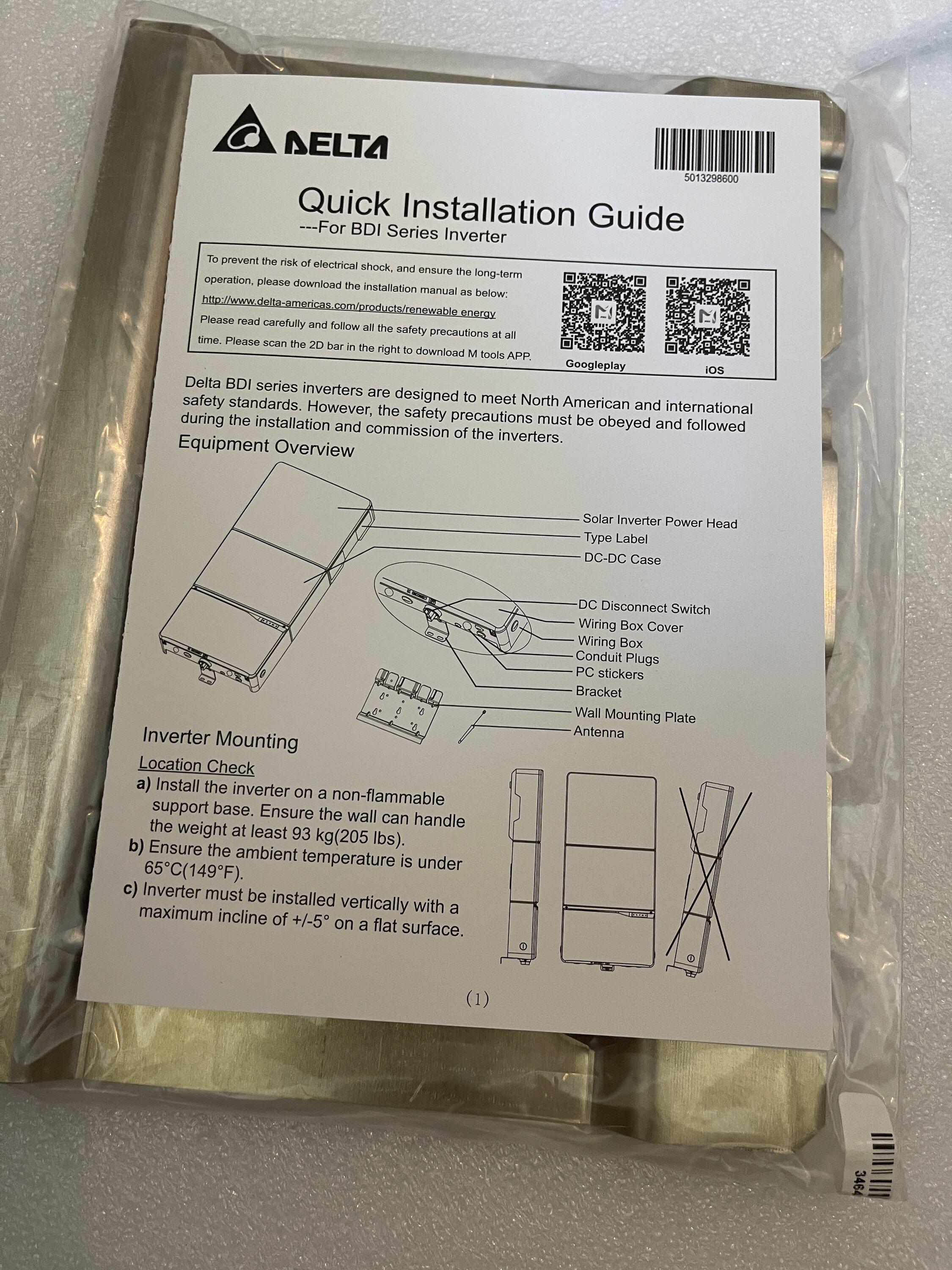

Ford F-150 Lightning My HiS (Home Integration System) has arrived! 33343016-88AC-477F-8B5A-3360310D4086

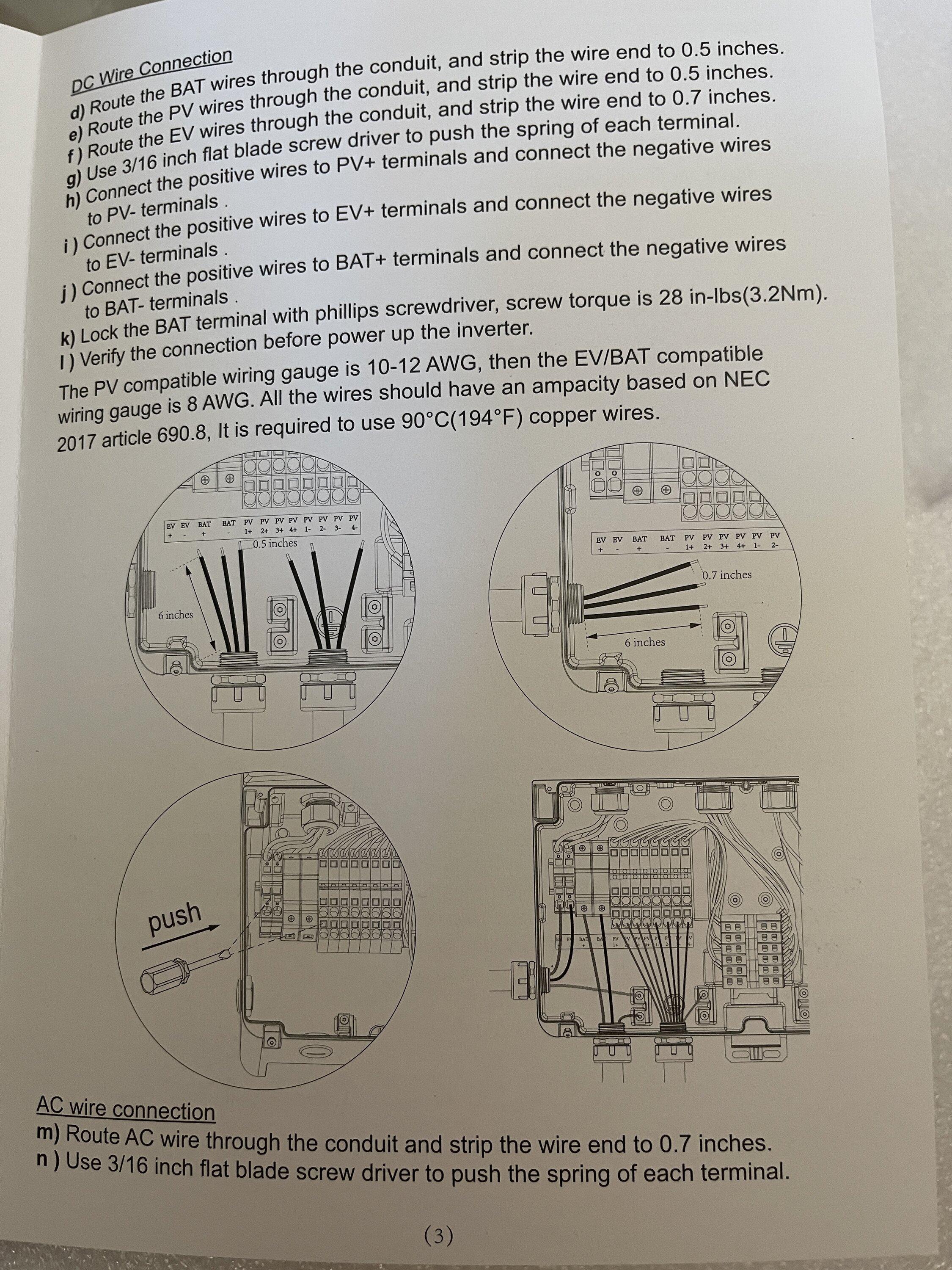

Ford F-150 Lightning My HiS (Home Integration System) has arrived! 47AB18AE-5A21-4437-9EC0-918E2B83307F

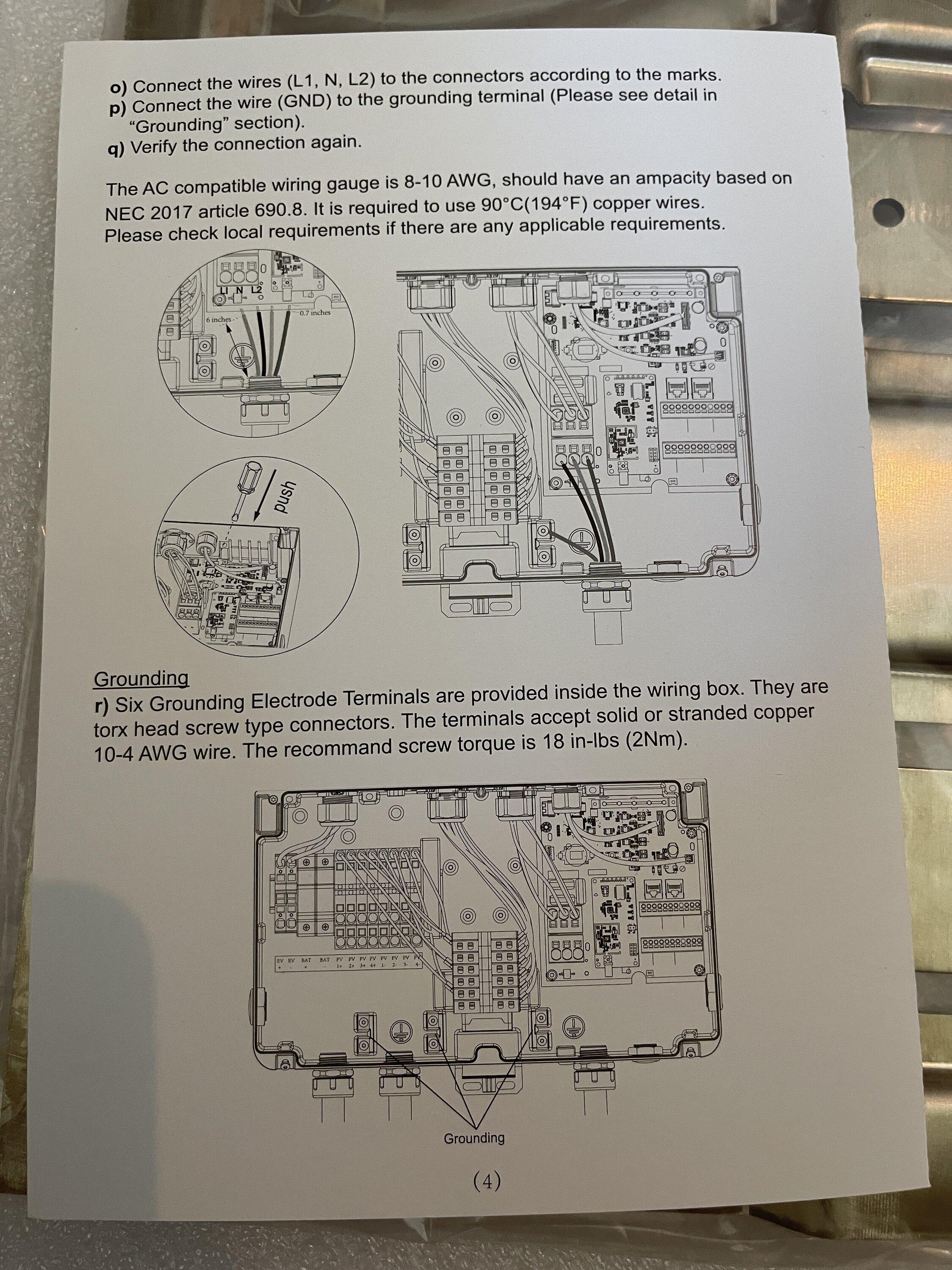

Ford F-150 Lightning My HiS (Home Integration System) has arrived! F7C4824E-20DA-4D24-8690-5EBA3CE24823


Ford F-150 Lightning My HiS (Home Integration System) has arrived! 29A0B7DF-8886-4781-873E-F6BE132BFED3


Sponsored
OP
OP

RDeFran

Well-known member
First Name
Rich
Joined
Apr 12, 2022
Threads
4
Messages
170
Reaction score
235
Location
37932
Vehicles
2020 GMC Sierra 3500HD AT4 SRW Duramax, 2010 M3
Occupation
Technician
That's pretty much it.


yed19

Well-known member
First Name
Jay
Joined
Dec 6, 2021
Threads
8
Messages
337
Reaction score
287
Location
Washington
Vehicles
'22 F-150 Lightning Lariat, 2012 RR Sport HSE
And this as well

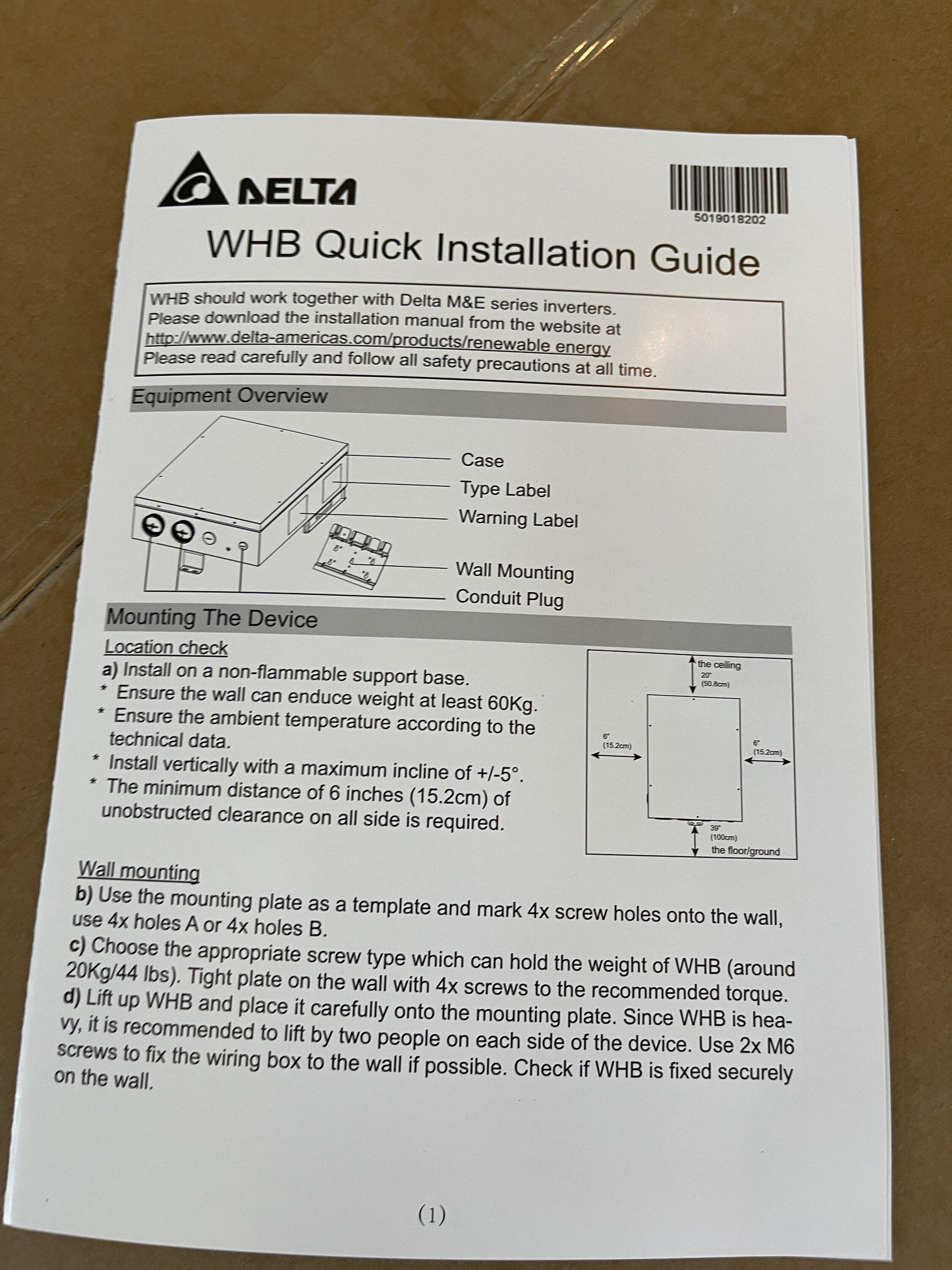

Ford F-150 Lightning My HiS (Home Integration System) has arrived! 34C130D4-DA20-4A86-B4BF-F707089C2062

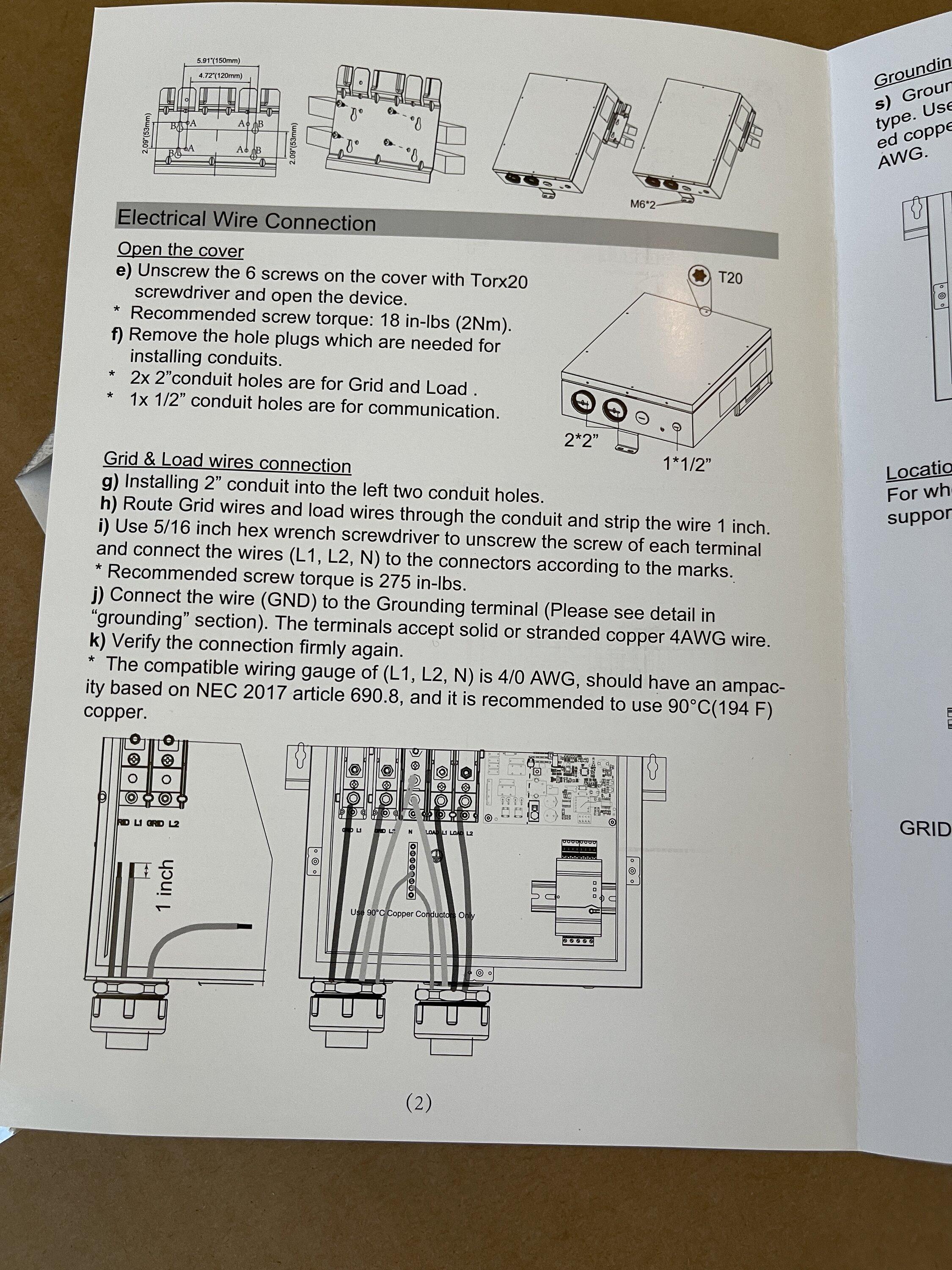

Ford F-150 Lightning My HiS (Home Integration System) has arrived! F589C65D-F017-4E7A-87D4-77B03145A6BE

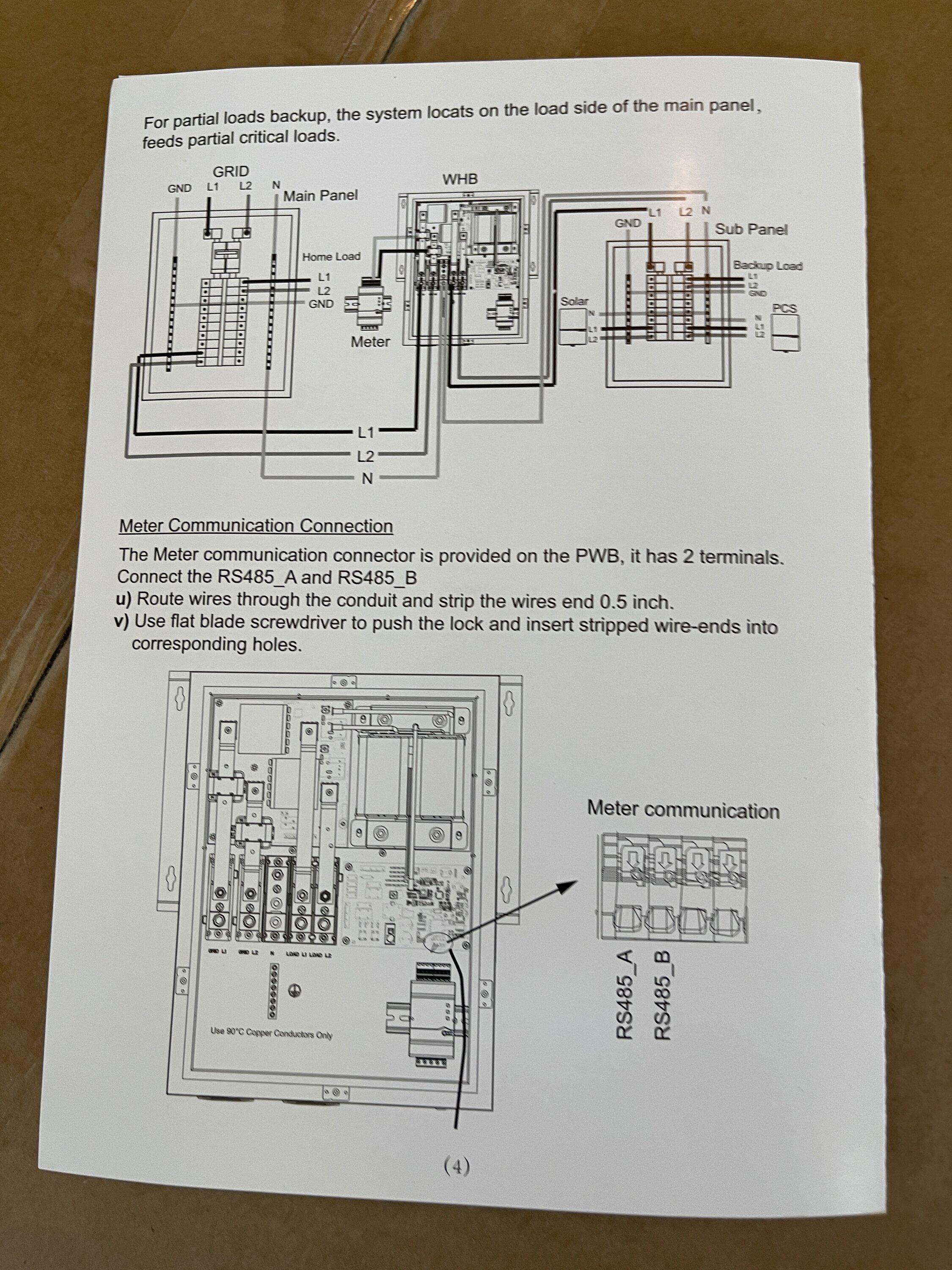

Ford F-150 Lightning My HiS (Home Integration System) has arrived! 17829DF4-B869-4F1B-A433-3D6781AB79E4

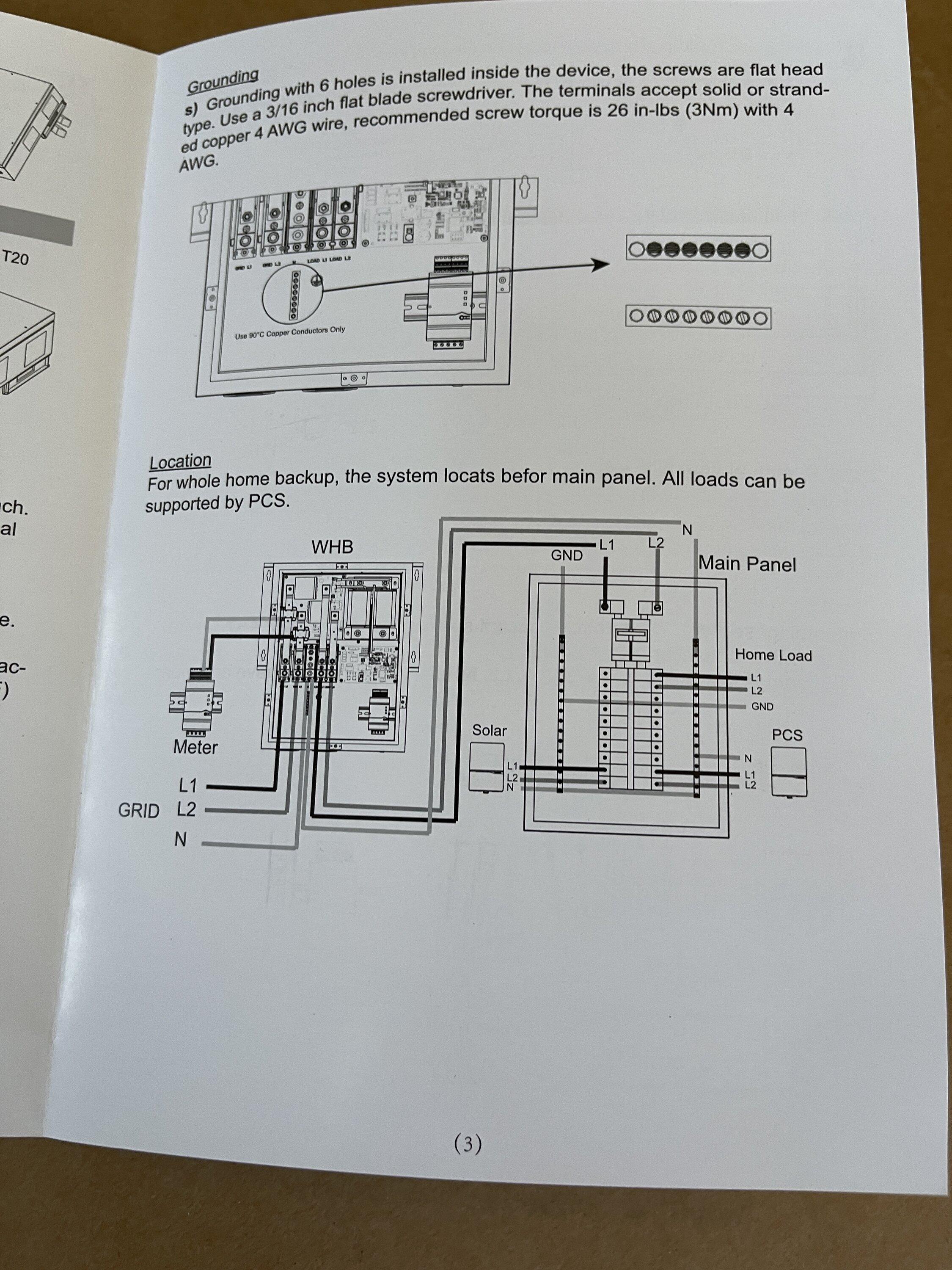

Ford F-150 Lightning My HiS (Home Integration System) has arrived! 136E90F5-ACCB-4F99-A2B6-207742AEBE5D

OP
OP

RDeFran

Well-known member
First Name
Rich
Joined
Apr 12, 2022
Threads
4
Messages
170
Reaction score
235
Location
37932
Vehicles
2020 GMC Sierra 3500HD AT4 SRW Duramax, 2010 M3
Occupation
Technician
That must be in the yet to arrive battery box.


Skidrowe

Well-known member
First Name
Gideon
Joined
Dec 22, 2021
Threads
6
Messages
267
Reaction score
433
Location
Texas
Vehicles
2022 F-150 Lightning ER, 2014 Honda Pilot
The FCSP indicated that it's rated to be installed outside (water intrusion shouldn't be a problem). Are the HIS components also rated to be installed outside? It would be nice if I don't have to drill holes in the stone exterior of my house to the inside of my garage just to run wires to those components and then back out to the FCSP and the main panel on the exterior wall of my garage.
