2025 Flash - Battery Size Determination PSA

bmwhitetx

Well-known member
First Name
Bruce
Joined
May 21, 2021
Threads
45
Messages
2,353
Reaction score
3,300
Location
DFW-Texas
Vehicles
2022 F150 Lightning Lariat ER
Occupation
Retired engineer
Ford announced in 2025, starting with Job 2 production, the Flash will come with a 123 kWh battery instead of 131 kWh. These are starting to show up in dealer inventory now mixed in with the 131 kWh battery and dealer sites may not indicate battery size. NOTE: The MSRP is the same for both!

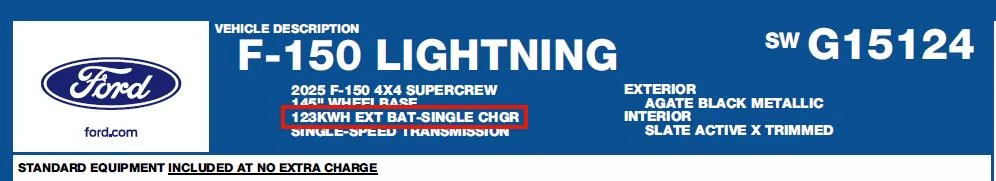

There are a couple of ways to determine battery size. First, it will be clearly shown on the Window Sticker:
Ford F-150 Lightning 2025 Flash - Battery Size Determination PSA 1748099622828-4w


Second - if sticker isn't available, the 8th character of the VIN tells you battery size (I added a mnemonic to help you remember:) ):
"7" - 131 kWh e.g. 1FTVW3L70SWG0237x (lucky 7)
"U" - 123 kWh e.g., 1FT6W3LU0SWG1512x (U screwed)

Third Way:
123 kWh will show 300 mile EPA range
131 kWh will show 320 mile EPA range

The codes above are for the single 48-amp AC charger (standard on all Lightnings beginning in 2024)
However. like the ER Pro, the Flash does offer a fleet option for the dual AC charger (80-amp):
"M" - 131 kWh dual charger 1FT6W3LM0SWG0131x
I haven't found a Job 2 123 kWh with dual charger yet. Also, the fleet-only Pro ER will have a 123 kWh battery going forward.

Finally, "K" is the code for the Standard Range 98 kWh battery with single charger as found in Pro and XLT.

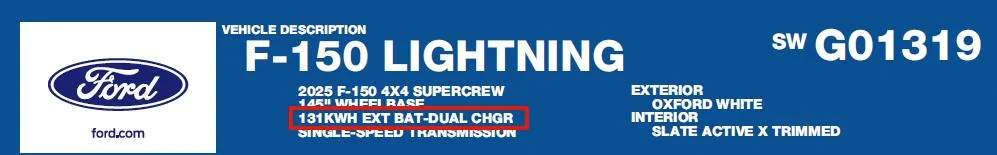

Single or dual charger is also shown on Window Sticker next to battery size:
Ford F-150 Lightning 2025 Flash - Battery Size Determination PSA 1748099837189-5i


The codes above are specific to '24 and '25.
For '22 and '23 (all trims):
"L" - Standard Range, 98 kWh, single charger standard
"V" - Extended Range, 131 kWh, dual charger standard
Sponsored


Last edited:

rzechman3

Member
First Name
Rick
Joined
Apr 24, 2025
Threads
1
Messages
6
Reaction score
1
Vehicles
F-150 Lightning flash
Thanks for this although I now know that my battery is the 123 kWh and I’m pissed. What is the impact to battery performance?

OP
OP
bmwhitetx

bmwhitetx

Well-known member
First Name
Bruce
Joined
May 21, 2021
Threads
45
Messages
2,353
Reaction score
3,300
Location
DFW-Texas
Vehicles
2022 F150 Lightning Lariat ER
Occupation
Retired engineer

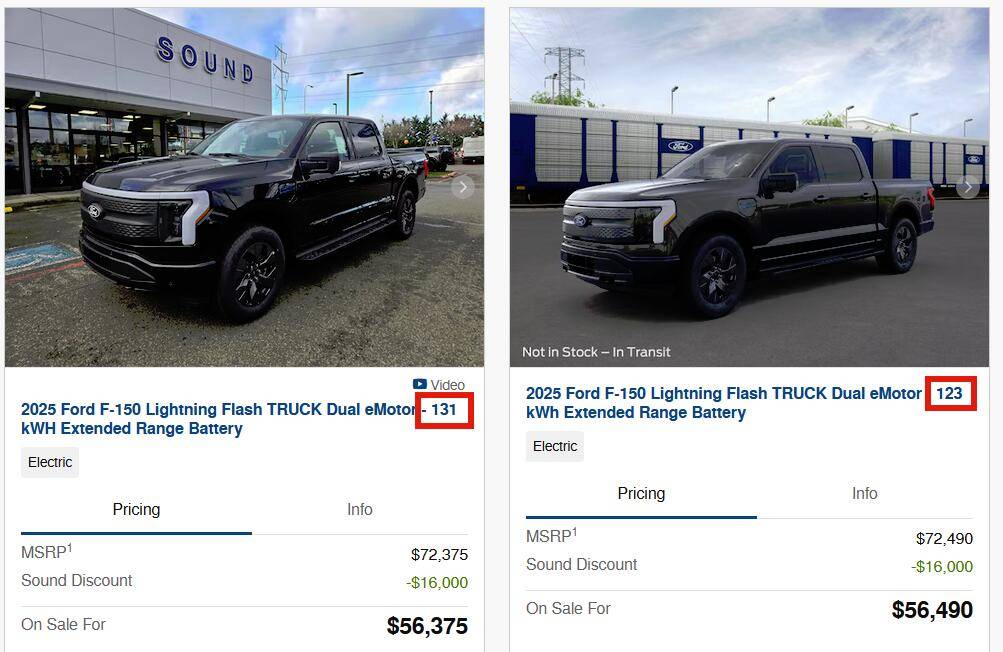

Example - Dealer showing size upfront
Ford F-150 Lightning 2025 Flash - Battery Size Determination PSA 1748102046457-ws

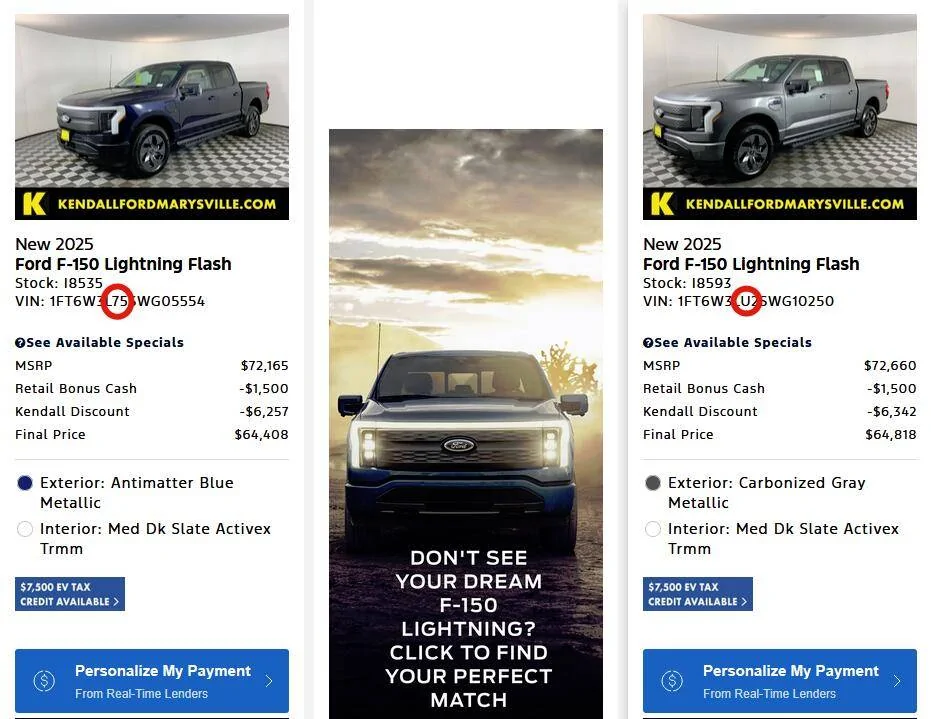

Dealer not showing size on search page. Buried in detail page. No Window Sticker.
But you can decode VIN.
Ford F-150 Lightning 2025 Flash - Battery Size Determination PSA 1748102076603-k4

Last edited:
OP
OP
bmwhitetx

bmwhitetx

Well-known member
First Name
Bruce
Joined
May 21, 2021
Threads
45
Messages
2,353
Reaction score
3,300
Location
DFW-Texas
Vehicles
2022 F150 Lightning Lariat ER
Occupation
Retired engineer
Thanks for this although I now know that my battery is the 123 kWh and I’m pissed. What is the impact to battery performance?
You have 300 mile EPA range instead of 320. (Added as Third way above - some dealer sites may show this number)


Sponsored

astrand1

Well-known member
First Name
Alex
Joined
Dec 16, 2021
Threads
8
Messages
472
Reaction score
446
Location
Michigan
Vehicles
2023 Ford F150 Lightning lariat ER
Occupation
Studio truck driver
Ford announced in 2025, starting with Job 2 production, the Flash will come with a 123 kWh battery instead of 131 kWh. These are starting to show up in dealer inventory now (mixed in with the 131 kWh) and dealer sites may not indicate battery size. NOTE: The MSRP is the same for both!

There are a couple of ways to determine battery size. First, it will be clearly shown on the Window Sticker:


Second - if sticker isn't available, the 8th character of the VIN tells you battery size and whether single or dual onboard charger (with added mnemonic to help you remember:) ):
"7" - 131 kWh single charger - 1FTVW3L70SWG0237x (lucky 7)
"U" - 123 kWh single charger - 1FT6W3LU0SWG1512x (U screwed)

Third Way:
123 kWh will show 300 mile EPA range
131 kWh will show 320 mile EPA range

FYI,
"K" is the code for 98 kWh battery with single charger as found in SR Pro and XLT.
And like the ER Pro, the Flash does offer a fleet code for dual onboard charger:
"M" - 131 kWh dual charger 1FT6W3LM0SWG0131x
Also shown on Window Sticker like above next to battery size:

I haven't found a Job 2 123 kWh with dual charger yet.
So in 24 they dropped the dual charger option except for fleet order trucks.


TaxmanHog

Moderator
Moderator
First Name
Noel
Joined
Jan 19, 2022
Threads
195
Messages
14,513
Reaction score
15,845
Location
SE. Mass.
Vehicles
2022 Lightning Lariat-ER & 2024 HD Road Glide CVO-ST
Occupation
Retired
So in 24 they dropped the dual charger option except for fleet order trucks.
Correct

I've pinned this thread for easy access in the section.

OP
OP
bmwhitetx

bmwhitetx

Well-known member
First Name
Bruce
Joined
May 21, 2021
Threads
45
Messages
2,353
Reaction score
3,300
Location
DFW-Texas
Vehicles
2022 F150 Lightning Lariat ER
Occupation
Retired engineer
same chemistry in 123kwh battery? I'm guessing they haven't switched to LFP yet.
Yep same exact modules as before just different numbers of each type.

Long Answer:
There are 9 battery arrays/modules in every Lightning. Some of those are small size (11.95 kWh) and some are large size (16.43 kWh).

The SR 98 kWh has 9 small modules.
The ER 131 kWh has 8 large and 1 small.
The Flash 123 kWh has 6 large and 3 small.
So they just swapped out two large modules for small ones in the Job 2 Flash.

Note the smalls in the ER are a different arrangement of cells (5P8S) than the SR (4P10S) but overall still 40 cells/11.95 kWh.

Last edited:

GoodSam

Well-known member
First Name
Good
Joined
Jan 5, 2022
Threads
35
Messages
786
Reaction score
424
Location
93111
Vehicles
17CRV, 22 Lightning XLT 312A SR iced blue silver
Occupation
occupying space
@Ford Senior Master stated the battery module details here:
https://www.f150lightningforum.com/...dules-starting-with-chatgpt.21142/post-488187
-SR, 98kWh usable, has 4 parallel cell pouches x 10 cell groups per module (4P10S), with nine modules (arrays?) 90 x 3.7Vdc nominal;
-2025 Flash Mid range, 123kWh usable, using 5 parallel cell pouches, has six 5P11S, and three 5P8S, 66+24 cell groups = 90 x 3.7Vdc;
-ER, 131kWh usable, has eight 5P11S, and one 5P8S module, 96 x 3.7Vdc;

So, besides usable kWh, also Hp varies with size of cell group (4P vs 5P) and number of cell groups. What is 2025 Flash Mid-range Hp rating compared to the SR (452hp) and ER(580hp)? - I found 536hp at https://www.thecarconnection.com/specifications/ford_f-150-lightning_2025 .

Last edited:
  • Like
Reactions: chl

Sponsored
OP
OP
bmwhitetx

bmwhitetx

Well-known member
First Name
Bruce
Joined
May 21, 2021
Threads
45
Messages
2,353
Reaction score
3,300
Location
DFW-Texas
Vehicles
2022 F150 Lightning Lariat ER
Occupation
Retired engineer
@Ford Senior Master stated the battery module details here:
https://www.f150lightningforum.com/...dules-starting-with-chatgpt.21142/post-488187
-SR, 98kWh usable, has 4 parallel cell pouches x 10 cell groups per module (4P10S), with nine modules (arrays?) 90 x 3.7Vdc nominal;
-2025 Flash Mid range, 123kWh usable, using 5 parallel cell pouches, has six 5P11S, and three 5P8S, 66+24 cell groups = 90 x 3.7Vdc;
-ER, 131kWh usable, has eight 5P11S, and one 5P8S module, 96 x 3.7Vdc;

So, besides usable kWh, also Hp varies with size of cell group (4P vs 5P) and number of cell groups. What is 2025 Flash Mid-range Hp rating compared to the SR (452hp) and ER(580hp)? - I found 536hp at https://www.thecarconnection.com/specifications/ford_f-150-lightning_2025 .
Yep , I actually used the info from that post in my summary above.

Last edited:

Joe Dablock

Well-known member
First Name
Joseph
Joined
Dec 23, 2023
Threads
6
Messages
91
Reaction score
115
Location
Stewartstown Pa. 17363
Vehicles
2023 F150 Lightning, 2022 Mustang Mach E
Occupation
Retired
I have a 23XLT ER. I’m confused, what are the 1 charger/2 charger differences mentioned earlier in this string?


TaxmanHog

Moderator
Moderator
First Name
Noel
Joined
Jan 19, 2022
Threads
195
Messages
14,513
Reaction score
15,845
Location
SE. Mass.
Vehicles
2022 Lightning Lariat-ER & 2024 HD Road Glide CVO-ST
Occupation
Retired
I have a 23XLT ER. I’m confused, what are the 1 charger/2 charger differences mentioned earlier in this string?
Model years 2022 & 2023 ER trucks have two distinct AC to DC inverters, while SR trucks have only one.

The majority of 2024+ truck now only have one inverter to charge the HVB, exceptions for fleet ordered ER trucks where the buyer elects an option for dual inverters.

Last edited:

Joe Dablock

Well-known member
First Name
Joseph
Joined
Dec 23, 2023
Threads
6
Messages
91
Reaction score
115
Location
Stewartstown Pa. 17363
Vehicles
2023 F150 Lightning, 2022 Mustang Mach E
Occupation
Retired
I assumed my truck had 2 chargers, one being 110vac and the other being 220vac

i’m still confused, does the single charger accept 110 and 220v ? Do the duel chargers charge different parts of the hv battery or do they operate in parallel to charge the hv battery.


TaxmanHog

Moderator
Moderator
First Name
Noel
Joined
Jan 19, 2022
Threads
195
Messages
14,513
Reaction score
15,845
Location
SE. Mass.
Vehicles
2022 Lightning Lariat-ER & 2024 HD Road Glide CVO-ST
Occupation
Retired
I assumed my truck had 2 chargers, one being 110vac and the other being 220vac

i’m still confused, does the single charger accept 110 and 220v ? Do the duel chargers charge different parts of the hv battery or do they operate in parallel to charge the hv battery.
I'm not fully aware exactly how it works, but they do work in tandem parallel, in 240v mode (level 2) and above a specific amperage limitation both are activated. In 120v mode (level 1) I believe, (not certain) that only the primary inverter is active.
