Sponsored

Add Charge enhanced charge settings

PJnc284

Well-known member
Joined
Sep 30, 2024
Threads
0
Messages
426
Reaction score
442
Location
Garner, NC
Vehicles
2023 Ford F150 Lightning Lariat ER
Well good news and bad news. My oem setting was 0064 so updated it to 0066. Was able to get the screens working but the settings don't seem to stick as someone else mentioned. Deleted my home locations and it reverts to the usual 100% when plugging into AC. I can can update the values, turn the truck off and back on and the settings remain. Get out of the truck and plug back in and it's once again charging at full speed to 100%. Get back in the truck and all the values are reset. oh well, at least it shows the charging rate on the center screen now!

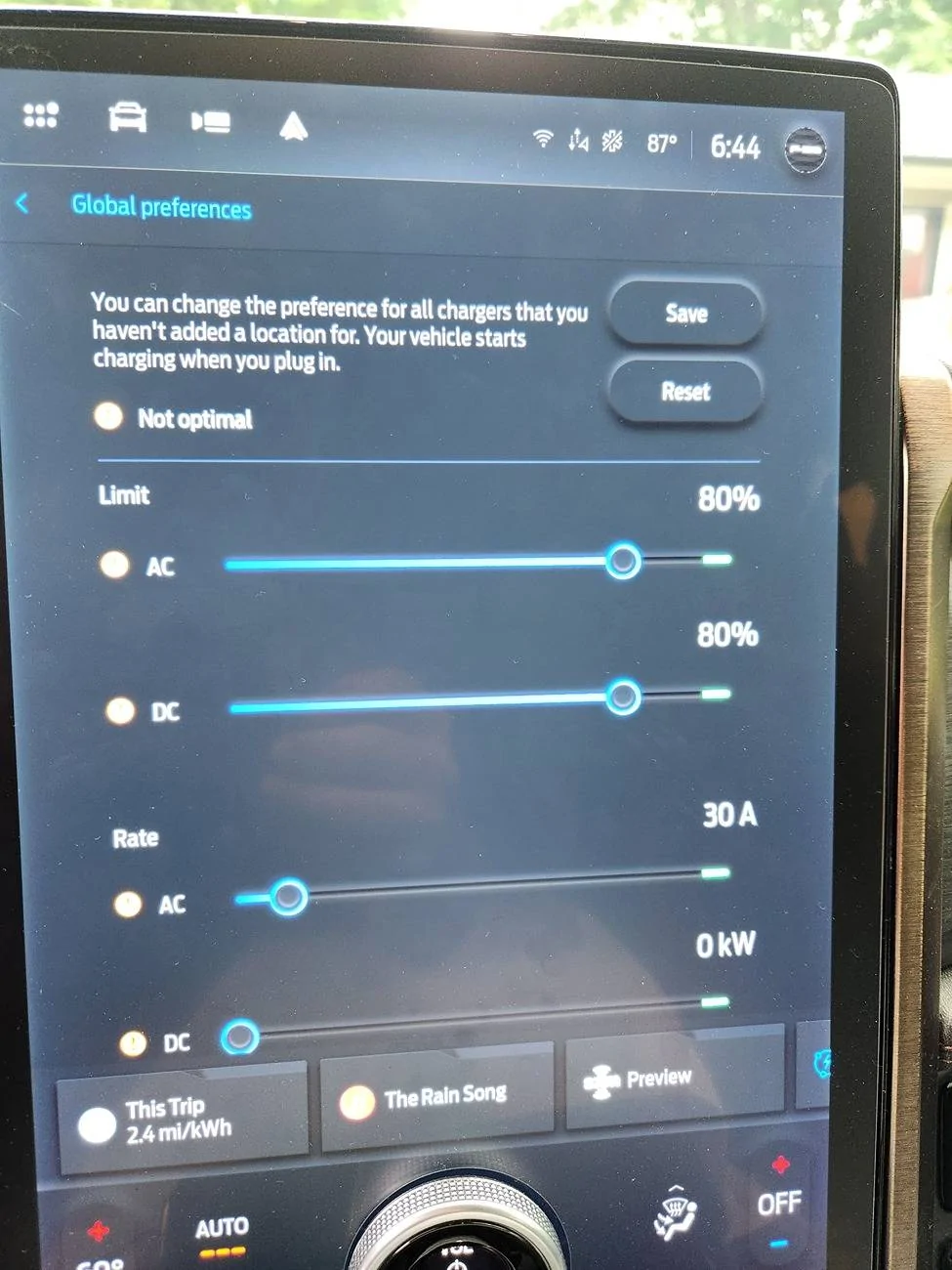

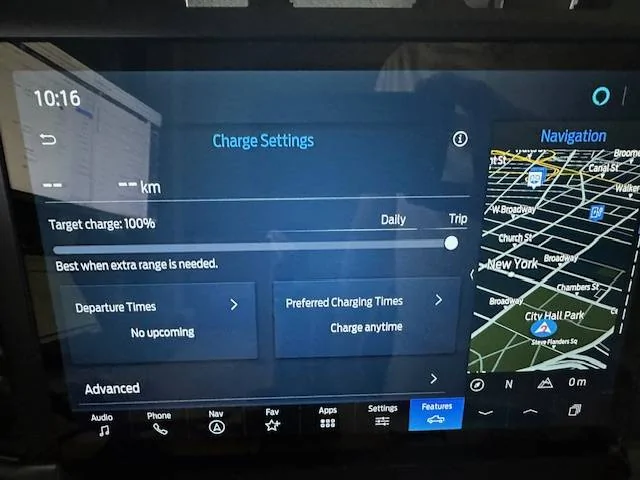

Ford F-150 Lightning Add Charge enhanced charge settings 20250608_185759

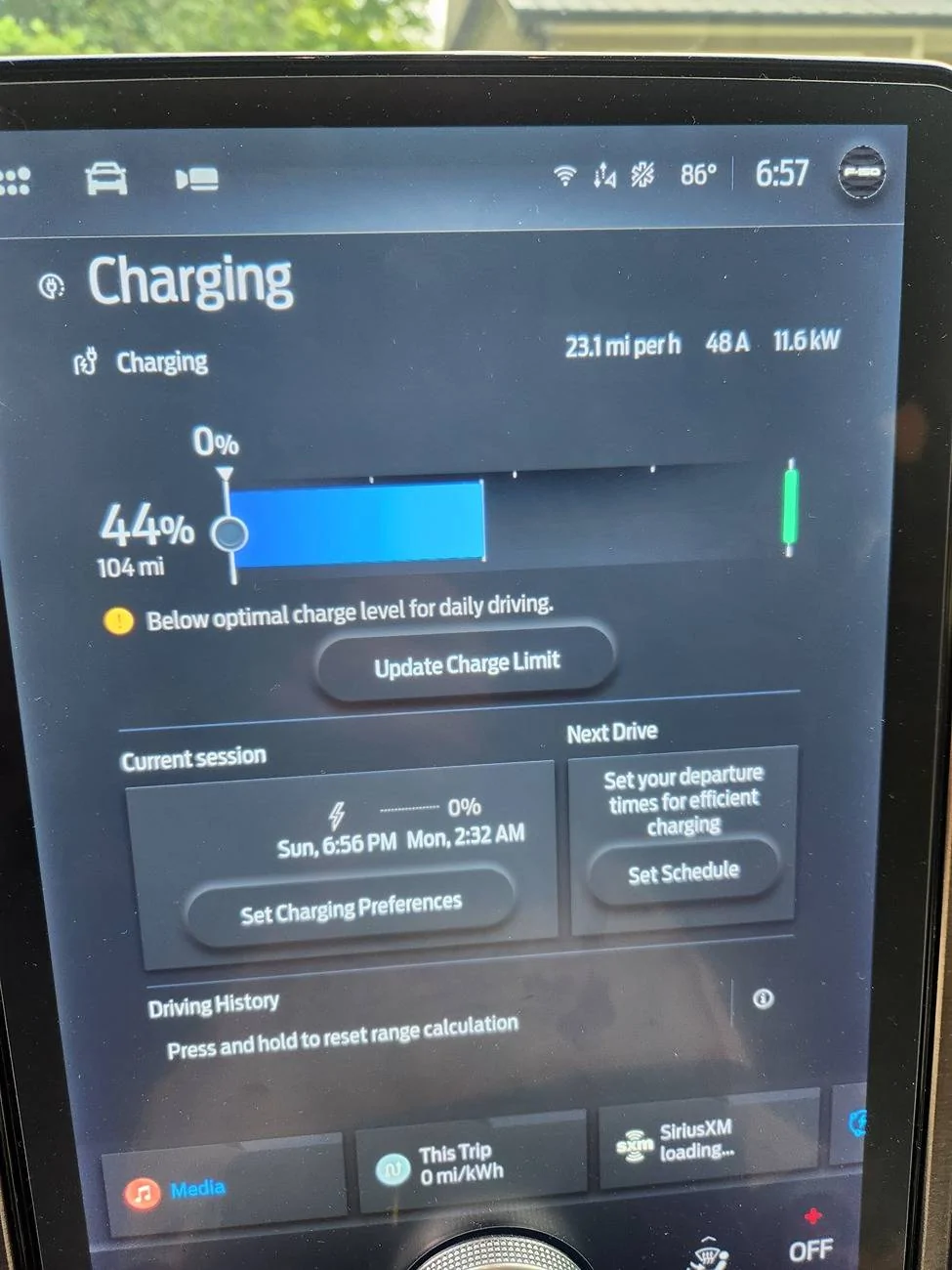

Ford F-150 Lightning Add Charge enhanced charge settings 20250608_184434
Sponsored


Last edited:

bmwhitetx

Well-known member
First Name
Bruce
Joined
May 21, 2021
Threads
45
Messages
2,393
Reaction score
3,345
Location
DFW-Texas
Vehicles
2022 F150 Lightning Lariat ER
Occupation
Retired engineer
Well good news and bad news. My oem setting was 0064 so updated it to 0066.
Those are the values I would have tried given that you have a 23 and current setting for PPOUI is version 1.

Maybe only works for 24's and up?


bmwhitetx

Well-known member
First Name
Bruce
Joined
May 21, 2021
Threads
45
Messages
2,393
Reaction score
3,345
Location
DFW-Texas
Vehicles
2022 F150 Lightning Lariat ER
Occupation
Retired engineer
My 2023 XLT (small screen) has the following at line 7D0-10-4:
0004-0000-41xx
...
...and now after the change of the "4" to an "E", and then after rebooting the APIM thru Forscan, I still have no enhanced charging screen effect at the charge settings menu on my 12-inch screen.
If you had a 04, I would try 46 (or 66)

My current thinking based on the spreadsheet info:
Byte 3 - change bit 2 to a one (adds 4)
Byte 4 - change bit 3 to a one (adds 2)

Specifically:
Byte 3 - change 0 to 4 or change 2 to 6 (add 4). If 6, no change.
Byte 4 - change 0 to 2, 4 to 6 (22-23's) . . OR . . change 8 to A, C to E (24's).
There should be no odd values for Byte 4 as bit 4 is undefined.

If you're adventurous, you could go to 6E but I believe that is modding other parameters for 22-23's.


PJnc284

Well-known member
Joined
Sep 30, 2024
Threads
0
Messages
426
Reaction score
442
Location
Garner, NC
Vehicles
2023 Ford F150 Lightning Lariat ER
I may try E if I get bored tomorrow but don't see how it could make difference based on the values. I'm guessing it's missing something in one of the charging related modules. I'll have to pester someone to check what I have showing. :crazy:


21st Century Truck

Well-known member
First Name
Martin
Joined
Jul 11, 2024
Threads
10
Messages
634
Reaction score
671
Location
Virginia
Vehicles
Ford 150 Lightning 2023 XLT ER pkg. 312A
If you had a 04, I would try 46 (or 66)

My current thinking based on the spreadsheet info:
Byte 3 - change bit 2 to a one (adds 4)
Byte 4 - change bit 3 to a one (adds 2)

Specifically:
Byte 3 - change 0 to 4 or change 2 to 6 (add 4). If 6, no change.
Byte 4 - change 0 to 2, 4 to 6 (22-23's) . . OR . . change 8 to A, C to E (24's).
There should be no odd values for Byte 4 as bit 4 is undefined.

If you're adventurous, you could go to 6E but I believe that is modding other parameters for 22-23's.
...lemme try this. TBC.

......................................................................................

So I tried this change on my 12-screen 2023 XLT. Changed "0004" to "0046".

Rebooted the APIM afterwards.

BLUF: no effect, no change on the charging screen.

Last edited:

Sponsored

Rollin

Member
First Name
Antonio
Joined
Jan 14, 2025
Threads
0
Messages
8
Reaction score
1
Vehicles
2024 F-150 Lightning Lariat
I have a 2024 and trying to right from 6C to 6E and it will get interrupted and will not let me change it
Has someone made this change on a 2024 Lightning?


bmwhitetx

Well-known member
First Name
Bruce
Joined
May 21, 2021
Threads
45
Messages
2,393
Reaction score
3,345
Location
DFW-Texas
Vehicles
2022 F150 Lightning Lariat ER
Occupation
Retired engineer
OP
OP

Jesse-Infotainment

Well-known member
First Name
Jesse
Joined
May 27, 2021
Threads
3
Messages
818
Reaction score
877
Location
Dallas
Vehicles
2024 F150 Lightning Platinum
I edited the first post. And please understand that the menus may not work because the other modules have to be updated. That is the same thing for anyone that upgrades to the 24 IPC firmware for charging speed. You have to update the modules I noted in teh first post.


B177y

Well-known member
First Name
Bill
Joined
Jul 16, 2024
Threads
9
Messages
371
Reaction score
459
Location
Oly Pen, WA
Vehicles
2024 Pro ER Max Tow

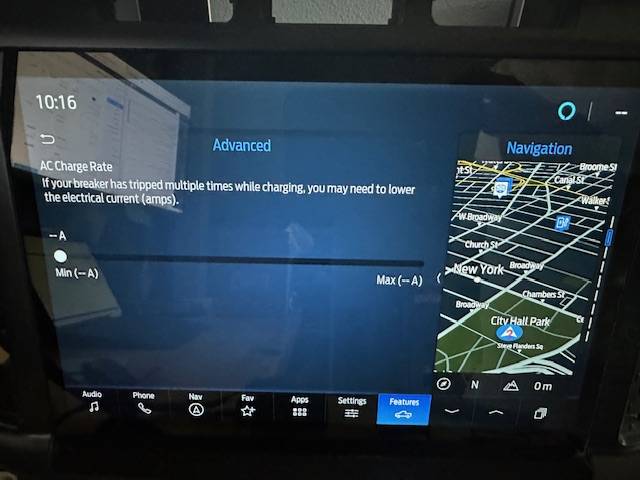

EDIT - I am sorry. THis apparently doesnt apply to the 12" yet. I am still learning about EVs. So I am not as knowledgeable about the EV terms and setting yet. SO as of now this only applys to the 15 in Portrait screen. On the 12" if it were available in the Charge settings an advanced tab would show. That would contain the additional settings. Even then the 12" seems to only have a AC setting.

SOrry for the confusion. I should have double checked prior to posting.



No need to apologize. Thanks for all of the cool mods and hacks you bring to to community!


02Reaper

Well-known member
Joined
Sep 14, 2022
Threads
4
Messages
142
Reaction score
156
Location
GA
Vehicles
2022 Lightning XLT ER
I edited the first post. And please understand that the menus may not work because the other modules have to be updated. That is the same thing for anyone that upgrades to the 24 IPC firmware for charging speed. You have to update the modules I noted in teh first post.
Just a quick question about having the modules updated for this...Are all of the extra modules being updated a result of the latest OTA or would it be something that would have to be updated by the dealer?


Sponsored

bmwhitetx

Well-known member
First Name
Bruce
Joined
May 21, 2021
Threads
45
Messages
2,393
Reaction score
3,345
Location
DFW-Texas
Vehicles
2022 F150 Lightning Lariat ER
Occupation
Retired engineer
I edited the first post. And please understand that the menus may not work because the other modules have to be updated. That is the same thing for anyone that upgrades to the 24 IPC firmware for charging speed. You have to update the modules I noted in teh first post.
Thanks Jesse. So at this time, this appears to only work on 24's. @PJnc284 has a 23 fully updated and made the edited change (changed xxx4 to xxx6). His results were mixed. Settings wouldn't hold across charge cycles.

My modules are out of date, so if any other 22-23' Lariats and above want to try, please post here.
APIM 7D0-10-4 xxx*-xxxx-xx change 0 to 2, 4 to 6 (22-23's) . . OR . . change 8 to A, C to E (24's).

I apologize if this is already documented, but what is the 24 IPC firmware update to show charging speed on the instrument cluster?


bmwhitetx

Well-known member
First Name
Bruce
Joined
May 21, 2021
Threads
45
Messages
2,393
Reaction score
3,345
Location
DFW-Texas
Vehicles
2022 F150 Lightning Lariat ER
Occupation
Retired engineer
Just a quick question about having the modules updated for this...Are all of the extra modules being updated a result of the latest OTA or would it be something that would have to be updated by the dealer?
Dealer or DIY FDRS. I have received all the latest OTAs but these modules were not updated.

Last edited:
OP
OP

Jesse-Infotainment

Well-known member
First Name
Jesse
Joined
May 27, 2021
Threads
3
Messages
818
Reaction score
877
Location
Dallas
Vehicles
2024 F150 Lightning Platinum
Thanks Jesse. So at this time, this appears to only work on 24's. @PJnc284 has a 23 fully updated and made the edited change (changed xxx4 to xxx6). His results were mixed. Settings wouldn't hold across charge cycles.

My modules are out of date, so if any other 22-23' Lariats and above want to try, please post here.
APIM 7D0-10-4 xxx*-xxxx-xx change 0 to 2, 4 to 6 (22-23's) . . OR . . change 8 to A, C to E (24's).

I apologize if this is already documented, but what is the 24 IPC firmware update to show charging speed on the instrument cluster?
Can you ask him to send me his vin..

The 22-23 SHOULD have the exact same firmware as the 24 once updated.

OP
OP

Jesse-Infotainment

Well-known member
First Name
Jesse
Joined
May 27, 2021
Threads
3
Messages
818
Reaction score
877
Location
Dallas
Vehicles
2024 F150 Lightning Platinum
It could be the PCM. 22-23 use a different PCM base part number. 24 and 25 have a new PCM.

Will need to have a 24 that uses their truck more than I do to really test it out.
Sponsored










Top
