F150 Lightning FORScan thread - Version 2

Scorpio3d

Well-known member
First Name
Chris
Joined
Mar 18, 2024
Threads
31
Messages
1,152
Reaction score
1,410
Location
Texas
Vehicles
2023 Ford F150 Lightning Lariat ER
Occupation
SS/IBA car wash owner
Yep, several folks have reported loss of this functionality. It could be that the CSP Sensor, or BC 1.4 reconfigured the IPMA. The first report IIRC was in January.

I have updated post 1 with new instructions based on @rugedraw's advice.

Enable cameras at speed - if you have lost the ability to see the bed camera while driving, one or more configs may have been reset. Double check the following settings:
APIM 7D0-02-02 xxx* xxxx xx-- If 0 change to 1, if 2 change to 3, if 4 change to 5, if 6 change to 7.
IPMA 706-02-02 xxxF C*xx xx-- for 22-23's change * to "E", for 24-25's change * to "A"
If you have a PRO without 360 view (i.e. Pro w/o Tow Technology) then you cannot use these IPMA settings. Contact me for what you need to do.
I would assume mine is the same as @astrand1 as they are both 23 lariat ERs
Sponsored



GDN

Well-known member
First Name
Greg
Joined
Feb 15, 2022
Threads
91
Messages
3,626
Reaction score
4,558
Location
Dallas, TX
Vehicles
Lightning Lariat ER, Performance Y
Occupation
IT

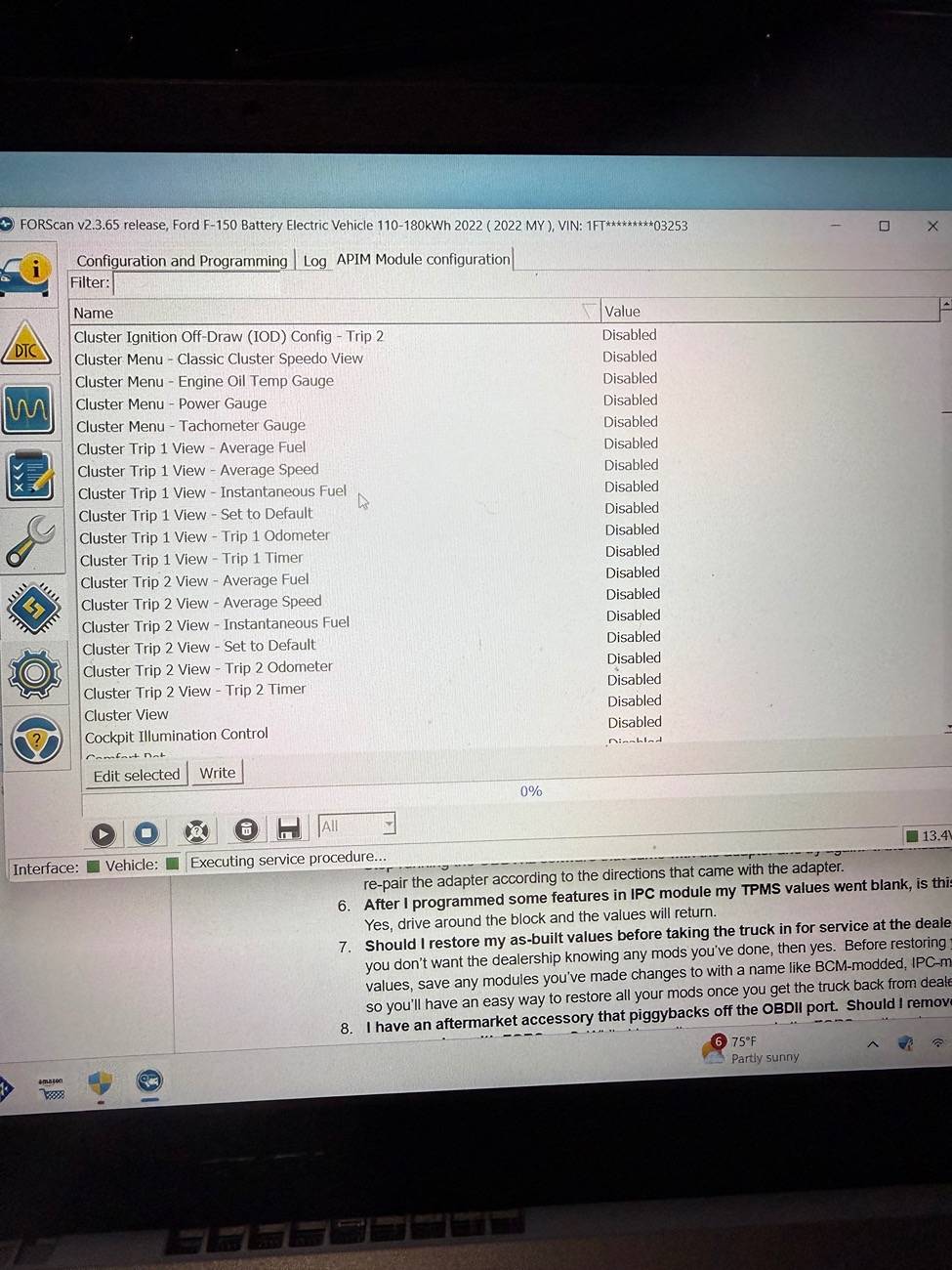

Has anyone ever tried turning on some additional components on the Trip screens? I happened to look around through Forscan. I'd like to have speed turned on. Might do some poking around this weekend. From the spreadsheets it looks like 7D0-10-01 has some settings to turn it on, but I don't know what it would do with our trucks.

Ford F-150 Lightning F150 Lightning FORScan thread - Version 2 IMG_8701

OP
OP
bmwhitetx

bmwhitetx

Well-known member
First Name
Bruce
Joined
May 21, 2021
Threads
45
Messages
2,540
Reaction score
3,551
Location
DFW-Texas
Vehicles
2022 F150 Lightning Lariat ER
Occupation
Retired engineer
I just checked my truck and those settings are there and working although I have them turned off. While on the subject of forscan changes. Does anybody have thoughts on the fact when I added the motion portion of the alarm that was deleted from my truck now whenever the cluster does a complete reboot which happens every so often. You can tell because when started it goes back to the default screen with my view. But then when turned off it asks if I want to have the motion sensors on or off. So I have to restart truck and go into alarm on the center screen and toggle that question off. Is there a way to set that default to off or is that just normal behavior?
When my truck gets an OTA or other reboot it always turns back on Brake Coach on the dash and defaults to My View. But it has never re-enabled the motion sensor question (I like mine off as well).

OP
OP
bmwhitetx

bmwhitetx

Well-known member
First Name
Bruce
Joined
May 21, 2021
Threads
45
Messages
2,540
Reaction score
3,551
Location
DFW-Texas
Vehicles
2022 F150 Lightning Lariat ER
Occupation
Retired engineer
Has anyone ever tried turning on some additional components on the Trip screens? I happened to look around through Forscan. I'd like to have speed turned on. Might do some poking around this weekend. From the spreadsheets it looks like 7D0-10-01 has some settings to turn it on, but I don't know what it would do with our trucks.

Go for it and forever be known as the author of a FORScan mod!


astrand1

Well-known member
First Name
Alex
Joined
Dec 16, 2021
Threads
8
Messages
510
Reaction score
490
Location
Michigan
Vehicles
2023 Ford F150 Lightning lariat ER
Occupation
Studio truck driver
When my truck gets an OTA or other reboot it always turns back on Brake Coach on the dash and defaults to My View. But it has never re-enabled the motion sensor question (I like mine off as well).
That’s kinda what I thought. I did a search thru some of the modules but could not find anything. I’m fairly sure it’s probably a setting that’s off a little. lol.


Sponsored

astrand1

Well-known member
First Name
Alex
Joined
Dec 16, 2021
Threads
8
Messages
510
Reaction score
490
Location
Michigan
Vehicles
2023 Ford F150 Lightning lariat ER
Occupation
Studio truck driver
Go for it and forever be known as the author of a FORScan mod!
I’ve seen those as well and wondered. Wonder what classic speedo view is? 🤔


GDN

Well-known member
First Name
Greg
Joined
Feb 15, 2022
Threads
91
Messages
3,626
Reaction score
4,558
Location
Dallas, TX
Vehicles
Lightning Lariat ER, Performance Y
Occupation
IT
@bmwhitetx = Thanks for all of your expertise and support of this thread.

I'll make some changes this weekend and play with the average speed.

Once in a while I forget, but try to always save a copy of the module before I make a change. I thought recently I had read that Forscan could make a full backup without having to load the modules one at a time. I can't find where I read that though, nor can I find it in Forscan. Is that a feature of only the advanced/special version of Forscan?

OP
OP
bmwhitetx

bmwhitetx

Well-known member
First Name
Bruce
Joined
May 21, 2021
Threads
45
Messages
2,540
Reaction score
3,551
Location
DFW-Texas
Vehicles
2022 F150 Lightning Lariat ER
Occupation
Retired engineer
@bmwhitetx = Thanks for all of your expertise and support of this thread.

I'll make some changes this weekend and play with the average speed.

Once in a while I forget, but try to always save a copy of the module before I make a change. I thought recently I had read that Forscan could make a full backup without having to load the modules one at a time. I can't find where I read that though. Is that a feature of only the advanced/special version of Forscan?
I also would like that feature and thought I read it too. But I don't see it and don't have the special version.

FYI, I have found the Motorcraft As-Built site is typically updated very shortly after an OTA. So when you got the BCM, you may have your all-vehicle backup there.

But typically you are only changing a couple of modules - so doing a per-module backup is pretty quick. I like that FORScan time-stamps it down to the second.


Scorpio3d

Well-known member
First Name
Chris
Joined
Mar 18, 2024
Threads
31
Messages
1,152
Reaction score
1,410
Location
Texas
Vehicles
2023 Ford F150 Lightning Lariat ER
Occupation
SS/IBA car wash owner
Yep, several folks have reported loss of this functionality. It could be that the CSP Sensor, or BC 1.4 reconfigured the IPMA. The first report IIRC was in January.

I have updated post 1 with new instructions based on @rugedraw's advice.

Enable cameras at speed - if you have lost the ability to see the bed camera while driving, one or more configs may have been reset. Double check the following settings:
APIM 7D0-02-02 xxx* xxxx xx-- If 0 change to 1, if 2 change to 3, if 4 change to 5, if 6 change to 7.
IPMA 706-02-02 xxxF C*xx xx-- for 22-23's change * to "E", for 24-25's change * to "A"
If you have a PRO without 360 view (i.e. Pro w/o Tow Technology) then you cannot use these IPMA settings. Contact me for what you need to do.
That did it!!!
You are the man!
Thank you for all you do for us mere mortals!


rugedraw

Well-known member
First Name
Javier
Joined
Dec 14, 2021
Threads
4
Messages
1,636
Reaction score
1,971
Location
Miami
Vehicles
2021 Ford F150 Platinum FX4 EB/2023 Bronco Sport Badlands/1991 Mustang 5.0 coupe
Occupation
Auto Sales
I’ve seen those as well and wondered. Wonder what classic speedo view is? 🤔
Not everything you see there will do anything. Classic Speedo is for the 7G Mustangs. The config is shared across different vehicle platforms. However, if the classic speedo is not programmed into the IPC, then enabling the option for it to work won't go anything. It's agree to try things, but I would get into the habit of changing it back if you don't get the desired result.

I also would like that feature and thought I read it too. But I don't see it and don't have the special version.

FYI, I have found the Motorcraft As-Built site is typically updated very shortly after an OTA. So when you got the BCM, you may have your all-vehicle backup there.

But typically you are only changing a couple of modules - so doing a per-module backup is pretty quick. I like that FORScan time-stamps it down to the second.
An OTA will cause the server interrogator to poll the module and report the data back to Ford. This is why the config is updated on the motorcraft site after an update. I'm not sure if it polls the entire module network or just the module(s) being updated.


Sponsored

Simpso57

Well-known member
First Name
Rob
Joined
Apr 16, 2022
Threads
12
Messages
204
Reaction score
201
Location
93908
Vehicles
Ford F150 Lightning
I see there is a way to reduce the initial seat belt chime from 4 to 2 using the "Disable Seat Belt chime on vehicle startup." Is there anyway to disable it completely?

OP
OP
bmwhitetx

bmwhitetx

Well-known member
First Name
Bruce
Joined
May 21, 2021
Threads
45
Messages
2,540
Reaction score
3,551
Location
DFW-Texas
Vehicles
2022 F150 Lightning Lariat ER
Occupation
Retired engineer
I see there is a way to reduce the initial seat belt chime from 4 to 2 using the "Disable Seat Belt chime on vehicle startup." Is there anyway to disable it completely?
You may be looking at old instructions. The seat belt chime I have in this thread changes it from 4 to 0. It is the chime that only goes off if you press start without buckling first. The mod changes to European style where it will chime once in motion.


Scorpio3d

Well-known member
First Name
Chris
Joined
Mar 18, 2024
Threads
31
Messages
1,152
Reaction score
1,410
Location
Texas
Vehicles
2023 Ford F150 Lightning Lariat ER
Occupation
SS/IBA car wash owner
Decided to go ahead and do the 50/50 while I was at it! I like it! Kind of hard to tell how good it is on a dark residential street at night, but it looked pretty cool in my driveway with my brake lights on so I will have to test it in the daylight!


Firn

Well-known member
Joined
Aug 26, 2024
Threads
27
Messages
1,083
Reaction score
1,173
Location
USA
Vehicles
23 Pro ER
@bmwhitetx

Once in a while I forget, but try to always save a copy of the module before I make a change. I thought recently I had read that Forscan could make a full backup without having to load the modules one at a time. I can't find where I read that though, nor can I find it in Forscan. Is that a feature of only the advanced/special version of Forscan?
I have request this feature on the forscan forums but there was no support. I don't even care if it takes ten minutes of waiting, right now it takes ten minutes of interaction.

IMO I would prefer full backups of every module. With updates coming in and possibly changing things having easy "save" points for all the modules should be helpful.


GDN

Well-known member
First Name
Greg
Joined
Feb 15, 2022
Threads
91
Messages
3,626
Reaction score
4,558
Location
Dallas, TX
Vehicles
Lightning Lariat ER, Performance Y
Occupation
IT
I have request this feature on the forscan forums but there was no support. I don't even care if it takes ten minutes of waiting, right now it takes ten minutes of interaction.

IMO I would prefer full backups of every module. With updates coming in and possibly changing things having easy "save" points for all the modules should be helpful.
It seems this would be simple to do, but I'm guessing they keep the SW simple. To get this full backup I'm guessing they would have to "load" each of the modules, then save the output. Then load the next one. That seems very simple and straight forward with a loop to go through each one and save. I would guess you are right it would take a few minutes to do, but it would be a great feature.
