Safety Program: 25S18 aka 25V131: HV Battery Electrode Misalignment Discussion

[chl]

It showed up in the Ford website for me.

I assume it's going to be an entire new battery. Why would the issue be isolated to a specific module. And how could they possibly fix electrode misalignment without replacing it?

"...NL38-10C779-AD, NL38-10C779-BD, and NL38-10C779-CD are the part numbers of the suspect arrays. Dealers have been instructed to replace all suspect arrays. Of course, at no charge to affected customers. Owner notification letters will be mailed between March 17, 2025 and March 21, 2025..."

https://www.autoevolution.com/news/...battery-cell-manufacturing-defect-248161.html

Sponsored



[chl]

So what exactly can they inspect? Are the electrodes able to be inspected or measured? I'm assuming they are part of the internal battery module or cells so no. Will Ford be sending dealers complete batteries including the tray and thermal components assembled in a controlled environment? Or will this be the same as my module replacement in 2023 where the service tech is responsible for applying new thermal paste and torquing bolts to appropriate specs.

If Ford isn't replacing the entire battery my truck will have modules that are three or four years older than the new ones. From my experience with Lithium batteries this doesn't seem like a good idea.

I read they are going to look at the part numbers (serial numbers?) and replace the arrays that match the mis-manufactured arrays, so not a complete battery replacement.

Supplier Identification :
Component Manufacturer
Name : SK Battery America (SKBA)
Address : 1760 Steve Reynolds Industrial Pkwy
Commerce Georgia 30539
Country : United States



[chl]

https://static.nhtsa.gov/odi/rcl/2025/RCMN-25V131-0013.pdf

This appears to be the vehicles affected:

2022 Model Year - March 16, 2022 through October 19, 2022

2023 Model Year - October 20, 2022 through November 20, 2023

2024 Model Year - December 19, 2023 through August 14, 2024

My VIN comes up clean.

But I wonder if they really know precisely how many vehicles might have the defect, hopefully yes the records are complete and accurate, and the recall will not be expanded later.

I do not charge past 80% - when I picked the truck up it was at 100% and only one time did I charge to 90% when I was trying to get the LV battery high enough for an update last summer - and stick within the no more than 50% of capacity charge-discharge, i.e., stay between 30% to 80%.

It is only "SELECTED" vehicles in those build ranges that have the issue, and the VINs of affected vehicles are not sequential either. I am within one of the ranges, but not affects TG!

Seems like the battery manufacturer had several production lines and only two had the misalignment issue, those battery arrays have unique part numbers and Ford has records or which vehicle VINs got those arrays:

" Based on a review of historical data for cells manufactured through April 2023, the supplier identified evidence of cathode shift on stacker machines used on two production lines."

https://www.autoevolution.com/news/...battery-cell-manufacturing-defect-248161.html

But...

What I am trying to figure out is why charging to 80% is safe with "misaligned electrodes" that can cause a "hard short."

"The defect: in affected vehicles, a manufacturing defect in the high voltage battery cells may result in an internal short circuit after repeated charge and discharge cycles. This is due to production process deviations at the supplier, which may result in the electrodes in the high voltage battery cells being misaligned. ... The hazards: after repeated charge and discharge cycles, the vehicle could experience an internal short circuit in the battery which could result in a fire. Owners are advised to only charge their Ford F-150 Lightning to a maximum of 80 percent battery capacity until necessary repairs can be made. "

Have to think about that a while...



[JPro]

If they know which pouch batches are bad, they can probably relate the pouches to vehicles.

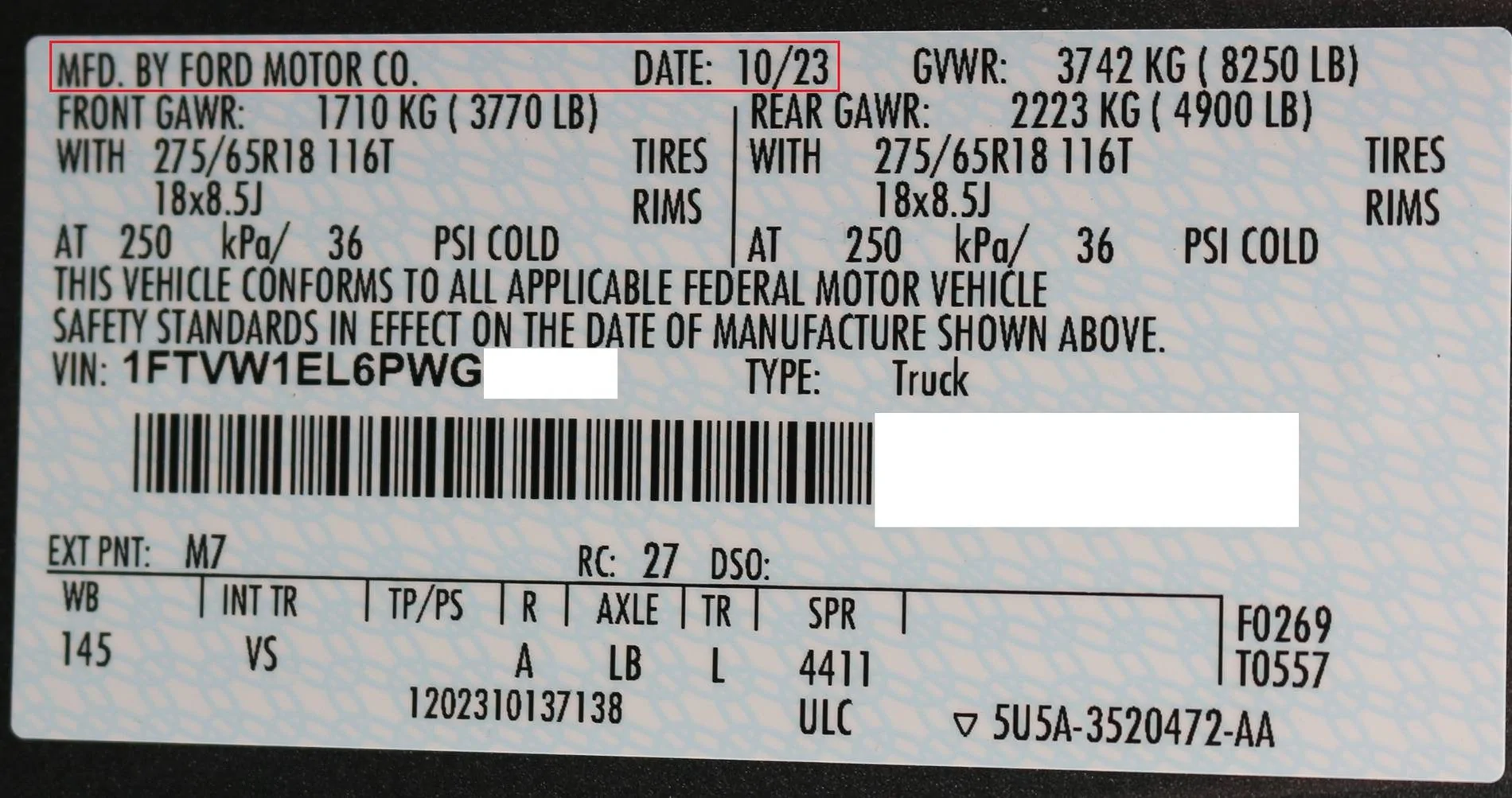

My truck was made in the first or second week of 2023s after the factory restarted for MY '23 production. So the pouches affected might be for 22s and 23s around that time period (Nov 2022).

I wonder when the trucks were made for other people here with the TSB,

My Lariat SR 22MY was made in July of 22 and is part of this recall.



[chl]

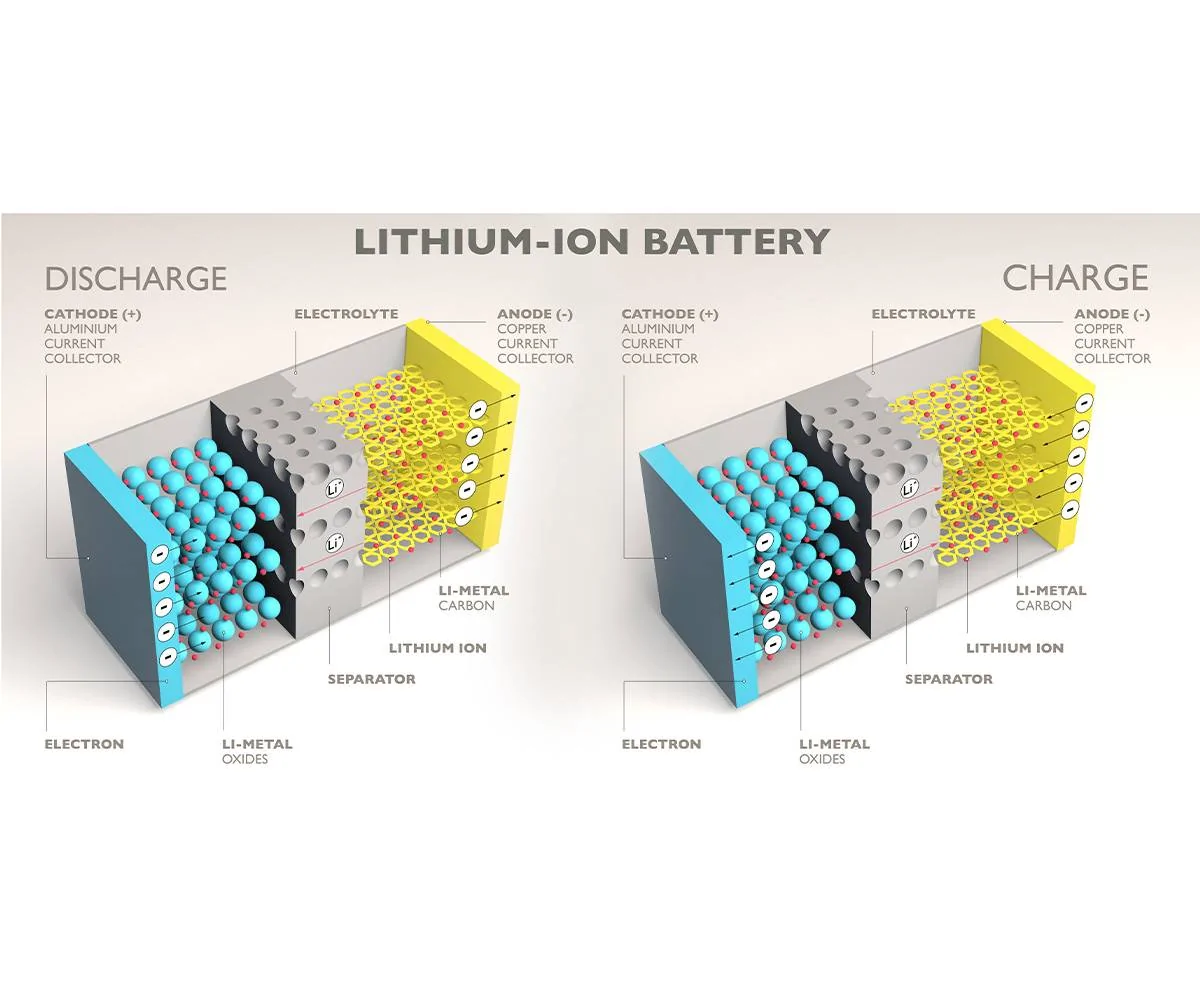

I suppose there is a problem with the cathode and/or anode shifting along the separator under stress which is why the 80% recommendation? The misalignment may be such that under stress the electrodes shift enough to make the separator ineffective resulting in a short.

"The anode and cathode are separated by a separator, which prevents direct contact and allows for the flow of ions during charging and discharging. If the separator material doesn't adequately separate the anode and cathode, or if the electrodes are misaligned, a connection could occur, causing an electrical short or fire."

https://www.gvs.com/en/catalog/battery-cell-separator-ev-and-ess

Just my guess at what's going on with the 80% limit recommendation.



[Hammick]

I read they are going to look at the part numbers (serial numbers?) and replace the arrays that match the mis-manufactured arrays, so not a complete battery replacement.

Supplier Identification :
Component Manufacturer
Name : SK Battery America (SKBA)
Address : 1760 Steve Reynolds Industrial Pkwy
Commerce Georgia 30539
Country : United States

Array usually means the sum of all modules. Ford has used the term module for the previous HVB issues. I'm hopeful I'm getting an entirely new battery.



[TaxmanHog]

Array usually means the sum of all modules. Ford has used the term module for the previous HVB issues. I'm hopeful I'm getting an entirely new battery.

They've used the terms interchangeably but my understanding is that (Aray = Module), there are 9 of them in a (Pack), if all 9 are sourced from the suspect production line, that could result in an entire pack replacement.



[Grumpy2]

My goal is to hear POSITIVE indications from affected members, with your blend dates, then we will have an approximate span build dates impacted, we know it's 940 trucks, is that 100% of truck spread out along a narrow time frame or a much lower percentage along a wider time frame

I am interested in the results of this study if you have determined anything?



[TaxmanHog]

I am interested in the results of this study if you have determined anything?

I haven't seen any more detailed information than has been shared above, BTW I'm not a FoMoCo employee, just a hyperactive Ford enthusiast gleaning information from the WEB and offering my opinions and observations of the hive-mind.



[GoodSam]

I think that Ford & SK looked at all the modules’ serial numbers from all the module replacements and determined there was a correlation to a specific manufacturing process.



[Grumpy2]

I haven't seen any more detailed information than has been shared above,

I read the "Ford Motor Company Recall No. 25S18 Chronology" with interest:

Four fires reviewed together, starting Oct 9, 2024, looking for connections

January 24, 2025 Ford obtains additional physical samples for evaluation and root cause.... an intact module (apparently with a low cell voltage problem) from a truck that later had a fire. (This module must have had a misaligned electrode?)

Ford started detailed review of SK's manufacturing process. AT THE SAME TIME ford begins a "Harvest Program" 25H02 to obtain additional samples...

Results: evidence of misaligned electrodes in the cells & SK confirmed 8 stacker machines between Jan 2 2022 and April 1, 2023 (15 months) with cathode shift that overlap that does not meet design requirements ...

I don't know, 15 months of 8 machines out of adjustment, would seem to effect quite a few modules...

I just hope this isn't just a fishing trip, and I was hoping the 940 folks were tightly packed. I am really surprised only a few out of 940 owners monitor this forum. I hope everyone with a notice from Ford speaks up.



[Hammick]

I read the "Ford Motor Company Recall No. 25S18 Chronology" with interest:

Four fires reviewed together, starting Oct 9, 2024, looking for connections

January 24, 2025 Ford obtains additional physical samples for evaluation and root cause.... an intact module (apparently with a low cell voltage problem) from a truck that later had a fire. (This module must have had a misaligned electrode?)

Ford started detailed review of SK's manufacturing process. AT THE SAME TIME ford begins a "Harvest Program" 25H02 to obtain additional samples...

Results: evidence of misaligned electrodes in the cells & SK confirmed 8 stacker machines between Jan 2 2022 and April 1, 2023 (15 months) with cathode shift that overlap that does not meet design requirements ...

I don't know, 15 months of 8 machines out of adjustment, would seem to effect quite a few modules...

I just hope this isn't just a fishing trip, and I was hoping the 940 folks were tightly packed. I am really surprised only a few out of 940 owners monitor this forum.

I will be demanding an entire new battery pack. I'm not interest in having my battery tray removed again just to replace one module. Been there before.



[PJnc284]

"...NL38-10C779-AD, NL38-10C779-BD, and NL38-10C779-CD are the part numbers of the suspect arrays. Dealers have been instructed to replace all suspect arrays. Of course, at no charge to affected customers. Owner notification letters will be mailed between March 17, 2025 and March 21, 2025..."

https://www.autoevolution.com/news/...battery-cell-manufacturing-defect-248161.html

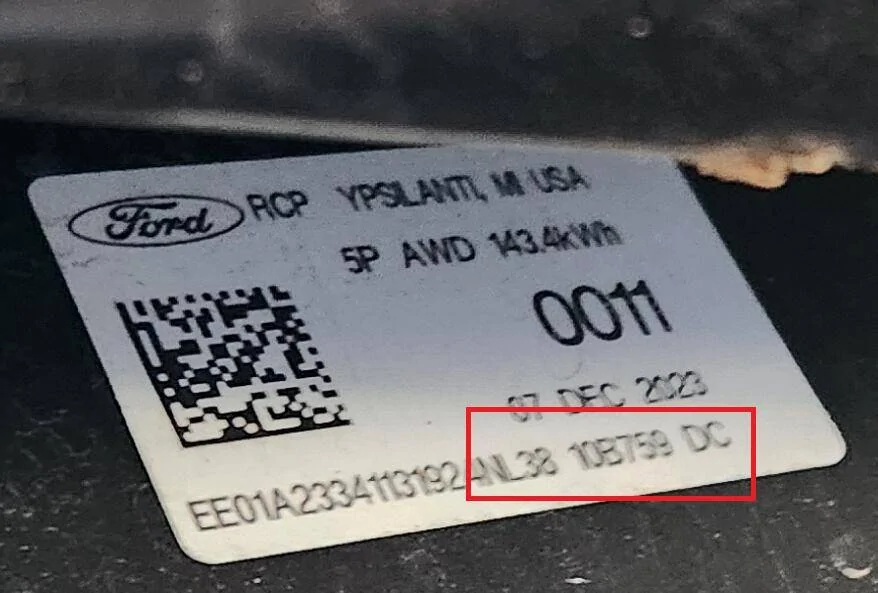

Didn't show under recalls but decided to look under the truck to double check the part number. Looks like I'm safe for now...



[GoodSam]

Looks like I'm safe for now...

"...NL38-10C779-AD, NL38-10C779-BD, and NL38-10C779-CD are the part numbers of the suspect arrays.

Hmm, my battery sticker shows NL38 10B759 CH and i am one of the WINNERs for the recall, so maybe the numbers shown for the recall are inside on the modules themselves?:



[PJnc284]

Possibly. Or there's more than what's listed in the article. Maybe others who have the recall can post theirs to see if any match. To find the above sticker, you can look behind the driver's front tire on the battery pack.
