Have you ever seen your motor or battery temperature gauges move?

Texas Dan

Well-known member
First Name
Daniel
Joined
Jun 9, 2021
Threads
47
Messages
479
Reaction score
472
Location
Texas
Vehicles
'04 Envoy XL 4WD, '15 Fusion Energi, '19 Niro EV
Occupation
Engineer
My gauges always indicate right in middle regardless of how far I've driven, how much and what speed I've charged or what the temperature outside is. The owner's manual really says nothing about these gauges other than they exist. Are these gauges just a placebo designed to make us think we know what the battery and motor temperatures are?

There has been a lot of talk about pre-conditioning the battery pack. How do we even know that the battery pack needs pre-conditioning if the battery temperature gauge does not tell us the battery is cold? Is there a switch or something I didn't turn that will make my gauges work?
Sponsored



TaxmanHog

Moderator
Moderator
First Name
Noel
Joined
Jan 19, 2022
Threads
159
Messages
10,815
Reaction score
11,093
Location
SE. Mass.
Vehicles
2022 Lightning Lariat-ER Max Tow
Occupation
Retired
My gauges always indicate right in middle regardless of how far I've driven, how much and what speed I've charged or what the temperature outside is. The owner's manual really says nothing about these gauges other than they exist. Are these gauges just a placebo designed to make us think we know what the battery and motor temperatures are?

There has been a lot of talk about pre-conditioning the battery pack. How do we even know that the battery pack needs pre-conditioning if the battery temperature gauge does not tell us the battery is cold? Is there a switch or something I didn't turn that will make my gauges work?
If everything is working well on the truck it generally stays smack dab in the middle, more likely the case for folks in the south this time of year.

I've noticed a few screen grabs from folks in the north where the battery temp is showing slightly below midpoint after cold soaking without being plugged in.


GDN

Well-known member
First Name
Greg
Joined
Feb 15, 2022
Threads
83
Messages
2,964
Reaction score
3,480
Location
Dallas, TX
Vehicles
Lightning Lariat ER, Performance Y
Occupation
IT
Only once or twice in the summer after a DCFC charging session I've seen the battery go a bit beyond half way. For the most part they don't move. Truly leads you to believe they don't work as we know that battery temp in the winter start up isn't the same as it is in the middle of summer after driving a few hundred miles.


Phineas Magliozzi

Well-known member
Joined
Dec 21, 2021
Threads
1
Messages
48
Reaction score
79
Location
Bay Area
Vehicles
2023 Lightning XLT, optionless.

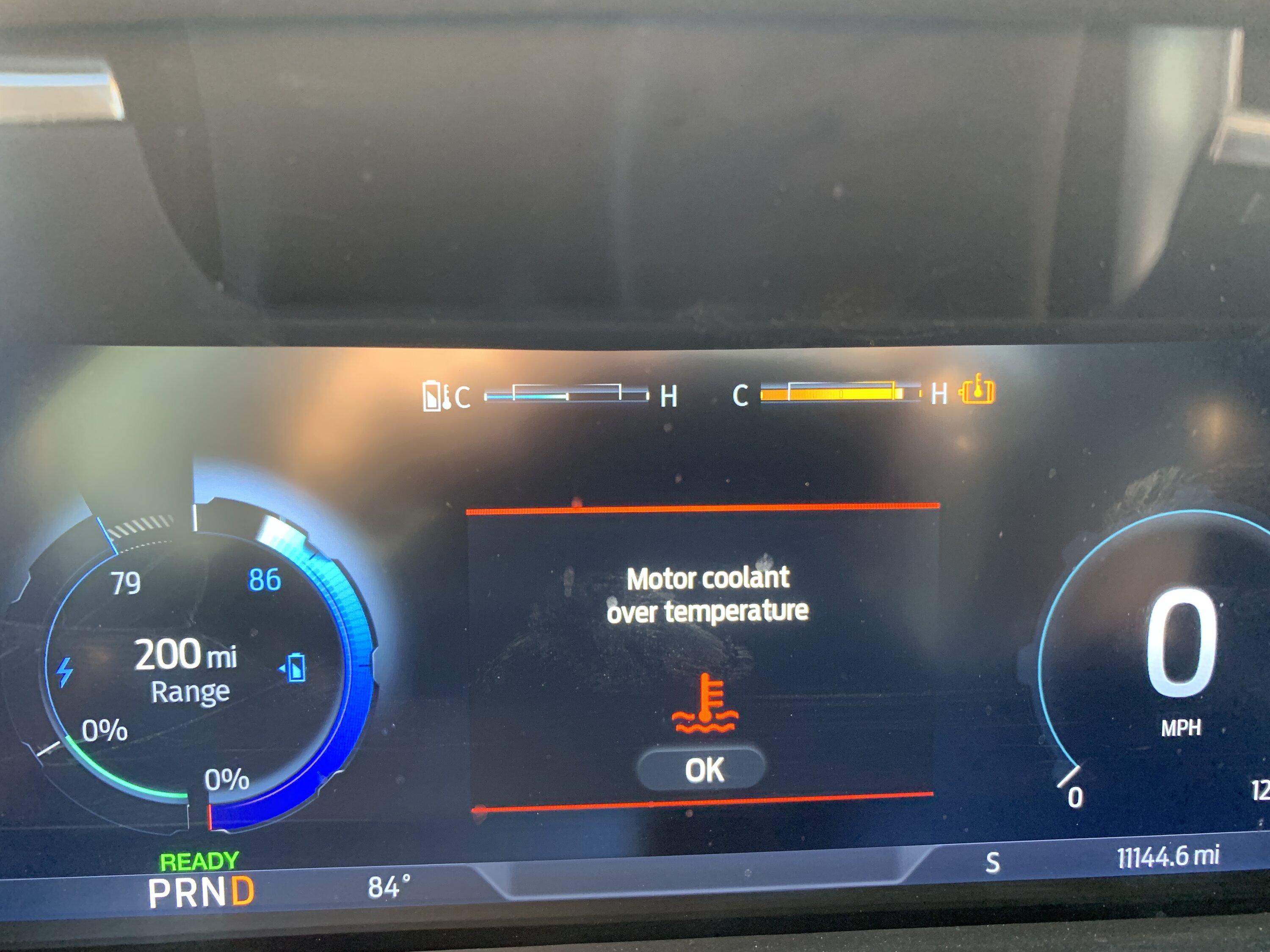

Four days after my previous Lightning was returned to me after a couple of battery module replacements, my motor temperature shot up and initiated the requisite bells and whistles. Back to the dealer it went, evidently it took four days of driving and a couple hundred miles to move a bubble of air through the hydronic system. They topped up the system and everything was fine after that.


Ford F-150 Lightning Have you ever seen your motor or battery temperature gauges move? IMG_8157.JPG


Heliian

Well-known member
Joined
Mar 9, 2023
Threads
3
Messages
842
Reaction score
916
Location
Canada
Vehicles
2023 LR Lariat, code name "Boogaloo"
I can tell you that the gauges work and so does preconditioning.

You will only start to notice it around 5degC and it really shows below 0degC

Once the battery gets cold enough then the available power reduces to 95, 92, 89, 88, 82 percent. At that point you'll see the batt temp gauge below the nominal line.

The motor temp shows low when its cold but that system stabilizes real quick.


Sponsored

Monkey

Well-known member
Joined
Dec 9, 2022
Threads
3
Messages
488
Reaction score
499
Location
Somewhere in the mountains
Vehicles
'23 Lightning, Tesla Model Y, and more...
Occupation
Semi-retired electrical/computer/software engineer
Ì have only seen my temp gauges move a wee bit after being parked for several hours temps well below freezing. Perhaps I’d see more if the truck was not kept in our garage. So I’m not really sure what the point of the gauges is. It would be nice if they were more sensitive or indicative of temps that truly affect range. The truck does a great job in its battery usage graph showing how much is lost to cold weather. It’s not like the data isn’t there.


Lightning Rod

Well-known member
Joined
Nov 27, 2022
Threads
31
Messages
649
Reaction score
463
Location
North Coast
Vehicles
2023 Ford Lightning Lariat ER
Occupation
CNC PROGRAMMER/MACHINIST
The gages work. I was pulling a camper trailer (about 8300 lbs) and I didn't tell the truck that I'd attached a trailer. I drove it about 60 miles until I looked down at the dash cluster (no audible warning :unsure: ) and saw that the battery gage was at about 80-85 percent, and it had an amber color instead of the normal blue.

There's a lot more to the story, but I'll tell it in a full thread, soon.


Ekiehn

Well-known member
First Name
Eric
Joined
Jan 8, 2023
Threads
1
Messages
77
Reaction score
59
Location
34997
Vehicles
F-150 Lightning
Only time for me was in the middle of summer, around 100 something degrees outside, after a long drive and about a 30 minute DCFC charging session... Battery temp went up a pretty good amount.. Got back on the highway and probably about 5 minutes later was back to normal...


queuewho

Well-known member
Joined
Oct 27, 2022
Threads
4
Messages
421
Reaction score
468
Location
Western PA
Vehicles
F150 Lightning Lariat SR
In the home assistant integration that outputs a lot of the numbers behind the gauges, it seems that the coolant temp is bogus and stays at exactly 59.0 F.

The battery temperature data point seems to be real, however, and it moves around a fair bit.


brewski

Well-known member
First Name
John
Joined
Sep 21, 2022
Threads
30
Messages
298
Reaction score
362
Location
GA
Vehicles
2023 F150L Platinum
Occupation
Yes
No. I'm in the south.


Sponsored

brgzls

Member
First Name
Brandon
Joined
Sep 12, 2023
Threads
0
Messages
8
Reaction score
7
Location
Arizona
Vehicles
2021 F-150 Lariat, 2023 F-150 Lightning Lariat
Occupation
USAF
My coolant temp has always stayed the same in the middle since I received my truck but I did have my battery temp almost hit the top when I was towing over 9000lbs in Arizona summer with temps over 120F after DCFC. Did not get a warning but noticed that I was not getting full power throttle midway and looked at the cluster and saw that it was amber. I pulled over safely, turned off the car, waited exactly 1 minute and it went back to normal. Continued trip as nothing had happened and had no problems since. As for normal driving, have not seen any of the gauges move.


ridgebackpilot

Well-known member
First Name
Michael
Joined
Aug 7, 2022
Threads
7
Messages
89
Reaction score
67
Location
Monterey Peninsula, California
Vehicles
2022 Lightning Lariat ER, 2022 Mustang Mach-E GTPE
Occupation
Conservationist
The gages work. I was pulling a camper trailer (about 8300 lbs) and I didn't tell the truck that I'd attached a trailer. I drove it about 60 miles until I looked down at the dash cluster (no audible warning :unsure: ) and saw that the battery gage was at about 80-85 percent, and it had an amber color instead of the normal blue.

There's a lot more to the story, but I'll tell it in a full thread, soon.
At the risk of hijacking the thread, how do you tow a trailer legally without the truck knowing it?

Whenever I plug a trailer into the truck, the Lightning automatically goes into towing mode. Did you disable that system, and if so, why? Or did you just tow the trailer without the lights plugged in?


PreservedSwine

Well-known member
Joined
Aug 5, 2023
Threads
17
Messages
235
Reaction score
286
Location
Fort Myers
Vehicles
2023 Lightning
Gauges on most modern cars are not an accurate representation of the current temp status, although after reading a few replies perhaps the f150 lightning may buck that trend. Most modern temp gauges are nothing more than glorified idiot lights. The electronic t-stat accurately interprets the resistance from the thermistors, but then the gauges are not programmed to go up and down according the the variation in temp- but rather stay in the middle until a pre-programmed threshold is crossed- then the gauge will skyrocket to high.
I understand why manufacturers do this- I’m sure if your neighbors/family members identical car is always reading different than yours- but within manufacturers spec- people will call and ask about it.
There’s usually a simple evaluation tool to see the actual numbers.


cowboys1870

Member
First Name
Alex
Joined
Mar 28, 2023
Threads
1
Messages
12
Reaction score
10
Location
Oklahoma
Vehicles
‘22 Lightning SR XLT
Occupation
Engineer
My battery temp gauge will read just a bit high of center when it’s ~100F, even after being parked for hours, and will remain so until ambient temperatures decrease.

The temp it gets too seems to not be hot enough to trigger cooling.


Wattsgas

Active member
First Name
MIke
Joined
Jan 8, 2022
Threads
3
Messages
36
Reaction score
49
Location
Brinnon, WA
Vehicles
Tesla Model S, Jeep Grand Cherokee, Ford F250
I've wondered about these gauges too. Especially after our Rivian enabled tracking motor and battery temperatures. There seems to be a lot of changes to both. I have seen the Ford gauges move after fast charging. I also saw a little move in the battery temperature when the truck was parked overnight outside in 30 degree weather. But it only went off center about a 1/16 of an inch. I have been wondering if anyone has seen the changes with an auxiliary plug in monitor. The gauge seems to be a little bit more like the idiot lights of the 60s and 70s.
